Description

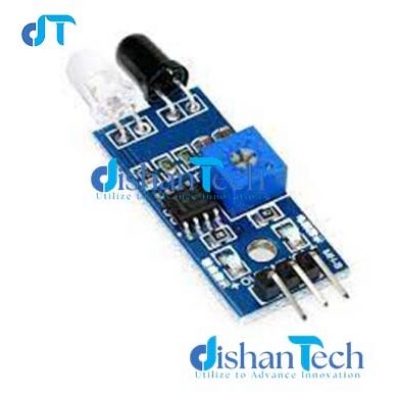

Infrared Obstacle Avoidance IR Sensor Module (Active Low) has a pair of infrared transmitting and receiving tubes. When the transmitted light waves are reflected back, the reflected IR waves will be received by the receiver tube. The onboard comparator circuitry does the processing and the green indicator LED comes to life. Dishan Tech BD.

The module features a 3 wire interface with Vcc, GND, and an OUTPUT pin on its tail. It works fine with 3.3 to 5V levels. Upon hindrance/reflectance, the output pin gives out a digital signal (a low-level signal). The onboard preset helps to fine-tune the range of operation, the effective distance range is 2cm to 80cm. Featured By Dishan Tech BD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Dishan Tech BD.

Connection Diagram:

Features:

1. Easy to assemble and use
2. Onboard detection indication. Dishan Tech BD.
3. The effective distance range of 2cm to 80cm
4. A preset knob to fine-tune distance range
5. If there is an obstacle, the indicator lights on the circuit board.

Dishan Tech BD.

Please allow 5% measuring deviation due to manual measurement.

Dishan Tech BD.

Documentation:

1. Arduino Project

Package Includes :

1 x Infrared Obstacle Avoidance IR Sensor Module (Active Low)

Dishan Tech BD.

What is the price of IR Infrared Obstacle Avoidance Sensor Module in Bangladesh?

The latest price of IR Infrared Obstacle Avoidance Sensor Module in Bangladesh is BDT 79 You can buy the IR Infrared Obstacle Avoidance Sensor Module at best price from our Dishan Tech BD. or visit Dishan Tech BD.
