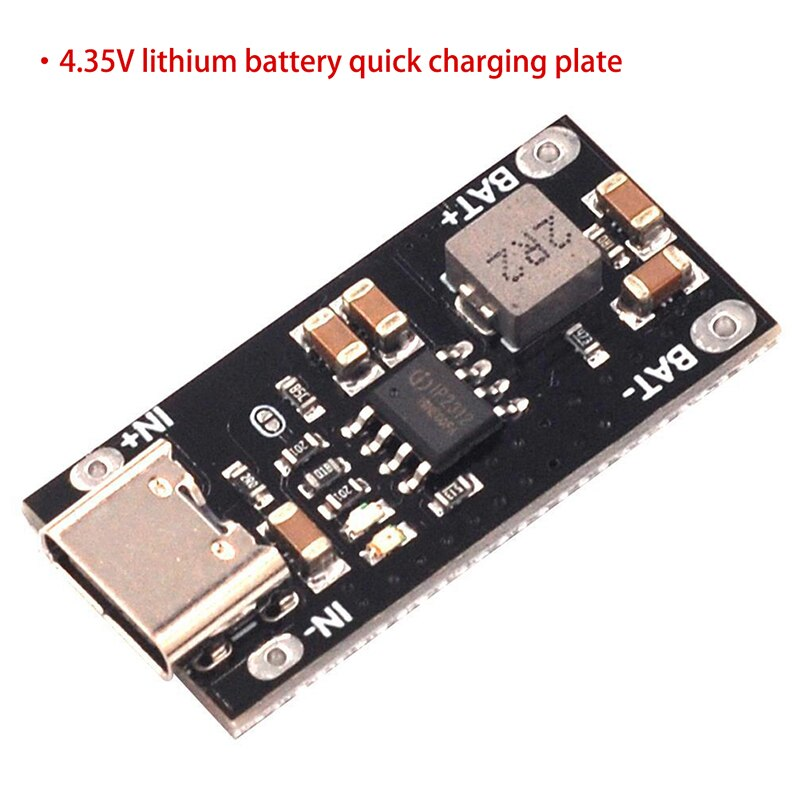

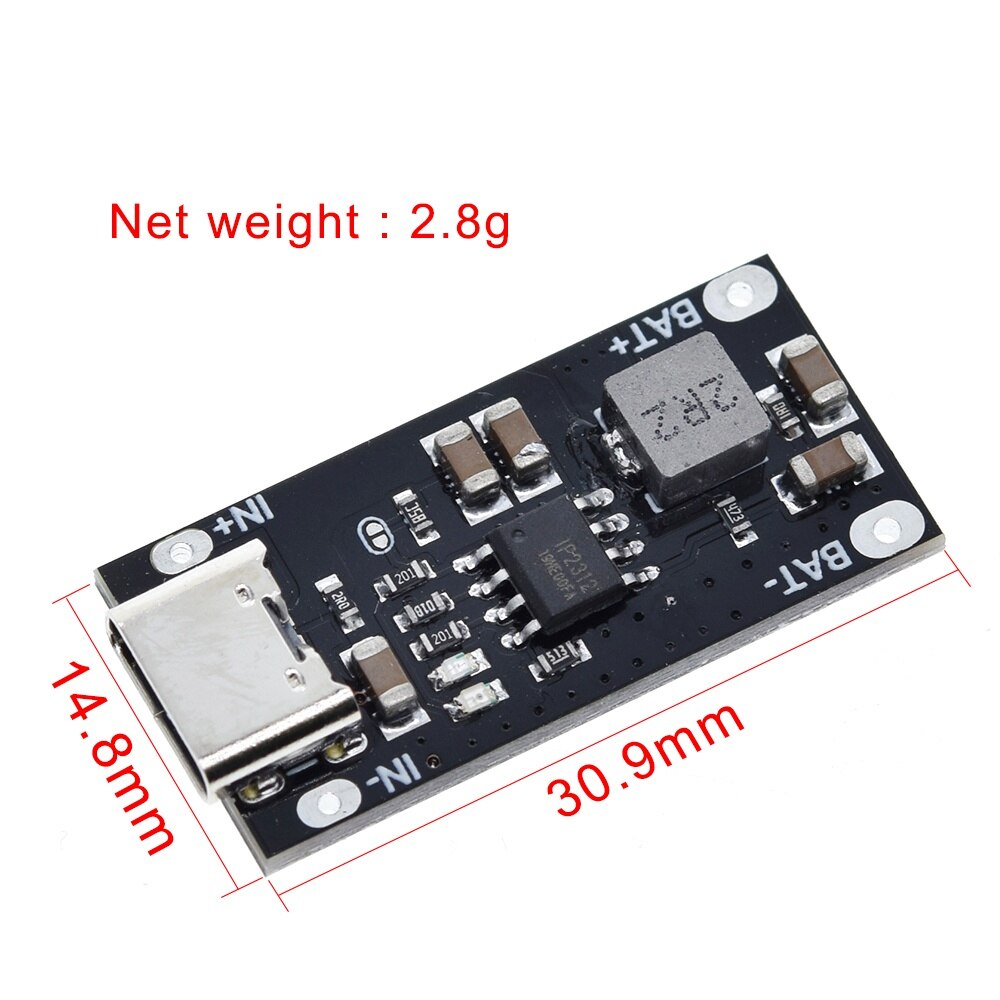

IP2312 Module 3A Type C USB C Input High Current 3A IP2312 Fast Charging Circuit 5V To 4.2V 4.35V Polymer Ternary Lithium Battery Replace TP4056 ETA4096 Module Adapters 3A High Current IP2312 Circuit

• 3A polymer ternary lithium battery fast charging board (Not suitable for 3.2V lithium iron phosphate battery)
• Main control chip: IP2312
• Input voltage: 4.5 to 5.5V

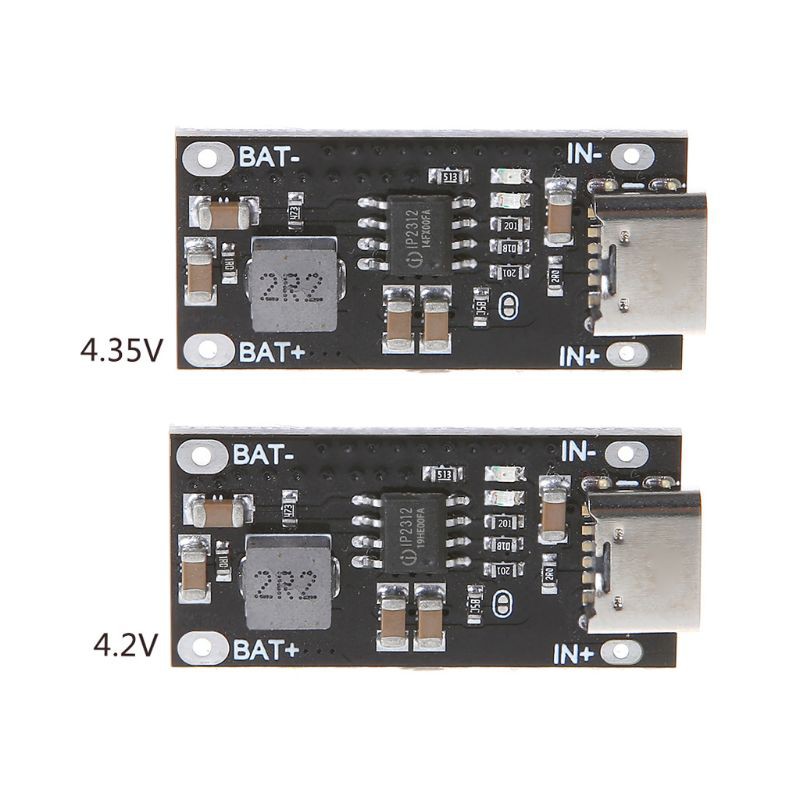

• Charging cut-off voltage: 4.2V/4.35V (the output voltage is available in 2 versions)
• Charging current: 3A (current can be changed by adjusting the resistance)
• Indicator light:
• Red: working indicator
• Blue: full indicator light.
• Note: This product does not have the power indicator function, does not have the battery protection function,
• Conversion efficiency: 3A 93%, 2A 94%, 1A 95% (data for reference only)
• IP2312 adopts a complete CC/CV charging mode.
