Description

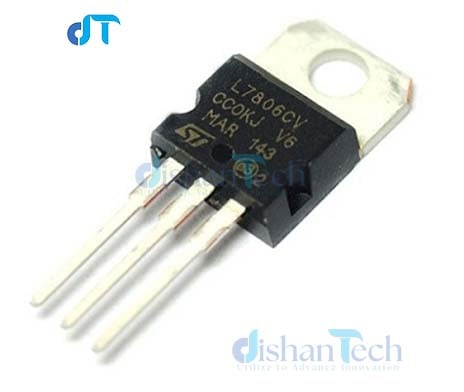

L7806 Voltage Regulator (6V)

3-Terminal 6V Positive Voltage Regulator

L7806/LM7806 Voltage Regulator is a 6V voltage regulator that can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. Each type employs internal current limiting, thermal shutdown, and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Applications: Circuits requiring steady 6V supply.Protection for devices having specific voltage sensitivity.DIY projects require specific voltage from an existing higher/ varying voltage supply.

• Product Category: Linear Voltage Regulators
• Mounting Style: Through Hole
• Package / Case: TO-220
• Number of Outputs: 1 Output
• Polarity: Positive
• Output Voltage: 6 V
• Output Current: 1 A
• Output Type: Fixed
• Input Voltage MAX: 35 V
• Unit Weight: 0.081130 oz
