Description

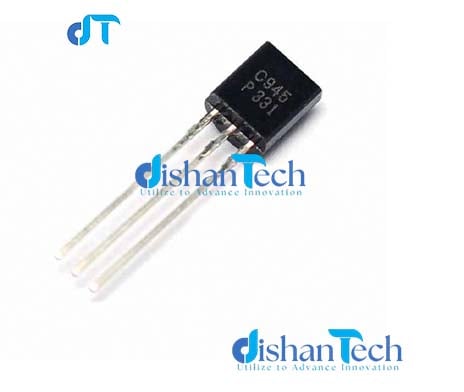

C945 Transistor

FEATURES / TECHNICAL SPECIFICATIONS:

• Package Type: TO-92
• Transistor Type: NPN
• Max Collector Current(IC): 150mA
• Max Collector-Emitter Voltage (VCE): 50V
• Max Collector-Base Voltage (VCB): 60V
• Max Emitter-Base Voltage (VEBO): 5V
• Max Collector Dissipation (Pc): 400 miliWatt
• Max Transition Frequency (fT): 200 MHz
• Minimum & Maximum DC Current Gain (hFE): 70 – 700
• Max Storage & Operating temperature Should Be: -55 to +150 Centigrade

PNP COMPLEMENTARY:

PNP Complementary of C945 is P331
