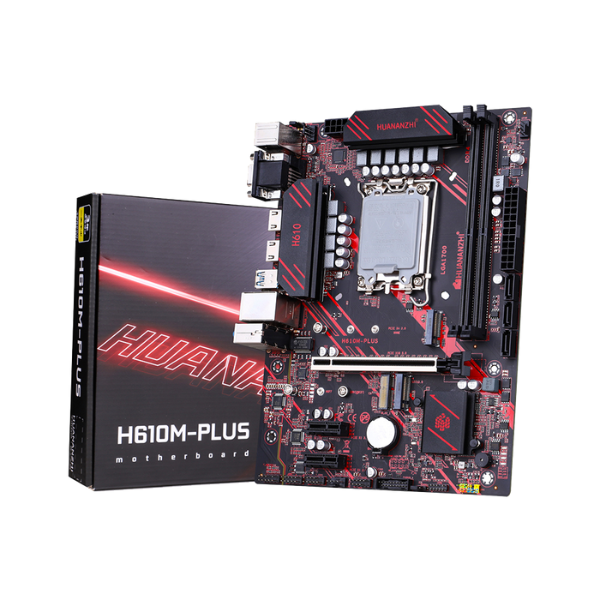

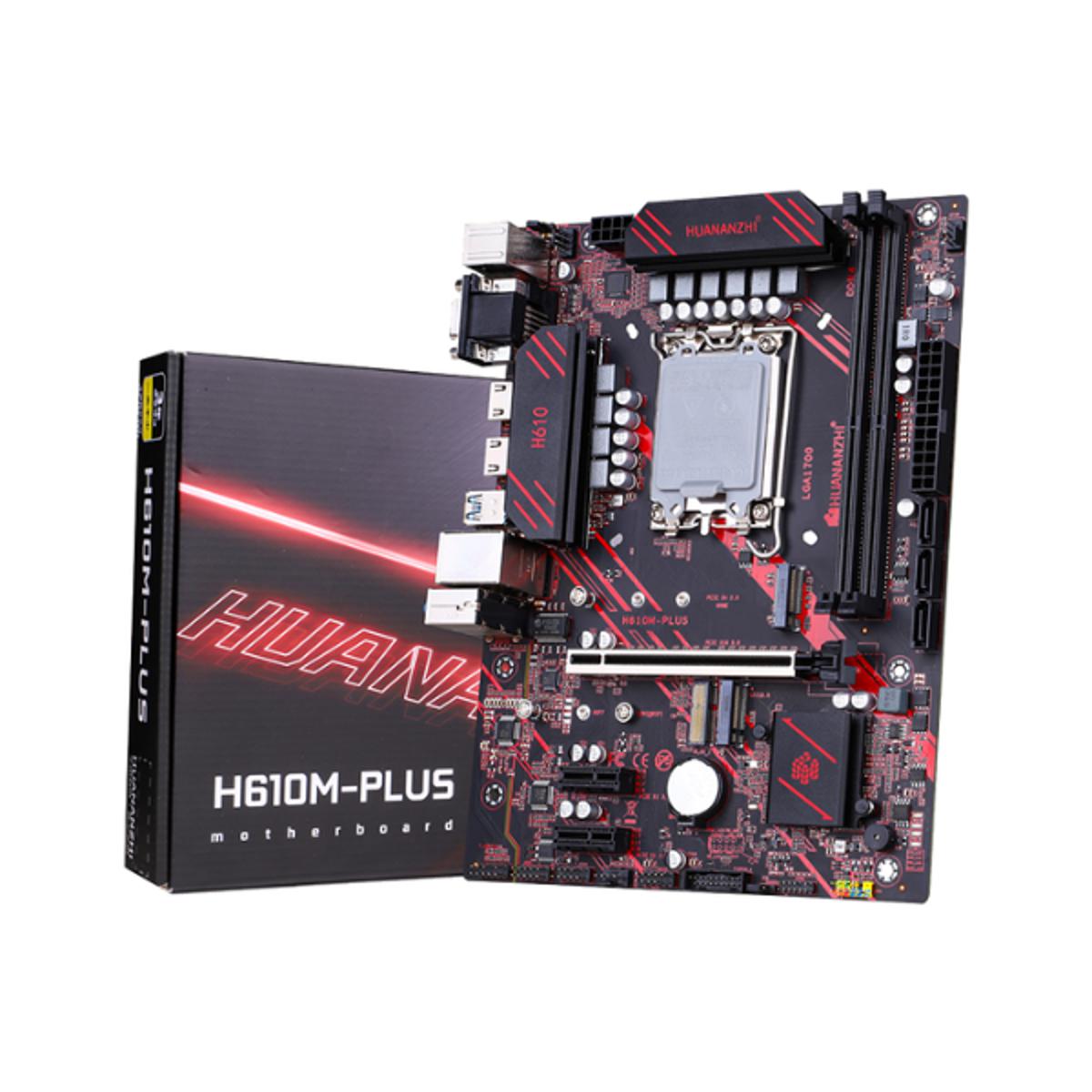

Specification:
Brand: Huananzhi
Model: H610M-PLUS
CPU: Supports Intel 12th & 13th Gen Processor
Main Chipset: Intel H610
CPU Socket: Support Intel LGA1700
Memory Slot: 2 x DDR4 memory slot
Memory Standard: Support 2x DDR4 up to 3200MHz Memory，Max support 64GB
Storage Interface: 3 x SATA 3.0 6Gbps
Expansion Slots: 1 x PCI Express 4.0/5.0x16 ，2 x PCI Express 3.0 x1
Expansion Interface: 1x M.2 2280 NVME PCIE X4 3.0，1x M.2 2280 NGFF SATA 3.0，1x M.2 WIFI (Support NGFF/CNVI)
Sound Track: Realtek High Fidelity Audio
Network Card: Realtek Gigabit network card RTL8111K
Power Interface: 24PIN+8PIN
FAN PIN: 1xCPU_FAN PIN，2xSYS_FAN PIN
Power Supply: 10-phase power supply
PCB Layers: 6-layer PCB
Rear Panel Interface: 1 x PS/2 Mouse and Keyboard port，2x USB3.2Gen1 interface，4x USB2.0 interface，1x RJnetwork interface，1x 3-hole audio interface，1x VGA+2x HDMI2.0
Front Panel Interface: 1xUSB2.0 PIN，1xUSB3.2 PIN，1xFront audio PIN，1xCOM PIN，1xDebug PIN，1xTPM 2.0，1xMain board buzzer，1xPower on/restart pin，1xDebug indicator
BIOS: AMI UEFI BIOS
Form Factor: mATX
Dimension: 240 x 180mm
Warranty: 3 Years

Warranty: 3 Years warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
