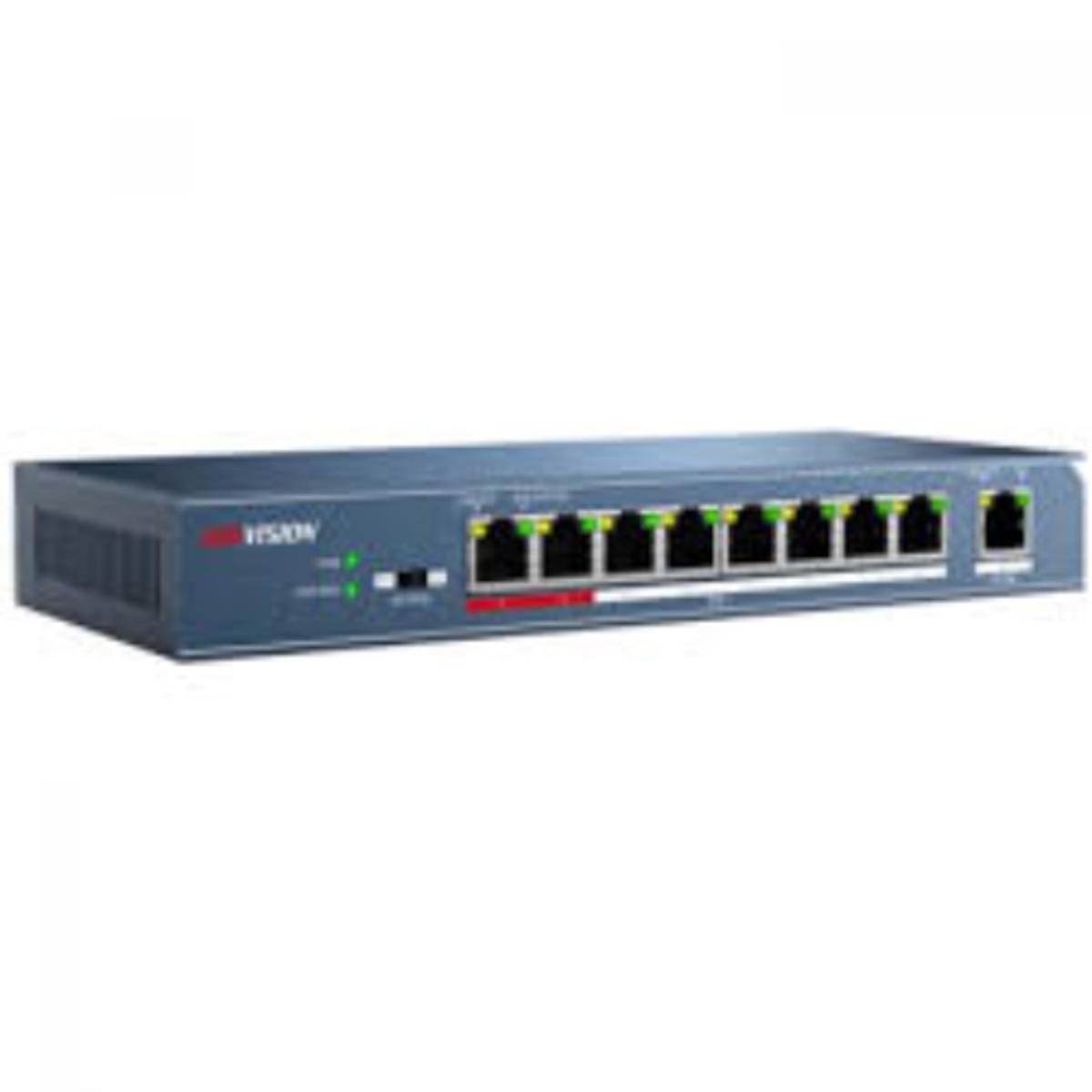

Hikvision Ds-3E0109P-E/M Fast 8 Port Ethernet Poe Switch - Onu( Blue )

Category: Electrical Accessories
SKU: JACO713531
Seller: Janani Computers
App Coupon to Get Extra Discount
Tk 6,700
0 review(s)

Key Point

  • 8 x 100M PoE ports and 1 x 100M Ethernet port
  • Supports IEEE802.3at/af & IEEE 802.3, IEEE 802.3u and IEEE 802.3x
  • Up to 250 m transmission distance
  • PoE port with 6 KV surge protection
  • 100M network access
  • 1 year official brand Warranty
  • #Onu

Call For Order : 09613-800800

Specification

Brand: HIKVISION
Model:DS-3E0109P-E/M
10/100M RJ45: 9
Port of high priority:Port 1 – 2
Switching Capacity:1.8 Gbps
Store-and-forward: Supported
MAC address table: 4k
MAC address learning: Auto-learning/ Auto-aging
PoE Standard:IEEE 802.3af, IEEE802.3at
Working Mode: Extend off, Extend on
PoE cable core:Supports 8-pin power supply
PoE port:1– 8
Port max. power:30 W
Switch max. power:58 W
Power Supply:51 V DC，1.25 A
Power Consumption:≤63w
Working Temperature: Operating Temperature: 0 °C ~ 40 °C
Working Humidity: Operating Humidity: 10% – 90% RH non-condensing
Storage Temperature: -40 °C ~ 70 °C
Storage Humidity: 5% – 90% RH non-condensing
Warranty:1 year





Key Point

  • 8 x 100M PoE ports and 1 x 100M Ethernet port
  • Supports IEEE802.3at/af & IEEE 802.3, IEEE 802.3u and IEEE 802.3x
  • Up to 250 m transmission distance
  • PoE port with 6 KV surge protection
  • 100M network access
  • 1 year official brand Warranty
  • #Onu

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
