High Quality 5V-28V 12V 24V 5A PWM DC Motor Speed Control Switch Controller Volt Regulator LED Dimmer Tool Professional - dc motor (Multicolor)

Category: Electrical Accessories
SKU: PONS841947
Seller: Ponno shopping
Tk 67
Tk 120
Tk 120
44% OFF
0 review(s)

Call For Order : 09613-800800
  • 1.Input voltage: DC 2.5V-Vout
  • 2.Fixed Output voltage: 12VCan set the DC 5V/8V/9V output
  • Output capacity:input 3.7V battery, output 5V 1A, 8V 0.5A, 9V 0.45A, 12V 0.3A
  • Input 5V, output 8V 0.7A, 9V 0.7A, 12V 0.5AThe output voltage can be set to 5V/8V/9V/12V, the default is 12V.

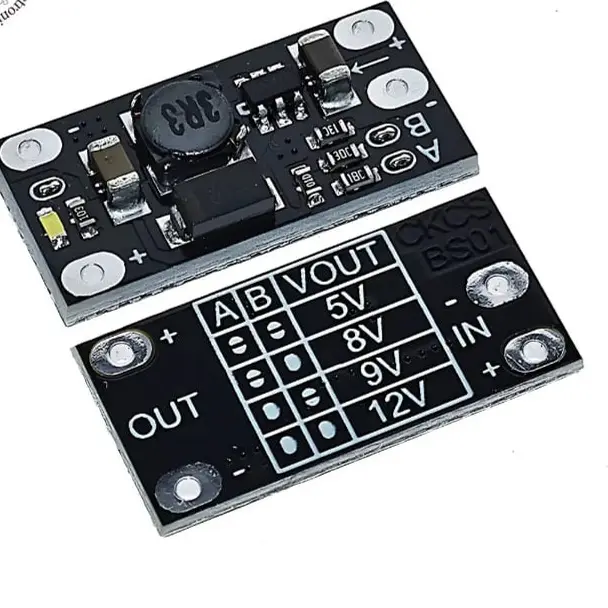

  • Input voltage range: 2.5V~5VOUT. The input voltage must be lower than the set output voltage.Output capability: When inputting 3.7V lithium battery, it can output 5V1A, 8V0.5A, 9V0.45A, 12V0.3A;When inputting at 5V, it can output 8V0.7A, 9V0.7A, 12V0.5A.When the default 12V output, the LED indicator consumes about 1mA.If the indicator is turned off, the input current is <1mA at no load.Voltage setting description:The front side of the PCB can be seen with the words A and B. Use the soldering iron to change the pad pass next to the character.The output voltage can be changed by breaking. In the following table, 0 indicates that the pad is disconnected, and 1 indicates that the pad is connected.
  • The pad next to the LED indicator can also be turned off to turn off the indicator.
