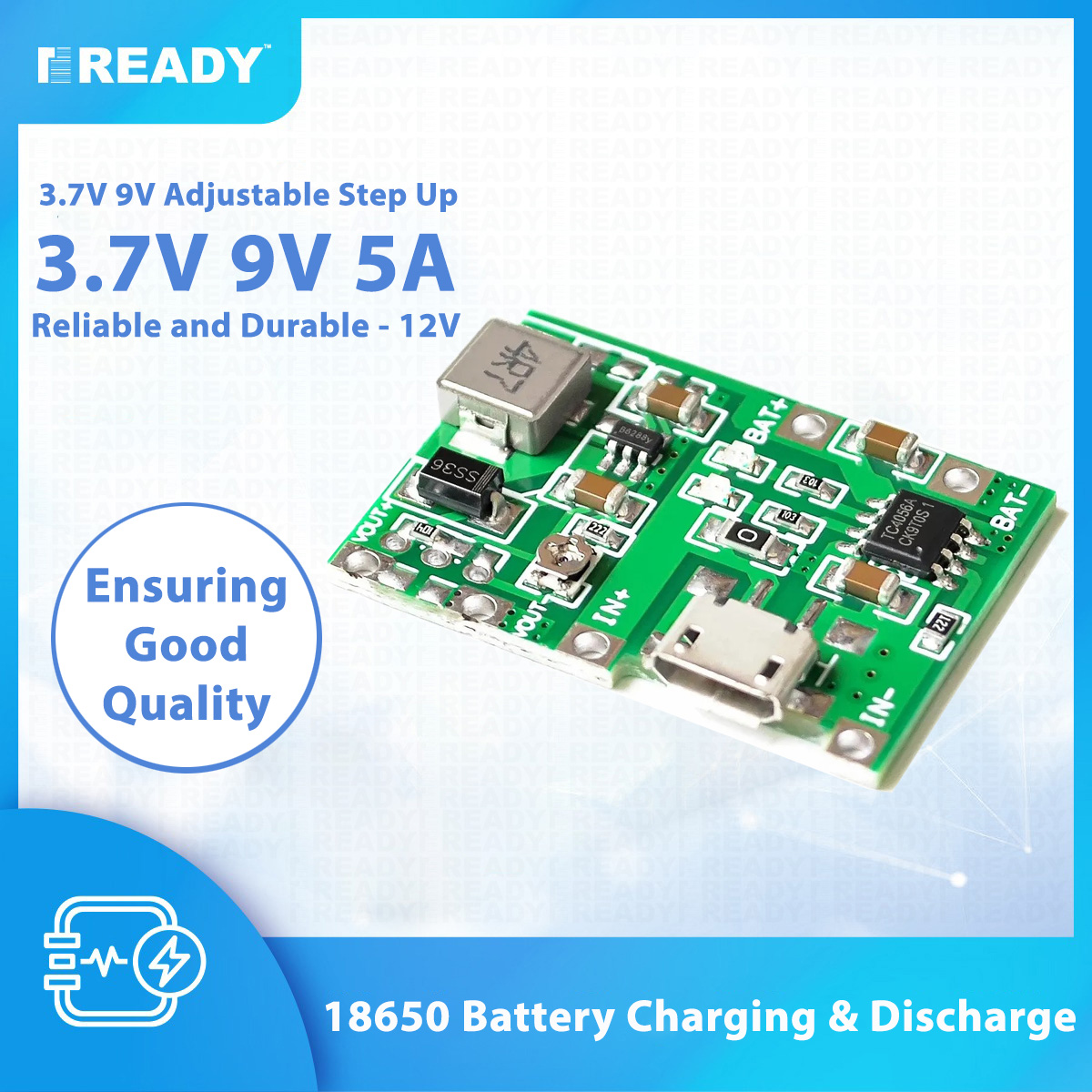

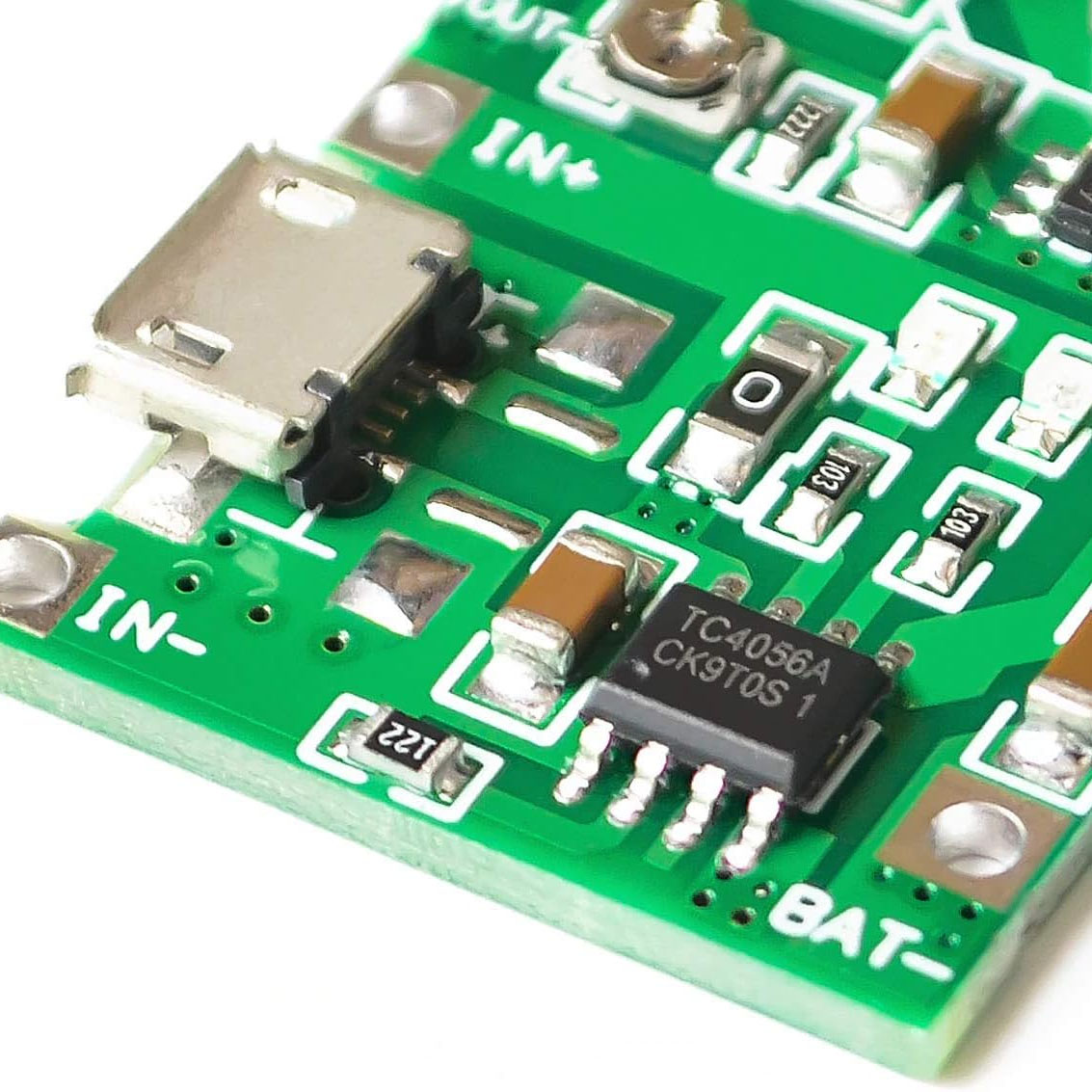

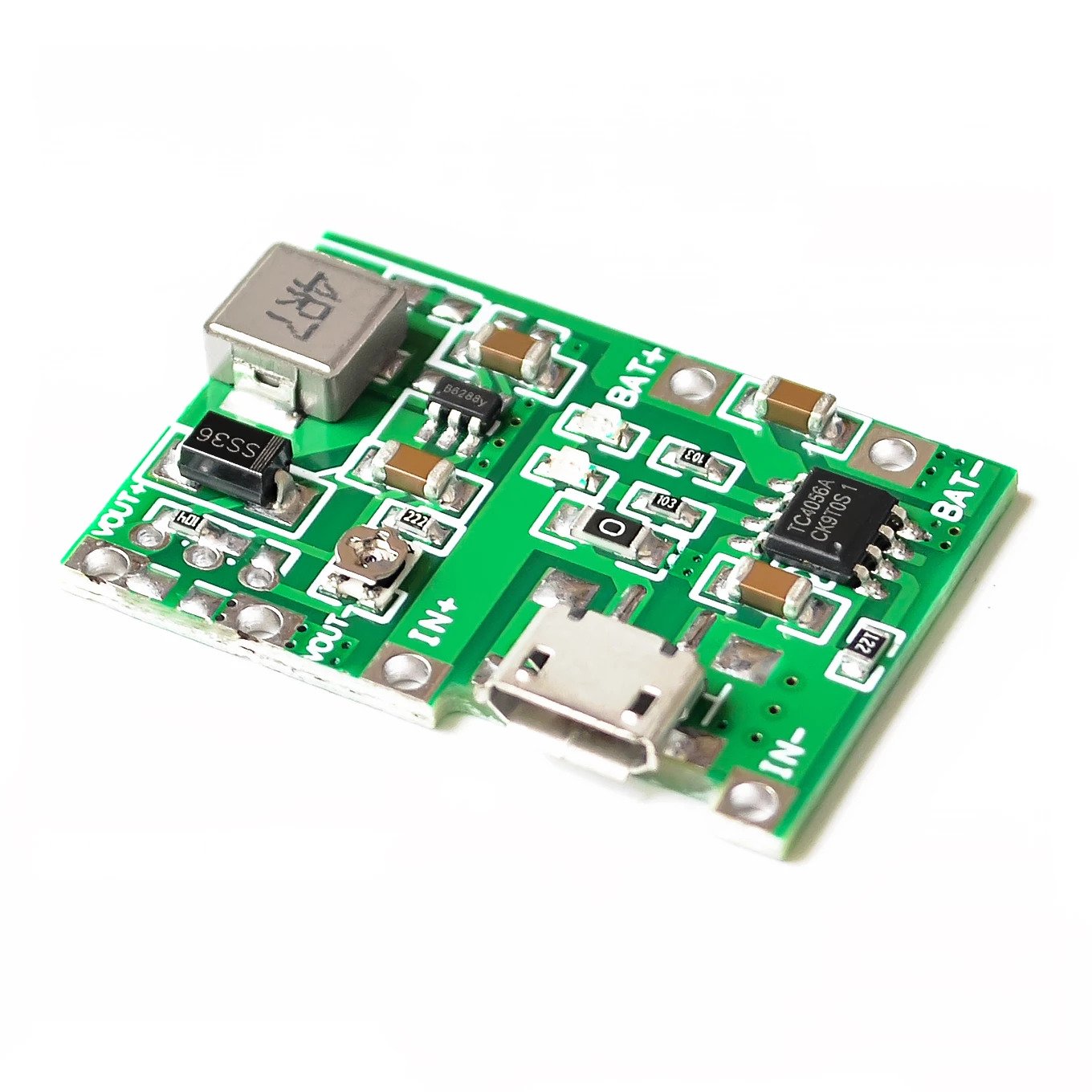

High Quality - 3.7V 9V 5A Adjustable Step Up 18650 Lithium Battery Charging and Discharge Integrated Module - Reliable and Durable - battery 12v

Category:
SKU: RDE01825
Seller: READY ELECTRONICS
Tk 90
Tk 199
Tk 199
55% OFF
0 review(s)
  • Input voltage: 4.5-8V
  • Output voltage: continuous adjustable 4.3-27V (Counter clockwise to boost voltage)
  • Charging voltage: 4.2V
  • Charging current: up to 1A
  • Discharge current: the maximum 2A
  • Output reference maximum current: 5V 1.4A, 9V 0.8A, 12V 0.6A
  • Quiescent current: about 0.5 mA
  • Overshoot protection: Yes
  • Over discharge protection: None (also can be said yes, because 2V cut-off boost but does not block the output, output has 2V)
  • Deadline boost:: 2V, depending on whether added the additional protection board

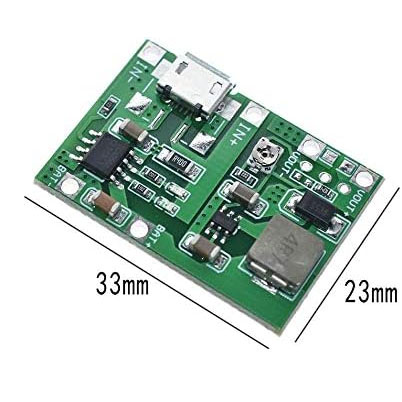

  • Size: 3.3 x 2.3 x 0.9cm

Call For Order : 09613-800800
  • 3.7V 9V 5V 2A Adjustable Step Up 18650 Lithium Battery Charging & Discharge Integrated Module
  • Input voltage: 4.5-8V
  • Output voltage: continuous adjustable 4.3-27V (Counter clockwise to boost voltage)
  • Charging voltage: 4.2V
  • Charging current: up to 1A
  • Discharge current: the maximum 2A
  • Output reference maximum current: 5V 1.4A, 9V 0.8A, 12V 0.6A
  • Quiescent current: about 0.5 mA
  • Overshoot protection: Yes
  • Over discharge protection: None (also can be said yes, because 2V cut-off boost but does not block the output, output has 2V)
  • Deadline boost:: 2V, depending on whether added the additional protection board
  • Size: 3.3 x 2.3 x 0.9cm





  • Input voltage: 4.5-8V
  • Output voltage: continuous adjustable 4.3-27V (Counter clockwise to boost voltage)
  • Charging voltage: 4.2V
  • Charging current: up to 1A
  • Discharge current: the maximum 2A
  • Output reference maximum current: 5V 1.4A, 9V 0.8A, 12V 0.6A
  • Quiescent current: about 0.5 mA
  • Overshoot protection: Yes
  • Over discharge protection: None (also can be said yes, because 2V cut-off boost but does not block the output, output has 2V)
  • Deadline boost:: 2V, depending on whether added the additional protection board
  • Size: 3.3 x 2.3 x 0.9cm
