Brand: Gigabyte

Series: Z690

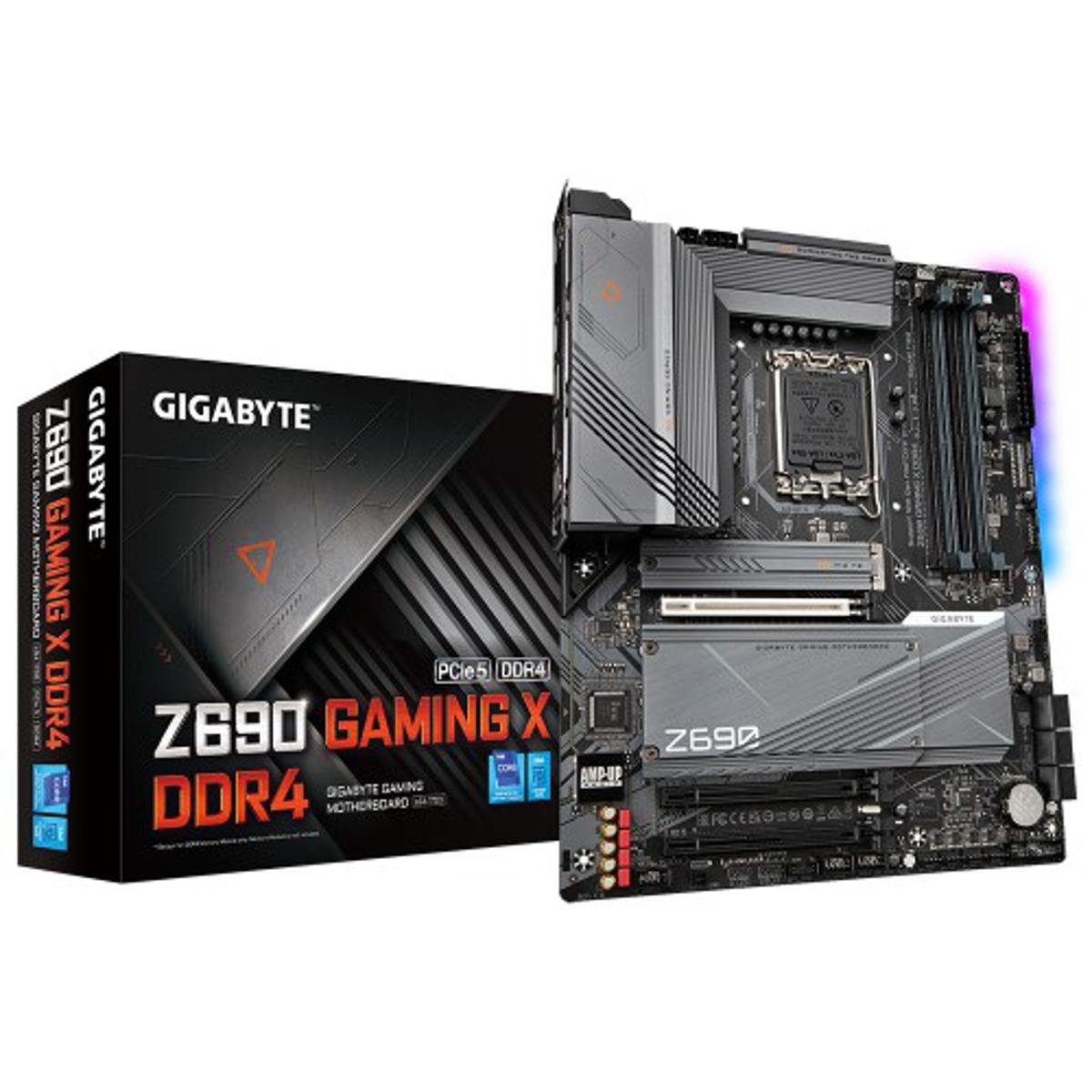

Model: Z690 GAMING X DDR4

Chipset: Intel Z690 Express Chipset

Memory Channels: Dual

Max Memory: 128 GB

Memory slots: 4 x DDR DIMM sockets

Supported Memory: UP to DDR4 5333 MHz memory modules

Bios: 1 x 256 Mbit flash

CPU: LGA1700 socket

Audio: Realtek ALC1220-VB CODEC, High Definition Audio, 2-channel analog output, Support for S/PDIF Out, 7.1-channel digital signals

Graphics: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16), 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

USB Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support

1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Ports & Connectors :

1 24-pin ATX main power connector

1 8-pin ATX 12V power connector

1 4-pin ATX 12V power connector

1 CPU fan header

1 water cooling CPU fan header

3 system fan headers

1 system fan/water cooling pump header

2 addressable LED strip headers

2 RGB LED strip headers

4 M.2 Socket 3 connectors

6 SATA 6Gb/s connectors

1 front panel header

1 front panel audio header

1 USB Type-C header, with USB 3.2 Gen 2 support

1 USB 3.2 Gen 1 header

2 USB 2.0/1.1 headers

2 Thunderbolt add-in card connectors

1 Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 reset button

1 reset jumper

1 Q-Flash Plus button

1 Clear CMOS jumper

Back Panel Connectors:

1 USB Type-C port, with USB 3.2 Gen 2x2 support

2 USB 3.2 Gen 2 Type-A ports (red)

3 USB 3.2 Gen 1 ports

4 USB 2.0/1.1 ports

1 HDMI port

1 DisplayPort

1 RJ-45 port

1 optical S/PDIF Out connector

2 audio jacks

I/O Controller: iTE I/O Controller Chip

Supported Storage :

CPU: 1 x M.2 connector

Chipset: 2 x M.2 connector

1 x M.2 connector

6 x SATA 6Gb/s connectors

LAN: Realtek 2.5GbE LAN chip 2.5 Gbps/1 Gbps/100 Mbps

Form Factor : ATX Form Factor 30.5cm x 24.4cm

Warranty: 3 Years
