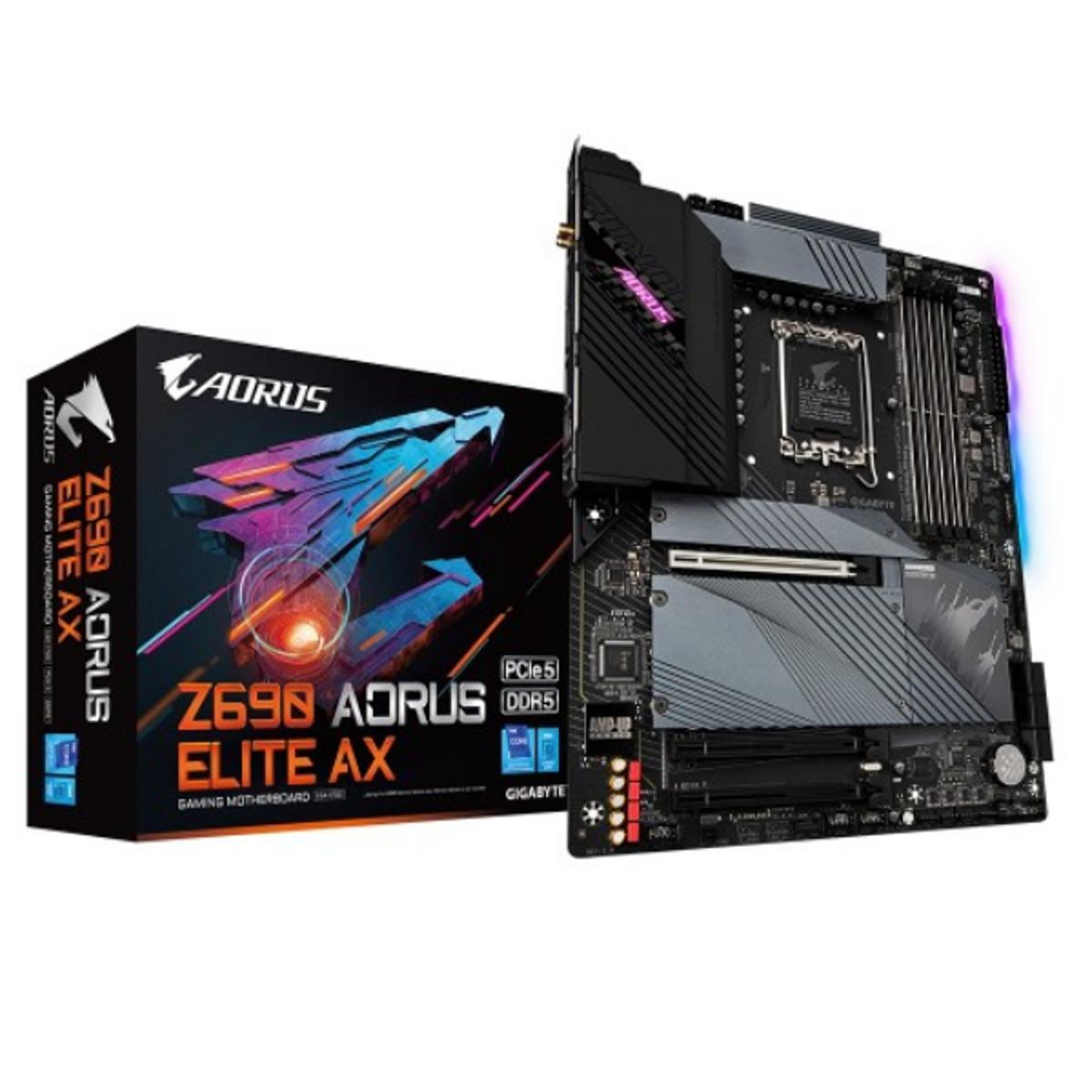

Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi Gaming Motherboard

Name: Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi Gaming Motherboard
SKU: JACO713316
Price: 32999.00 BDT
Availability: InStock

Category: Computers, Components & Accessories

SKU: JACO713316

Seller: Janani Computers

App Coupon to Get Extra Discount

Tk 32,999

0 review(s)

Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi Gaming Motherboard

Supports 12th Gen Intel Core Series Processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
16*+1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS and Tantalum Polymer Capacitor
DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing

Call For Order : 09613-800800

SPECIFICATIONS

Brand : Gigabyte
Series : AORUS
Model : Z690 AORUS ELITE AX
Chipset : Intel Z690 Express Chipset
Memory Channels : DDR5
Max Memory : 128 GB
Memory slots : 4 x DDR DIMM sockets
Supported Memory : Support for DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000 MHz memory modules, ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Extreme Memory Profile (XMP) memory modules
BIOS : 1 x 256 Mbit flash
Supported CPU : LGA1700 socket support for 12th Generation Intel Core, Pentium Gold and Celeron Processors, L3 cache varies with CPU
Graphics : Integrated Graphics Processor
USB Chipset : 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support , Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel , Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Ports & Connectors :
1 x 24-pin ATX main power connector , 1 x 8-pin ATX 12V power connector , 1 x 4-pin ATX 12V power connector
1 CPU Fan header , 1 water Cooling CPU Fan Header , 4 system fan headers , 2 system fan/water cooling pump headers
2 addressable LED strip headers , 2 RGB LED strip headers
4 M.2 Socket 3 connectors
6 SATA 6Gb/s connectors
1 front panel header
1 USB Type-C header, with USB 3.2 Gen 2x2 support
1 USB 3.2 Gen 1 header
2 USB 2.0/1.1 headers
1 noise detection header
2 Thunderbolt add-in card connectors
1 serial port header
1 Q-Flash Plus button
1 reset button , 1 reset jumper
2 temperature sensor headers
1 Clear CMOS jumper
Back Panel Connectors:
2 USB 2.0/1.1 ports
2 SMA antenna connectors (2T2R)
4 USB 3.2 Gen 1 ports
1 DisplayPort In port
1 HDMI port
2 USB 3.2 Gen 2 Type-A ports (red)
1 USB Type-C port, with USB 3.2 Gen 2x2 support
1 USB Type-C port, with USB 3.2 Gen 1 support
1 RJ-45 port
1 optical S/PDIF Out connector
2 audio jacks
I/O Controller: iTE I/O Controller Chip
Supported Storage :
CPU: 1 x M.2 connector
Chipset: 2 x M.2 connectors , 1 x M.2 connector , 6 x SATA 6Gb/s connectors
LAN: Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Form Factor : ATX Form Factor (30.5cm x 24.4cm)
WiFi: Wifi a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
Bluetooth: BLUETOOTH 5.2
Warranty: 3 years

Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi Gaming Motherboard

Supports 12th Gen Intel Core Series Processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
16*+1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS and Tantalum Polymer Capacitor
DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing

Warranty: 3 Years warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
