Specifications:

Brand: Gigabyte

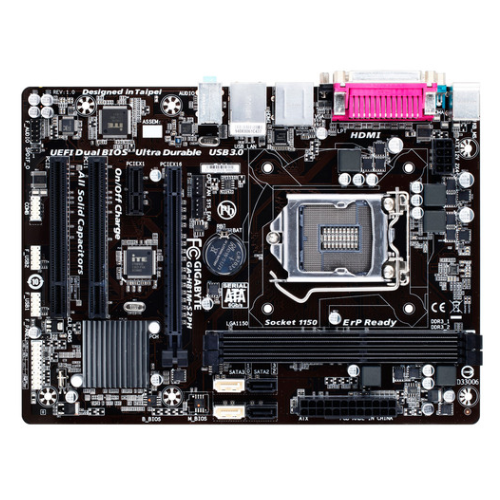

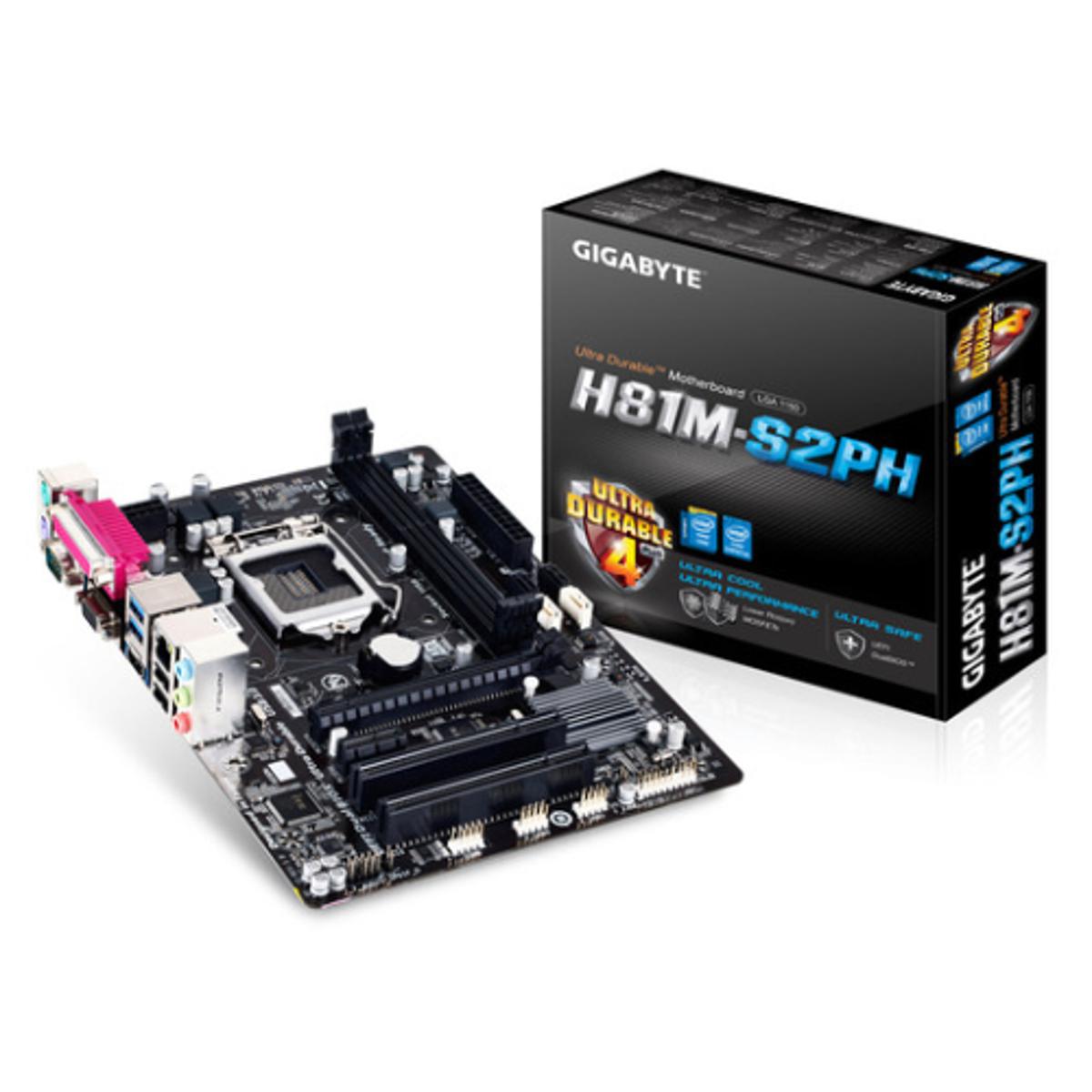

Model: Gigabyte GA-H81M-S2PH

CPU:- Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
- L3 cache varies with CPU

Chipset: Intel® H81 Express Chipset

Memory: - 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system
memory (Due to a Windows 32-bit operating system limitation, when more than 4 GB
of physical memory is installed, the actual memory size displayed will be less
than the size of the physical memory installed.)
- Dual channel memory architecture
- Support for DDR3 1600/1333 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics:
- maximum resolution of 1920x12001 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560x 1600 @ 60 Hz (Support for HDMI 1.4a version).Maximum shared memory of 1 GB

Audio:
- driver).
- Support for S/PDIF Out

LAN: Realtek GbE LAN
chip (10/100/1000 Mbit)

Expansion Slots:
- 1 x PCI Express x16 slot, running at x16
- 1 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 2.0 standard.)
- 2 x PCI slots

Storage Interface:
- Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices

USB:
- Chipset:Up to 2 USB 3.0/2.0 ports on the back panelUp to 6 USB 2.0/1.1 ports (2 ports on
the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors:- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 2 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 2 x USB 2.0/1.1 header
- 1 x serial port header
- 1 x Clear CMOS jumper

Back Panel Connectors:- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x parallel port
- 1 x serial port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller: iTE® I/O Controller Chip

H/W Monitoring:
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control (Whether the fan speed control function is
supported will depend on the cooler you install)

BIOS:
- 2 x 64 Mbit flash
- Use of licensed AMI EFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
- SetupUSB Blocker
- Support for ON/OFF Charge

Bundled Software: Norton® Internet Security (OEM version)

Operating System: Support for Windows 10/8.1/8/7

Form Factor: Micro ATX Form Factor; 24.4cm x 18.0cm

Warranty: 3 Years Official Warranty
