Brand: Gigabyte
Model: H610M S2H DDR4
CPU: Support for 13th & 12th Generation Processors
Chipset: Intel H610 Express Chipset
Memory:
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64GB
Onboard Graphics:
Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Audio:
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN: Intel GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots:
1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
Storage Interface:
Chipset:
1 x M.2 connector
4 x SATA 6Gb/s connectors
USB:
Chipset:
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI 2.0 port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Operating System:
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor: Micro ATX Form Factor; 23.0cm x 21.5cm
Warranty: 3 Years

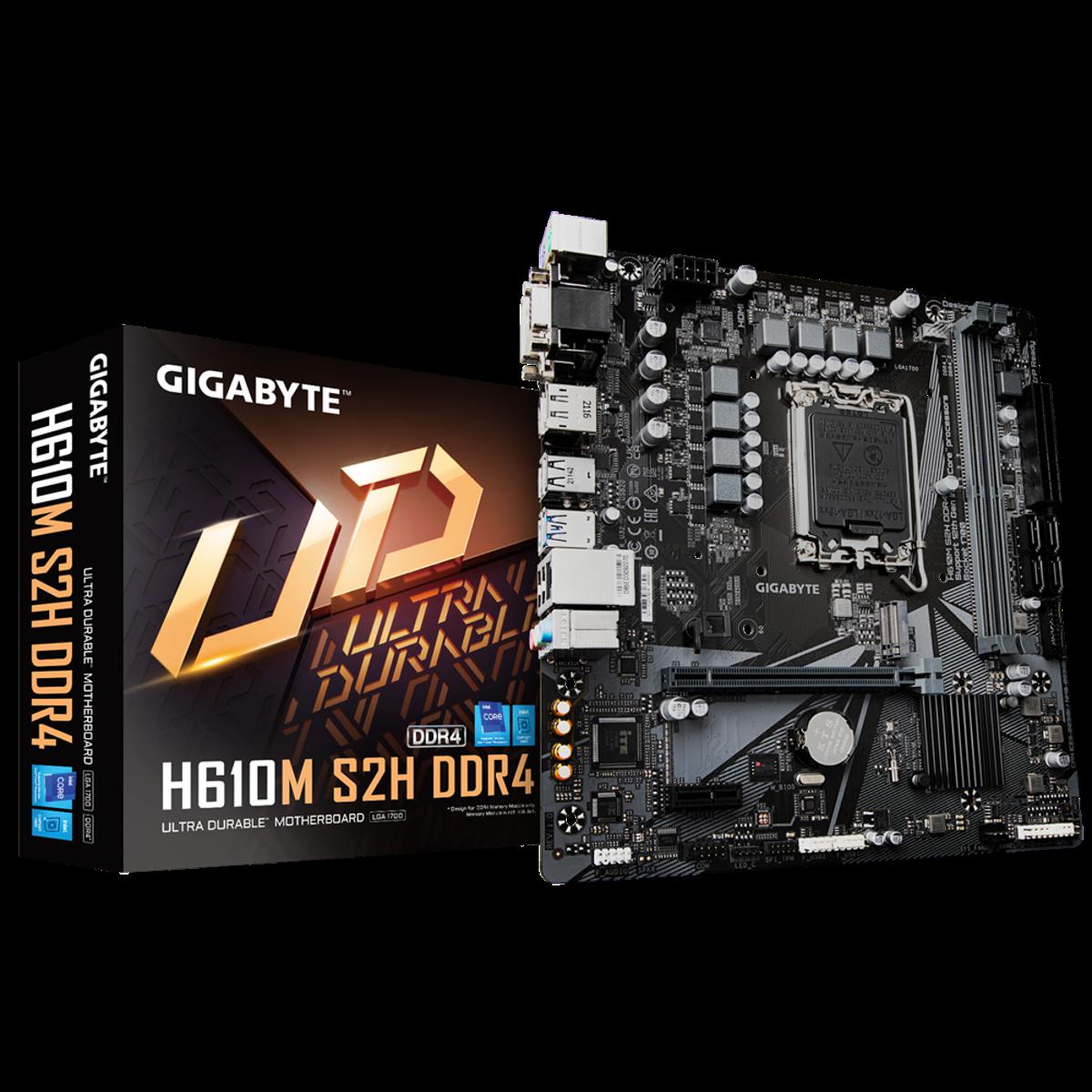

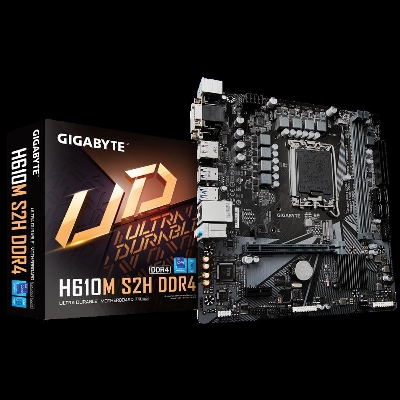

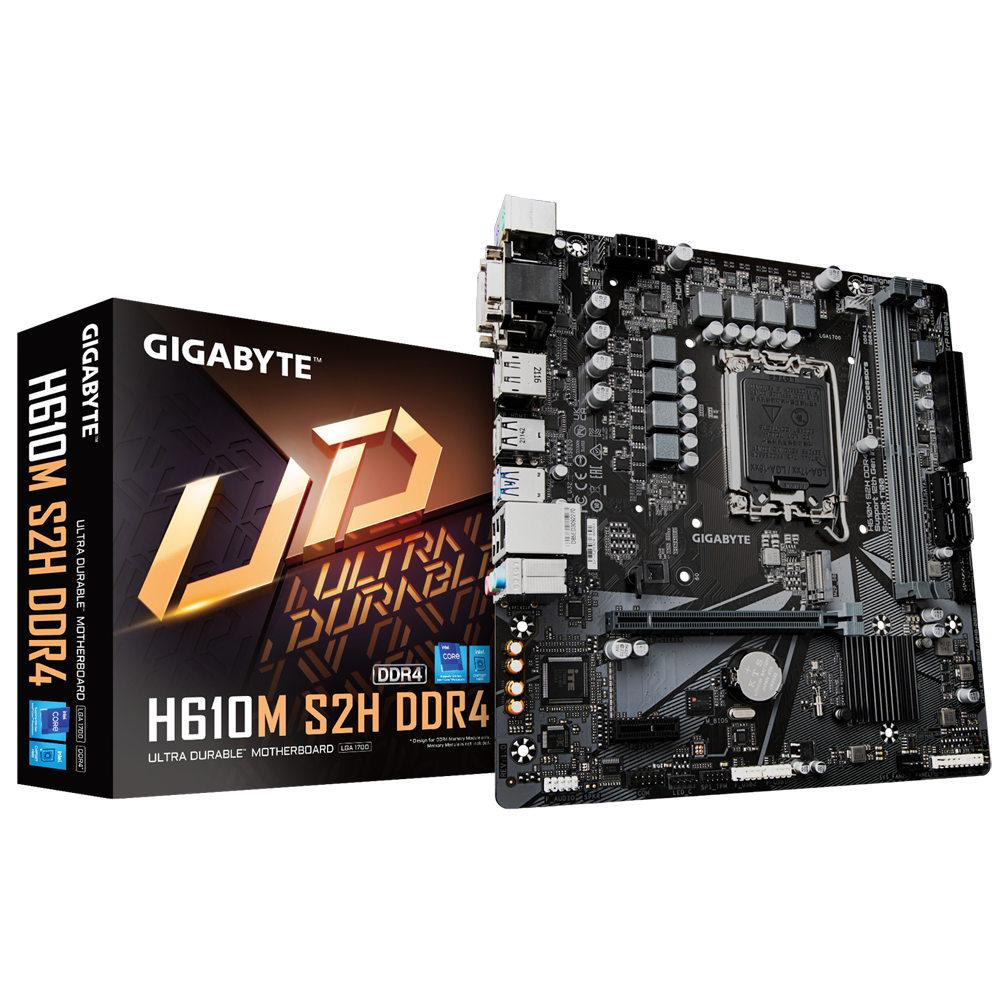

Gigabyte H610M S2H DDR4 Intel 12th Generation Motherboard

Support for the 13th and 12th Generation Core Processors
2 x DDR4 3200 DIMM sockets supporting up to 64GB
Intel GbE LAN chip
Realtek Audio CODEC
3 Years Brand Warranty

Warranty: 3 Years warranty.
