Specifications:
Brand: Gigabyte
Model: GP-UD1000GM
Type: Intel Form Factor ATX 12V v2.31
PFC: Active PFC (>0.9 typical)
Input Voltage: 100-240 Vac (full range)
Input Current: 15-6.5A
Input Frequency: 60-50 Hz
Output Capacity: 1000W
Fan Type: 120mm Hydraulic Bearing(HYB)fan
80 PLUS: Gold
Efficiency: 90% at typical load
MTBF: >100,000 hours
Protection: OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal: 100-150ms
Hold Up Time: >16ms
Cable Type: Flat, All black
Connectors:
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 6 : 600mm+150mm*3
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
Dimension: 150 x 140 x86 mm
Warranty: 3 Years

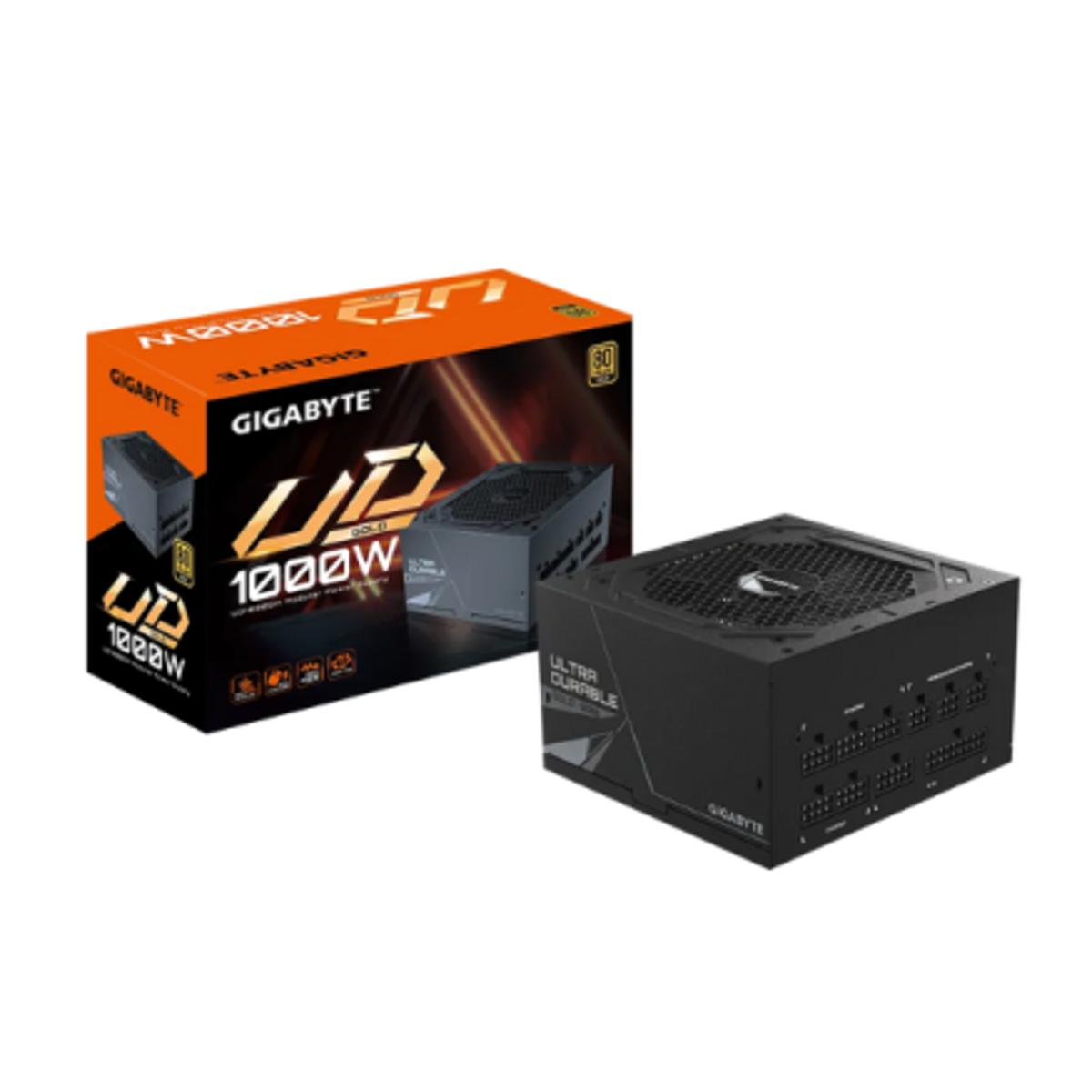

Gigabyte GP-UD1000GM 100W 80 Plus Gold Power Supply

• 80 PLUS Gold Certified
• Fully Modular Design
• 1000 WATT Maximum Power
• 120mm smart hydraulic bearing (HYB) fan
• 3 Years Warranty

Warranty: 3 Years warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
