Brand: Gigabyte

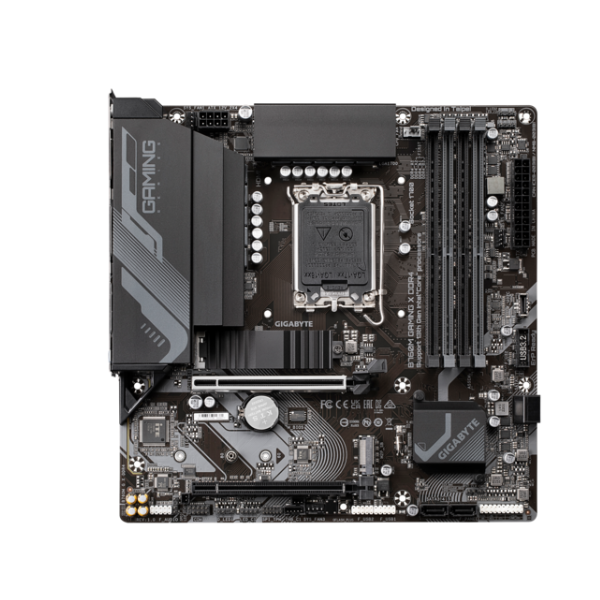

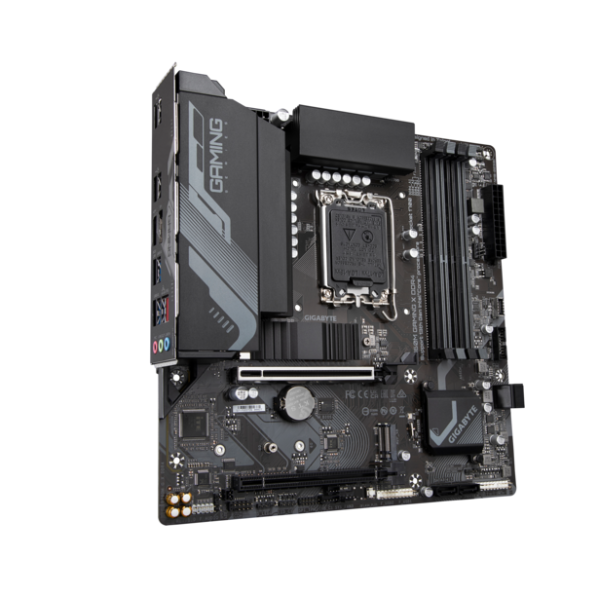

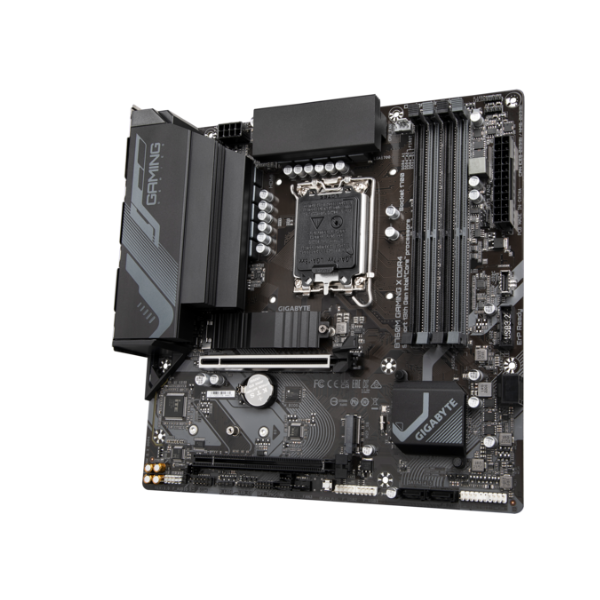

Model: B760M GAMING X DDR4

Product Type: Desktop Motherboard

Form Factor: Micro-ATX

Body Color: Black

Chipset: Intel B760

Sockets Supported: LGA1700

CPU Supported: 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Memory Type: DR4

Memory Speed (MHz): Max 5333+(OC) MT/s Memory Modules

Memory Slot: 4

Memory Max: 128GB

HDD Interface: SATA

HDD Slot: 4

SSD Interface: M.2

SSD Slot: 2

Graphics Chipset: Intel HD Graphics Support

Expansion Slots: 1 x PCI Express x16 Slot

Chip: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Ethernet LAN: 10/100/1000/2500Mbps

USB:

1 x USB Type-C port

5 x USB 3.2 Gen 1 ports

1 x USB 2.0/1.1 port

8 x USB 2.0/1.1 ports

Thunderbolt Port: 2

HDMI Port: 1

Display Port: 1

RJ-45 Ports: 1

TPM Port: 1

Audio Jack: 3

RGB Support: RGB

RGB Sync: RGB LED strip Headers

RGB Connector: 2 x RGB LED strip Headers

BIOS Type: 1 x 128 Mbit Flash

BIOS Model: AMI UEFI BIOS

Power Consumption: 60W

Dimensions: 24.2 x 24.3 x 4.5cm

Weight: 1.7kg

Warranty: 3 Years

Country Of Origin: Taiwan

Made in: China
