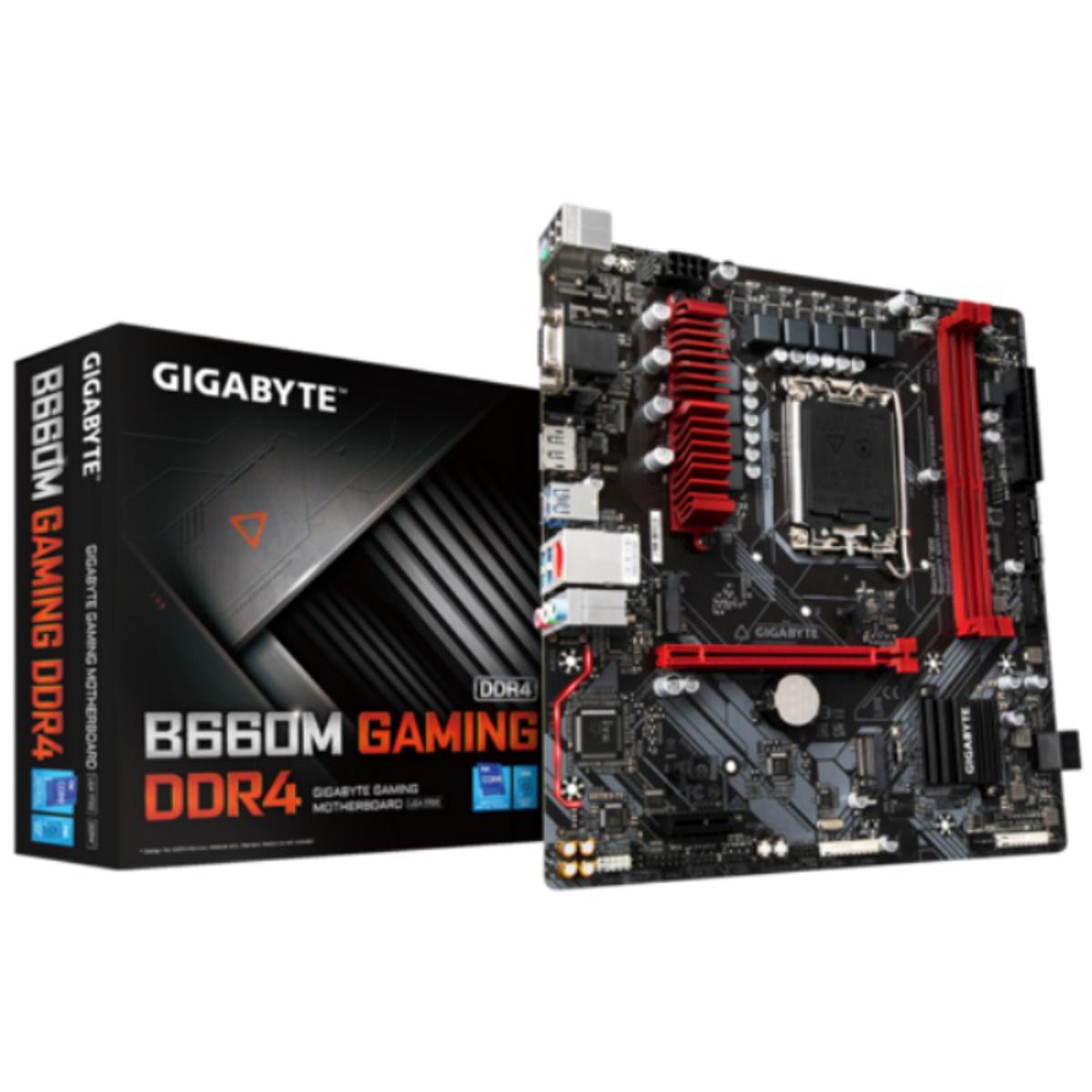

Gigabyte B660M Gaming DDR4 12th Gen LGA1700 Motherboard

Name: Gigabyte B660M Gaming DDR4 12th Gen LGA1700 Motherboard
SKU: JACO713220
Price: 16000.00 BDT
Availability: InStock

Category: Computers, Components & Accessories

SKU: JACO713220

Seller: Janani Computers

App Coupon to Get Extra Discount

Tk 16,000

0 review(s)

Gigabyte B660M Gaming DDR4 12th Gen LGA1700 Motherboard

Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
LGA1700 CPU Socket
64 GB Max Memory
Supports 12th Gen Intel Core Series Processors
3-years Official Brand Warranty

Call For Order : 09613-800800

Specifications
Brand: Gigabyte
Series: B660M
Model: B660M GAMING DDR4
Chipset: Intel B660 Express Chipset
CPU: LGA1700 socket
Memory Channels: Dual
Max Memory: 64 GB
Memory slots: 2 x DDR4 DIMM sockets
Supported Memory:  DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
Bios: 1 x 256 Mbit flash
Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
Graphics: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Expansion Slots: 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x1 slot
USB Chipset:1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Ports & Connectors :
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors:
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
1 x DisplayPort
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x RJ-45 port
3 x audio jacks
I/O Controller: iTE I/O Controller Chip
Supported Storage :
CPU: 1 x M.2 connector
Chipset: 1 x M.2 connector, 4 x SATA 6Gb/s connectors
LAN: Realtek 2.5GbE LAN chip 2.5 Gbps/1 Gbps/100 Mbps
Form Factor : Micro ATX Form Factor 24.4cm x 22.5cm
Warranty: 3 Years Brand Warranty

Gigabyte B660M Gaming DDR4 12th Gen LGA1700 Motherboard

Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
LGA1700 CPU Socket
64 GB Max Memory
Supports 12th Gen Intel Core Series Processors
3-years Official Brand Warranty

Warranty: 3 Years warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
