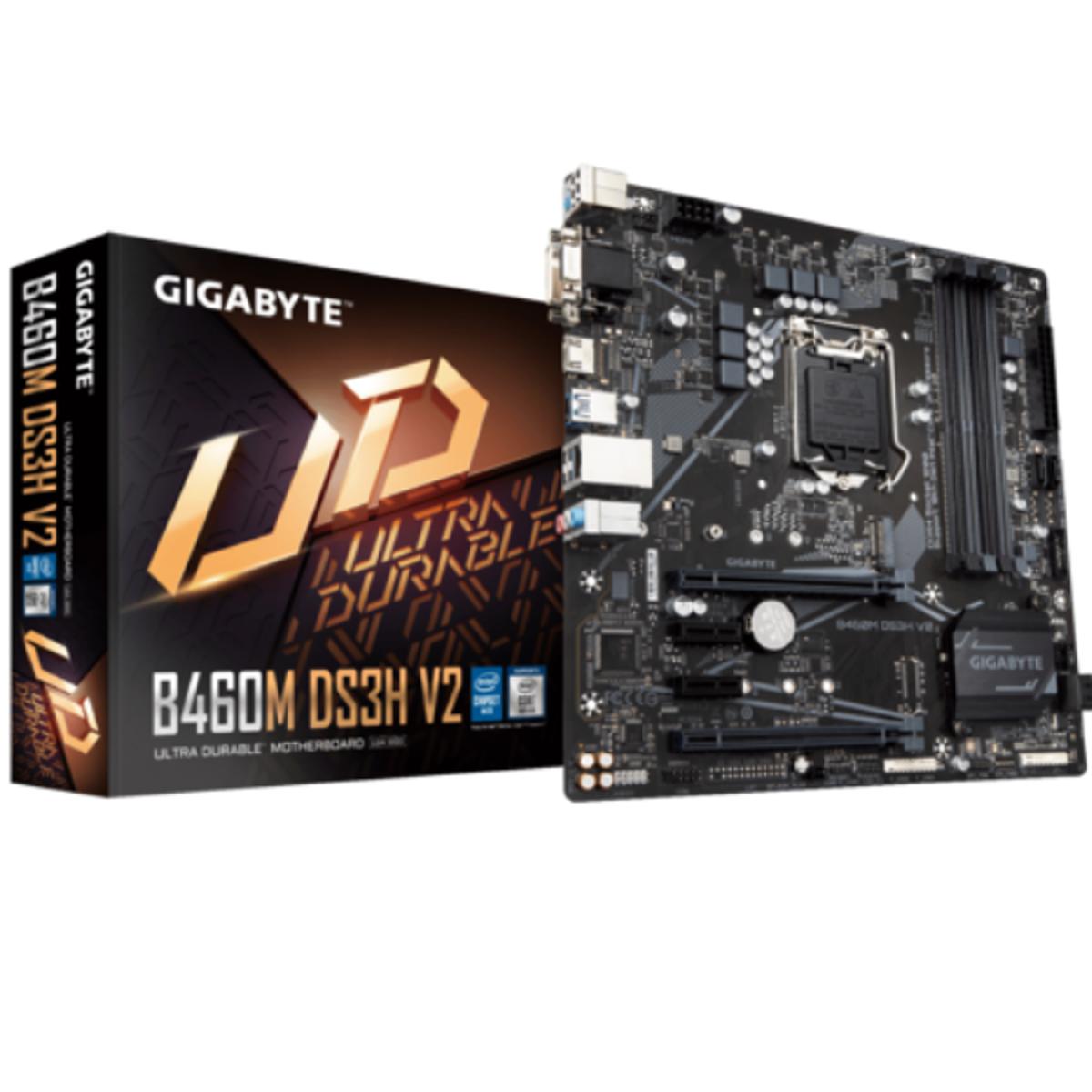

GIGABYTE B460M DS3H V2 Intel 10th Generation Motherboard

Name: GIGABYTE B460M DS3H V2 Intel 10th Generation Motherboard
SKU: JACO713165
Price: 11000.00 BDT
Availability: InStock

Category: Computers, Components & Accessories

SKU: JACO713165

Seller: Janani Computers

App Coupon to Get Extra Discount

Tk 11,000

0 review(s)

GIGABYTE B460M DS3H V2 Intel 10th Generation Motherboard

Support for 10th Generation Core Processors
Dual Memory Channels
128GB Max Memory
4 x DDR DIMM Memory slots
Intel H470 Chipset
3 Years Warranty

Call For Order : 09613-800800

Specification
Brand: Gigabyte
Model: B460M DS3H V2
Chipset: Intel H470 Express Chipset
CPU: Support for 10th Generation Core Processors
Memory Channels: Dual
Max Memory: 128 GB
Memory slots: 4 x DDR DIMM sockets
Supported Memory:  DDR4 2933(supported: i9/i7), 2666(supported: i5/i3/Pentium/Celeron)
Bios: 1 x 256 Mbit flash
Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
Onboard Graphics: 1 x D-Sub port , 1 x DVI-D port, 1 x HDMI port
Expansion Slots: 1 x PCI Express x16 slot, 1 x PCI Express x1 slot, 2 x PCI Express x1 slots
USB Chipset: 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports
Internal I/O Connectors:
1 24-pin ATX main power connector
1 8-pin ATX 12V power connector
1 CPU fan header
1 system fan header
1 addressable LED strip header
1 RGB LED strip header
1 M.2 Socket 3 connector
4 SATA 6Gb/s connectors
1 front panel header
1 front panel audio header
1 USB 3.2 Gen 1 header
2 USB 2.0/1.1 headers
2 Thunderbolt add-in card connectors
1 Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 serial port header
1 Clear CMOS jumper
1 Q-Flash Plus button
Back Panel Connectors:
1 PS/2 keyboard/mouse port
1 D-Sub port
1 DVI-D port
1 HDMI port
3 USB 3.2 Gen 1 ports
2 USB 2.0/1.1 ports
1 RJ-45 port
3 audio jacks
I/O Controller: iTE I/O Controller Chip
Supported Storage : 1 x M.2 connector, 4 x SATA 6Gb/s connectors
LAN: Intel GbE LAN chip (1000 Mbit/100 Mbit)
Form Factor : Micro ATX
Warranty: 3 years

GIGABYTE B460M DS3H V2 Intel 10th Generation Motherboard

Support for 10th Generation Core Processors
Dual Memory Channels
128GB Max Memory
4 x DDR DIMM Memory slots
Intel H470 Chipset
3 Years Warranty

Warranty: 3 Years warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
