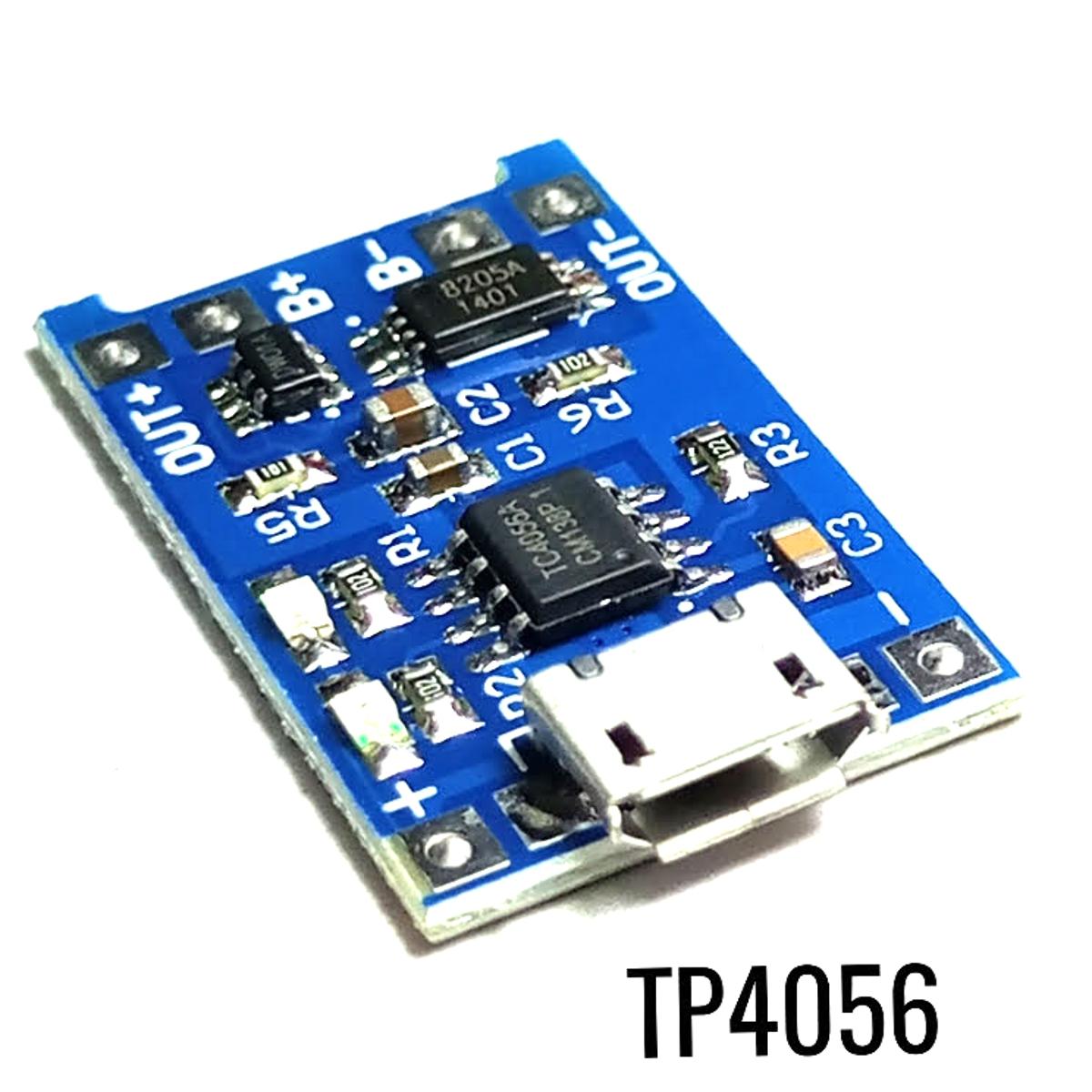

Picture of Fast-Charge with 5V 1A Micro USB 18650 Battery Charger Module + Protection: Keep Your Batteries Safely Powered - Battery
Picture of Fast-Charge with 5V 1A Micro USB 18650 Battery Charger Module + Protection: Keep Your Batteries Safely Powered - Battery

Fast-Charge with 5V 1A Micro USB 18650 Battery Charger Module + Protection: Keep Your Batteries Safely Powered - Battery

Category: Tools
SKU: SKNT22979
Seller: Skynet
bKash 10% Cashback ( T&C)
Tk 43
Tk 72
Tk 72
40% OFF
0 review(s)
  • Product details of TP4056 Module 18650 Lithium Battery ChargerConnect micro USB cable for power, or 5V DC to pads marked IN+ and IN- on left side of the module
  • Connect battery cell to charge to B+/B- pads on right side of module
  • A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right side
  • Important Disconnect load when charging
  • The red LED indicates charging in progress, green LED indicates charging is completeSpecifications: Input: Micro USB female or + and – solder terminals Input voltage: 4.35-6V (recommended voltage 5V) Charge cut-off voltage: 4.2V + / – 1% (Charges a 1cell 3.7V Lithium Ion Polymer Battery) Maximum charging current output: 1000mA Battery overcharge protection voltage: 4.3V Battery discharge protection voltage: 2.4V Battery over-current protection current: 3A Board size: 27mm * 17mm (29mm * 17mm including USB connector overhang) Indicator LEDs: Red/Green LED: Off – not connected or no power; Red – charging; Green – charge complete Blue LED: Off – no power; Blue – power on Working temperature: -10C – +85C
*

Call For Order : 09613-800800





  • Product details of TP4056 Module 18650 Lithium Battery ChargerConnect micro USB cable for power, or 5V DC to pads marked IN+ and IN- on left side of the module
  • Connect battery cell to charge to B+/B- pads on right side of module
  • A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right side
  • Important Disconnect load when charging
  • The red LED indicates charging in progress, green LED indicates charging is completeSpecifications: Input: Micro USB female or + and – solder terminals Input voltage: 4.35-6V (recommended voltage 5V) Charge cut-off voltage: 4.2V + / – 1% (Charges a 1cell 3.7V Lithium Ion Polymer Battery) Maximum charging current output: 1000mA Battery overcharge protection voltage: 4.3V Battery discharge protection voltage: 2.4V Battery over-current protection current: 3A Board size: 27mm * 17mm (29mm * 17mm including USB connector overhang) Indicator LEDs: Red/Green LED: Off – not connected or no power; Red – charging; Green – charge complete Blue LED: Off – no power; Blue – power on Working temperature: -10C – +85C
