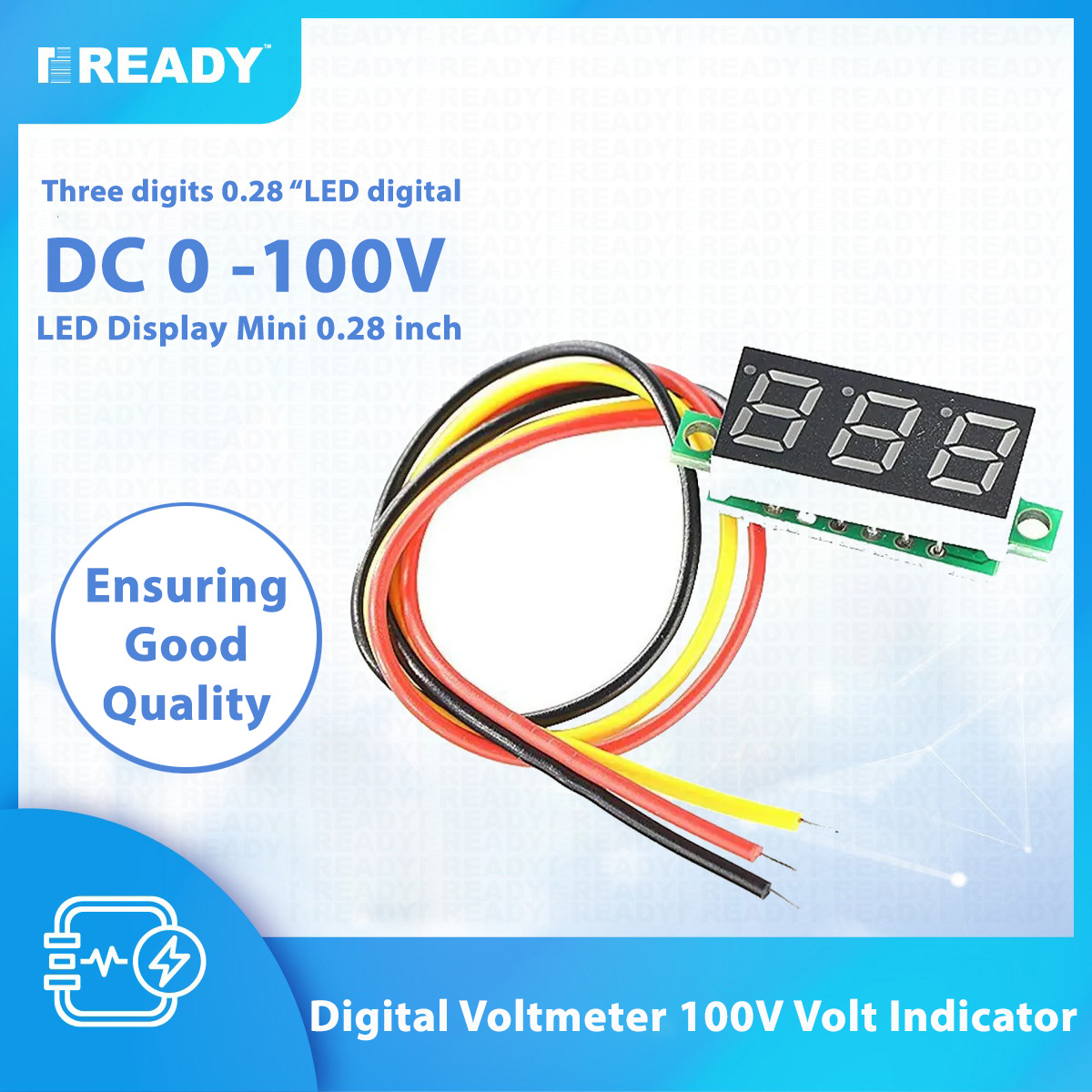

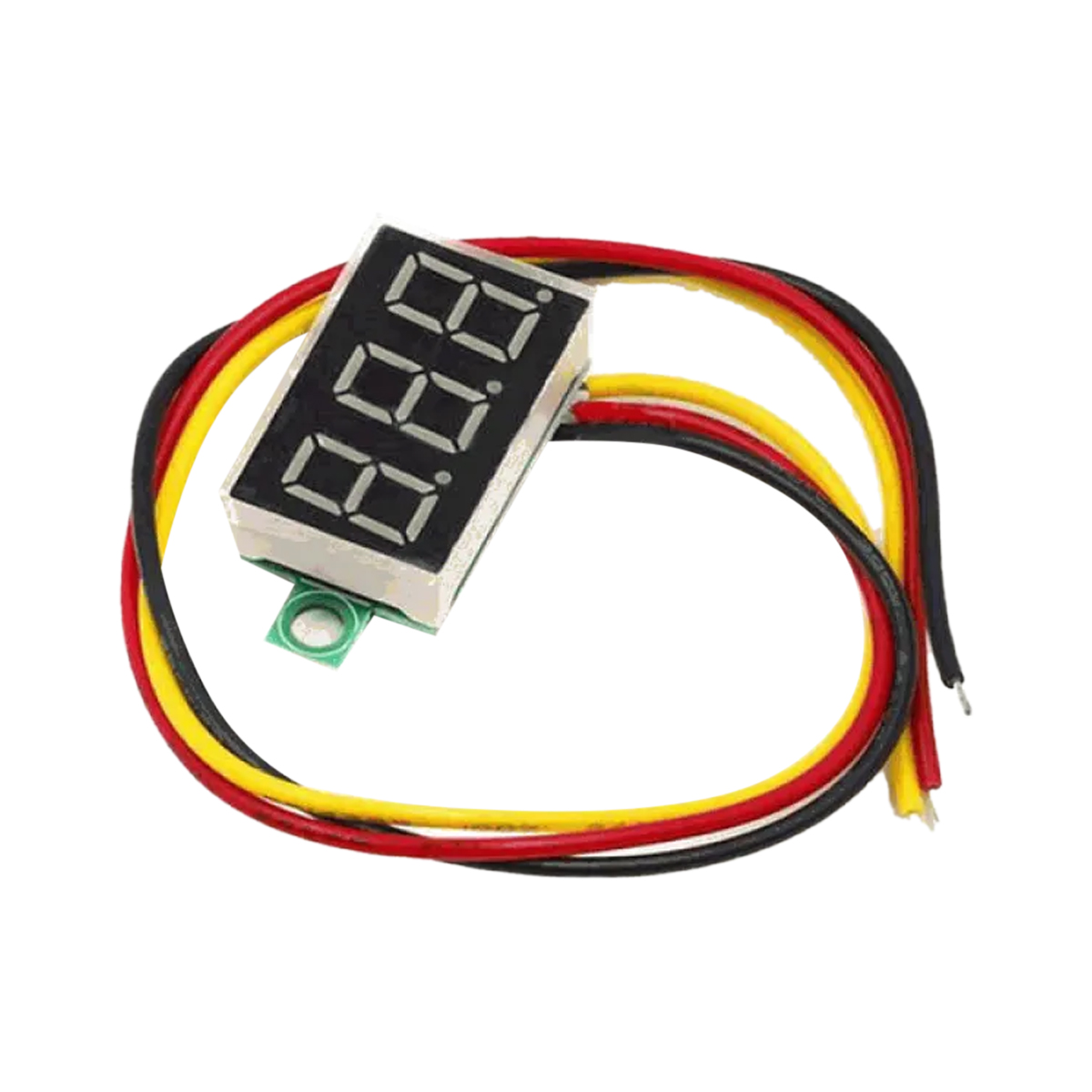

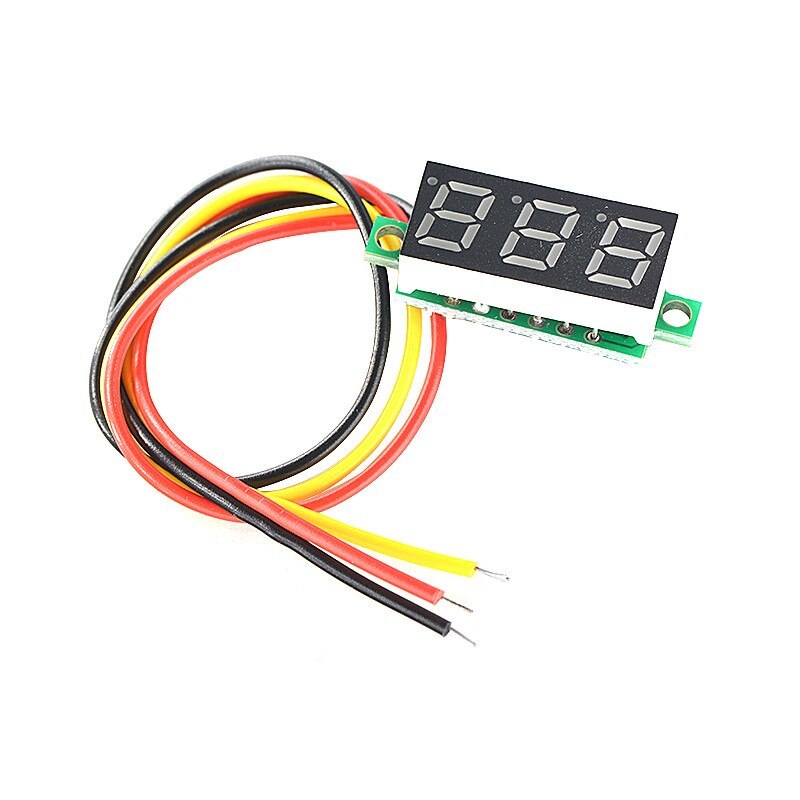

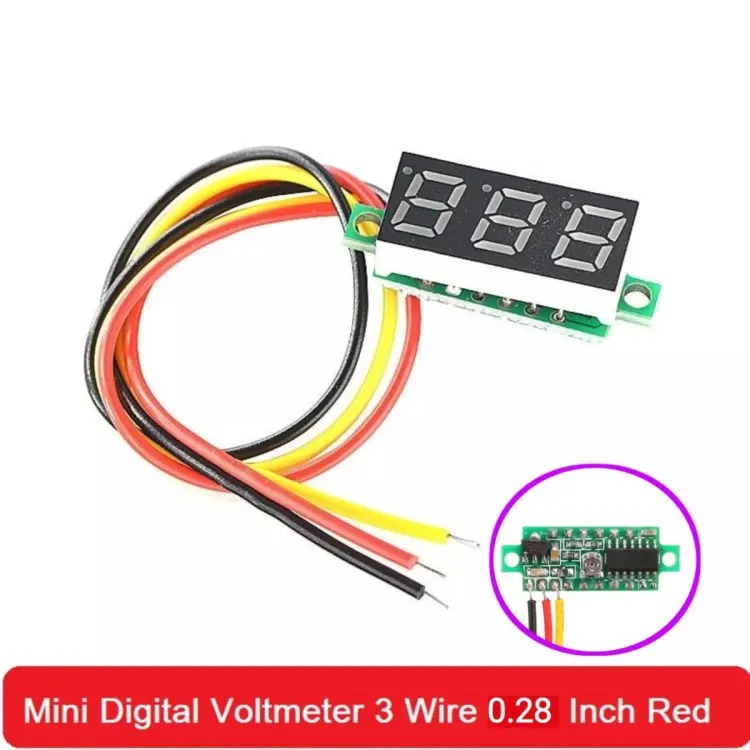

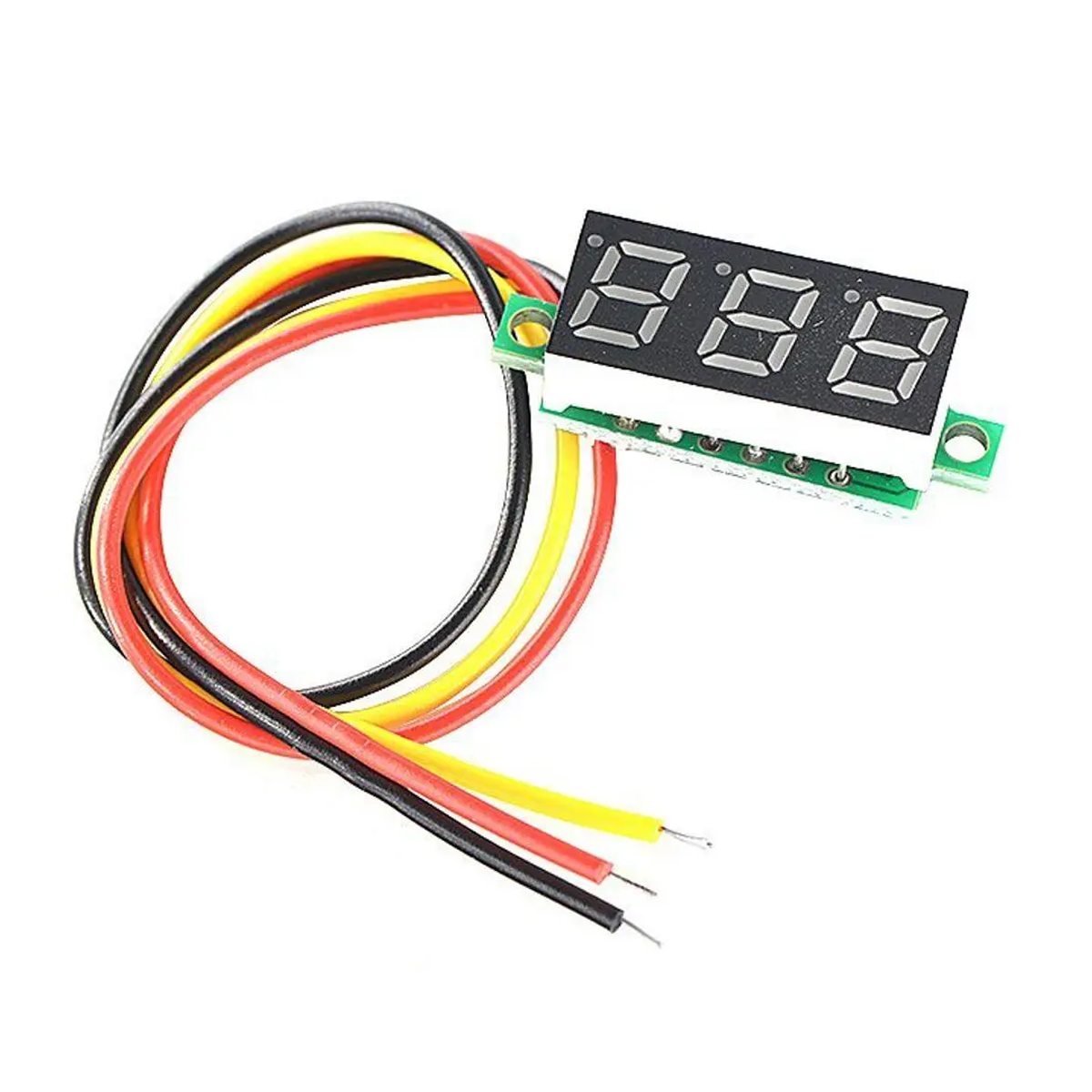

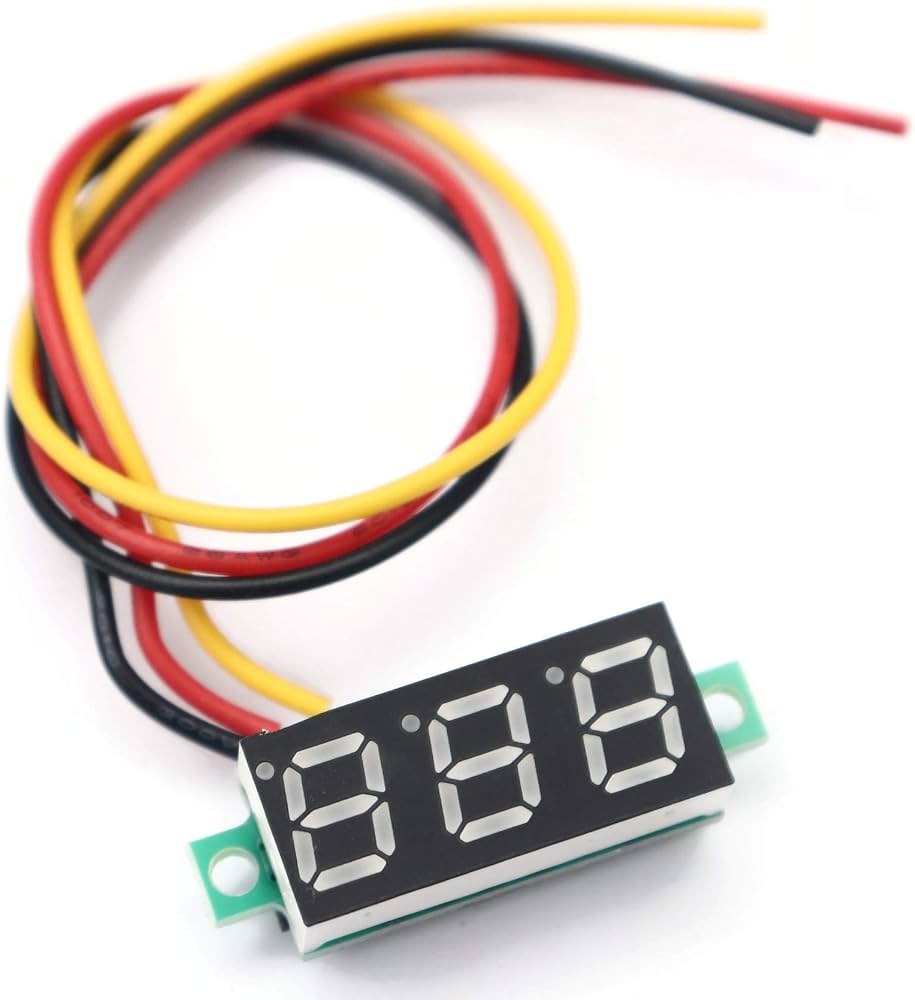

Effortless Voltage Monitoring Made Simple: Mini Digital DC Voltmeter Panel Examiner with Clear 3-Bit Red LED Display - Minimalistic Sophistication

Category:
SKU: RDE02159
Seller: READY ELECTRONICS
App Coupon & 10% Extra Savings ( T&C)
Tk 98
Tk 150
Tk 150
35% OFF
0 review(s)
  • Operating Voltage:4.0-30V
  • Detecting Voltage:0-100V
  • Working Current < 20 mA
  • Detection Rate:≥ 200 mS/Times
  • Install the hole: 23 * 10 mm
  • Measurement Accuracy: 3 %
  • The minimum working voltage: +4 V
  • The maximum working voltage: +30 v
  • Working temperature:-10 ~ +65 ℃
  • Working humidity: 10~80% (No condensation)
  • Dimensions: 30 * 11.7 * 9.2 mm
  • Measurement rate: ge;200mS / times
  • Accuracy: 3 permil;(+/- 1 word)
  • Operating temperature: -10 ~ +65 ℃
  • Working humidity: 10~80%
  • Working pressure: 80~106kpa

Call For Order : 09613-800800
  • Mini Digital DC Voltmeter Panel Volt Tester Detector Monitor 3 Wire 3 Bit Red LED
  • Operating Voltage:4.0-30V
  • Detecting Voltage:0-100V
  • Working Current < 20 mA
  • Detection Rate:≥ 200 mS/Times
  • Install the hole: 23 * 10 mm
  • Measurement Accuracy: 3 %
  • The minimum working voltage: +4 V
  • The maximum working voltage: +30 v
  • Working temperature:-10 ~ +65 ℃
  • Working humidity: 10~80% (No condensation)
  • Dimensions: 30 * 11.7 * 9.2 mm
  • Measurement rate: ge;200mS / times
  • Accuracy: 3 permil;(+/- 1 word)
  • Operating temperature: -10 ~ +65 ℃
  • Working humidity: 10~80%
  • Working pressure: 80~106kpa





  • Operating Voltage:4.0-30V
  • Detecting Voltage:0-100V
  • Working Current < 20 mA
  • Detection Rate:≥ 200 mS/Times
  • Install the hole: 23 * 10 mm
  • Measurement Accuracy: 3 %
  • The minimum working voltage: +4 V
  • The maximum working voltage: +30 v
  • Working temperature:-10 ~ +65 ℃
  • Working humidity: 10~80% (No condensation)
  • Dimensions: 30 * 11.7 * 9.2 mm
  • Measurement rate: ge;200mS / times
  • Accuracy: 3 permil;(+/- 1 word)
  • Operating temperature: -10 ~ +65 ℃
  • Working humidity: 10~80%
  • Working pressure: 80~106kpa
