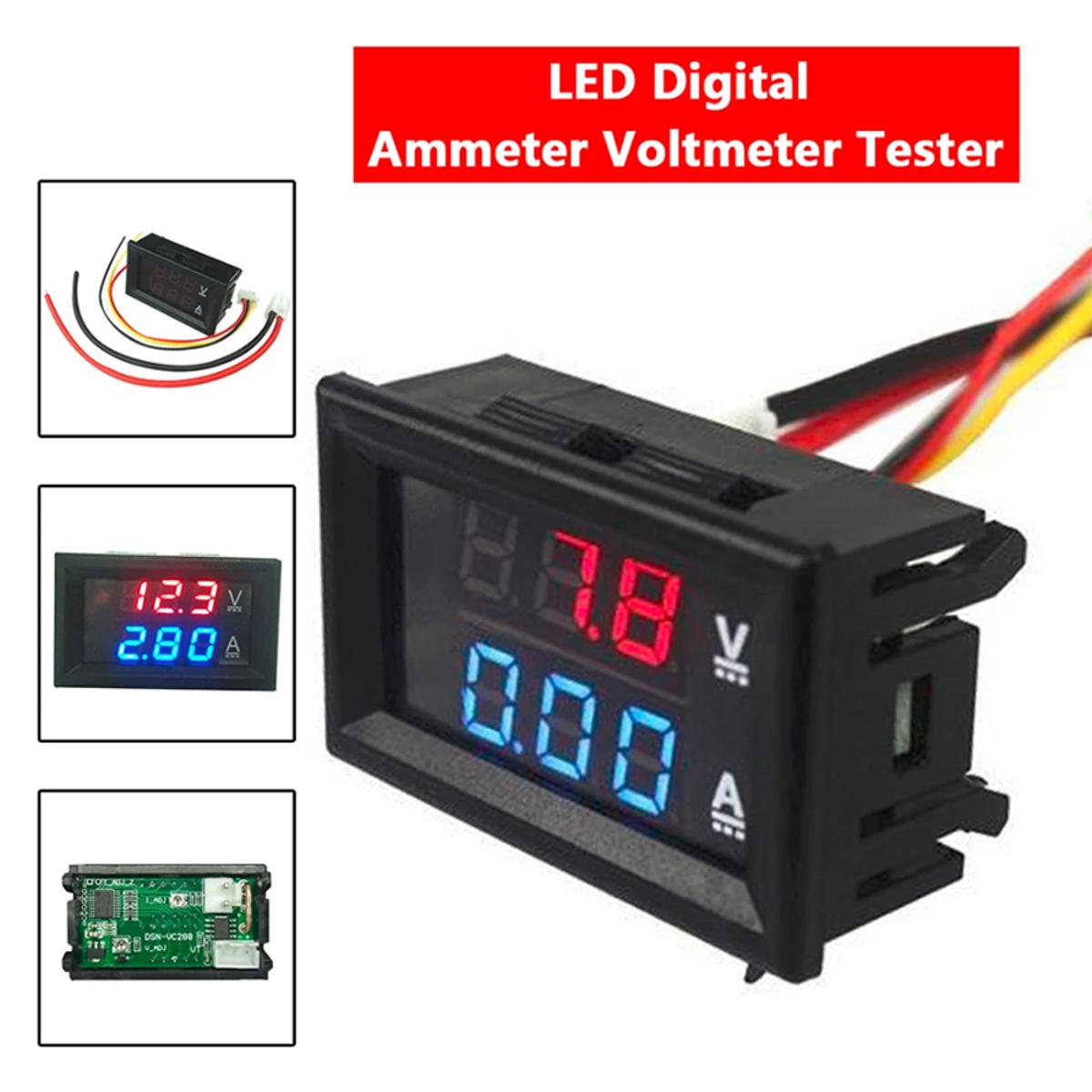

DC 0-100V 10A Digital Voltmeter Ammeter Dual Display 10A Voltage Detector Current Meter Panel Amp Volt Gauge 0.28″ Red Blue LED

Features:

• Size: 48mm x 29mm x 21mm.
• Display color: Red & Blue LED (dual display).
• Display: 0.28″ LED digital.
• Operating voltage: DC 4.5 ~ 30V.
• Measure voltage: DC 0 ~ 100V.
• Minimum resolution (V): 0.1V.
• Refresh rate: ≥500ms / times.
• Measure accuracy: 1% (± 1 digit).
• Minimum resolution (A): 0.01A.
• Operating Current: <20mA.
• Measure current: 10A (direct measurement, built-in shunt).
• Operating temperature: -10 to 65°c.
• Operating Humidity: 10 to 80% (non-condensing).
• Mounting cutout: 45.5mm x 26.1mm.

NOTE:

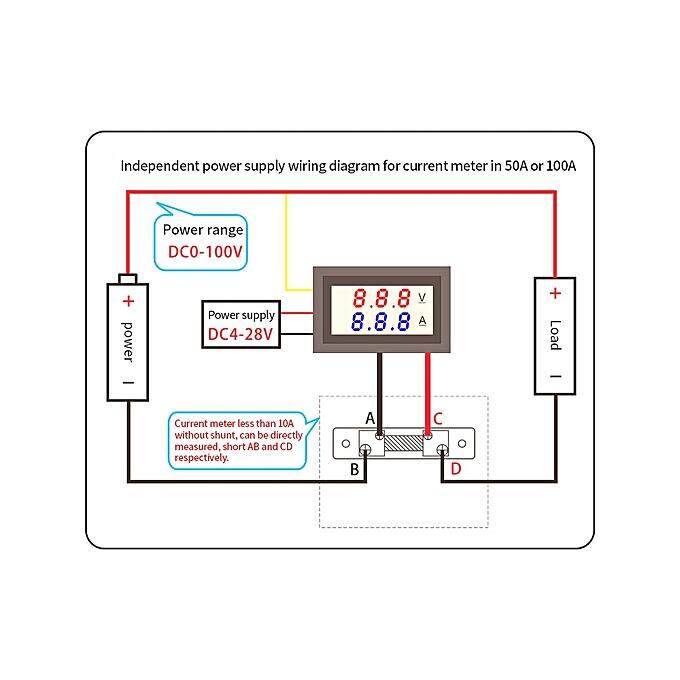

• The voltage between the thin red and thin black lines must be within DC 4.5-30V
• The ammeter can only be connected to the negative of the device under test

• It is unsuitable to use this meter to test current less than 1A ,if you use it to test ampere below 1A, it will have big error.

Package Content:

• 1 x DC 0-100V Voltmeter Ammeter
