DC 8-24V STEREO DIGITAL AMPLIFIER BOARD DY-AP3015

Description

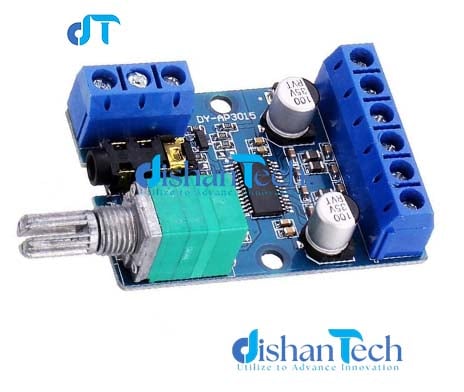

DC 8-24V Stereo Digital Amplifier Board DY-AP3015

Parameters:

1. Product name:DY-AP3015 Stereo Power Amplifier Module
2. Model:DY-AP3015
3. Work Voltage:DC 8V-24V
4. Work Mode:Class D(PWM)
5. Channel:Dual channel

Output Power:

1. Output power 18W*2 at 12V 4ohm
2. Output power 10W*2 at 12V 8ohm
3. Output power 15W*2 at 16V 8ohm
4. Output power 20W*2 at 20V 8ohm
5. Output power 30W*2 at 24V 8ohm(Need to add an extra heat sink!)
6. Match speaker(30W~150W):
7. 4ohm at 8V~12V
8. 8ohm at 8V~24V
9. Work Temperature:-40?~85?
10. Work Humidity:0%~95%RH
11. Module Size:59*32*14mm

Use steps:

1. Choose the right speaker and connect as shown in the wiring diagram.
2. Connect to the right power supply from the input terminal.
3. Connect audio signal from 3.5mm socket or blue terminal.
4. Test and use.
5. The speaker cable should not be too long, to ensure that within 1 meter
6. Pay attention to static electricity protection. Before touching the power amplifier board, you need to release the static electricity on your hand to avoid static electricity from penetrating the

Application:

1. Modified speaker
2. Amplifier equipment
3. Repair replacemen
