Description:

Wiring: Red and green power connection red line:”+” green line “-”
Output : the other side ,same color cable

size：24x22x63mm

Please note:
The high-voltage module should avoid the use of electricity in high voltage no-load .
(Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is
proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible ,
you must provide enough current ) . Experimental test of the arc distance from short
to long , Do not exceed the maximum arc distance electricity, energy can not be released due
to high pressure , can easily damage the module.)
Work: intermittent , continuous work does not allow more than 1 minute and the output side does not
allow shorting .Improper voltage and long working hours easily damaged module.

Package included:

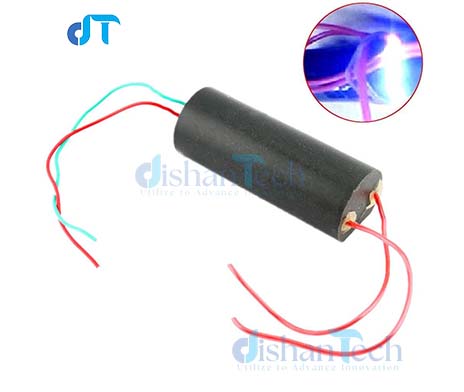

1 * DC 3V-6V to 400KV 400000V Boost Step-up Power Module High-voltage Generator
