Description:

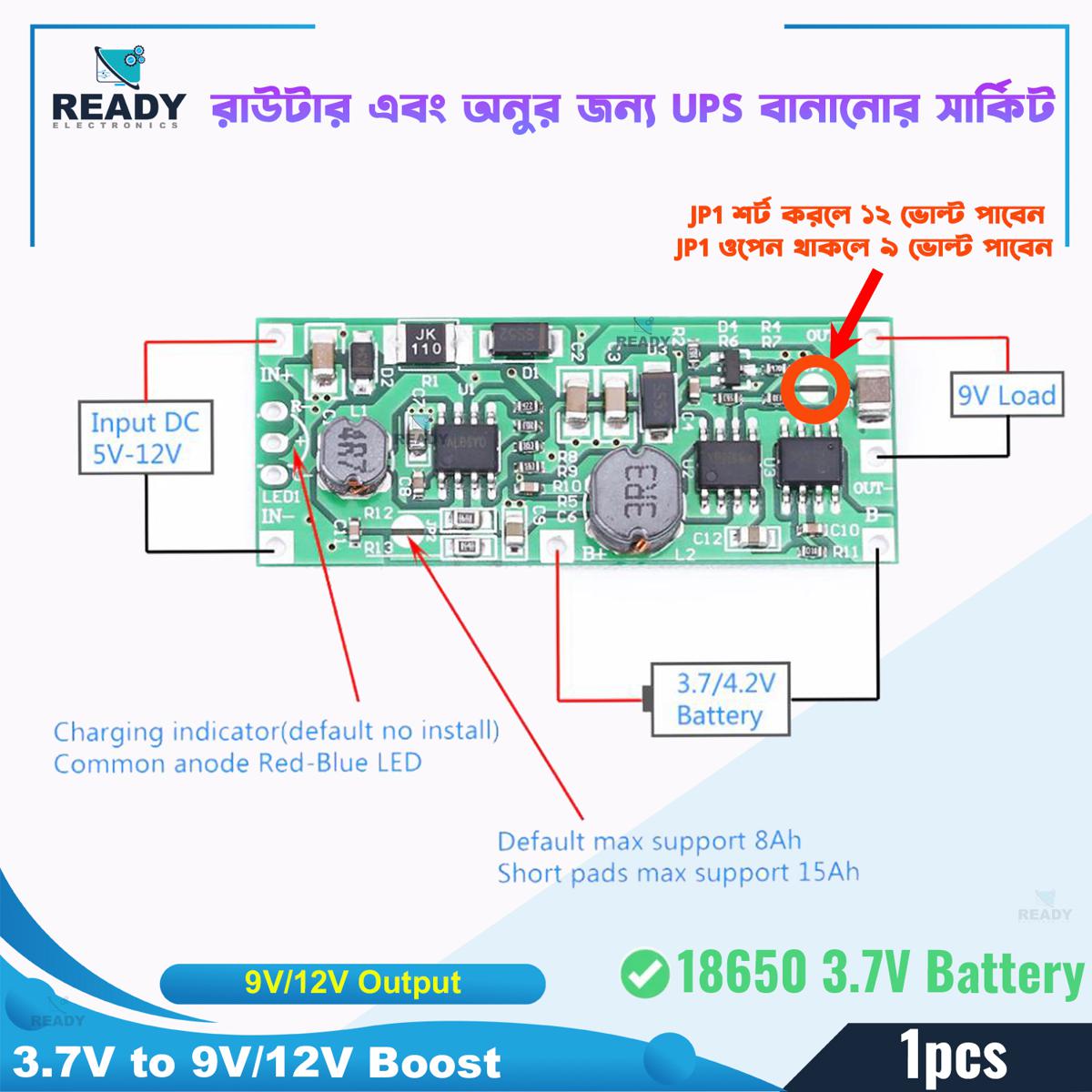

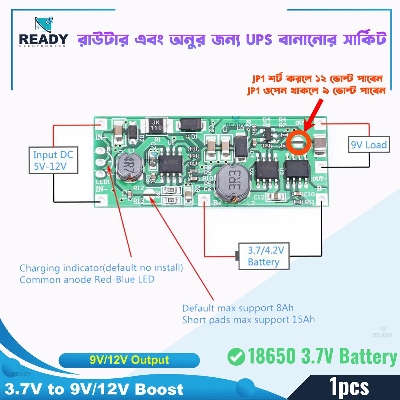

It is a UPS uninterruptible power supply control board.
Features:
1>.Support charging and discharging at the same time
2>.Large current
3>.Small size
4>.High efficiency
5>.Support short circuit protection
Parameters:
1>.Product Name:UPS Voltage Converter Module
2>.Working Voltage:DC 5.0V-12.0V
3>.Output Voltage:DC 12.0V
4>.Output Power:12W
5>.Support Battery(No include!):3.7V Lithium or polymer battery 15Ah(Max)
6>.Working Temperature range:-40℃~85℃
7>.Working Humidity range:0%-95%RH
8>.Size:50*20*6.3mm
Using Steps:
1>.Connect right input voltage at input terminal.
2>.Check output voltage by voltmeter and ammeter.
3>.Connect battery at B+ and B-.
Note:
1>.Its max output current is 1A and can not keep output 1A.
2>.The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
3>.Users can install a common anode Red-Blue LED by yourself as charging indicators.Blue light indicates whether there is a load at output.Keep Red is charging.There is no battery if Red flashing.Red OFF if charged.
4>.Due to the large current, it is recommended to use a thicker wire.Wire cross-section greater than 1.5 square millimeters.
5>.Please read use manual and description before use.
Application:
1>.Ordinary power supply;
2>.Battery charger;
3>.Mobile power;
4>.Power conversion;
5>.Infrared alarm;
6>.Network equipment such as switches;
7>.Router;
8>.Battery car modification
It is a UPS uninterruptible power supply control board.
Features:
1>.Support charging and discharging at the same time
2>.Large current
3>.Small size
4>.High efficiency
5>.Support short circuit protection
Parameters:
1>.Product Name:UPS Voltage Converter Module
2>.Working Voltage:DC 5.0V-12.0V
3>.Output Voltage:DC 12.0V
4>.Output Power:12W
5>.Support Battery(No include!):3.7V Lithium or polymer battery 15Ah(Max)
6>.Working Temperature range:-40℃~85℃
7>.Working Humidity range:0%-95%RH
8>.Size:50*20*6.3mm
Using Steps:
1>.Connect right input voltage at input terminal.
2>.Check output voltage by voltmeter and ammeter.
3>.Connect battery at B+ and B-.
Note:
1>.Its max output current is 1A and can not keep output 1A.
2>.The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
3>.Users can install a common anode Red-Blue LED by yourself as charging indicators.Blue light indicates whether there is a load at output.Keep Red is charging.There is no battery if Red flashing.Red OFF if charged.
4>.Due to the large current, it is recommended to use a thicker wire.Wire cross-section greater than 1.5 square millimeters.
5>.Please read use manual and description before use.
Application:
1>.Ordinary power supply;
2>.Battery charger;
3>.Mobile power;
4>.Power conversion;
5>.Infrared alarm;
6>.Network equipment such as switches;
7>.Router;
8>.Battery car modification
- Product Name:UPS Voltage Converter Module
- Working Voltage:DC 5.0V-12.0V
- Output Voltage:DC 12.0V
- Output Power:12W
- Support Battery(No include!):3.7V Lithium or polymer battery 15Ah(Max)
- Working Temperature range:-40℃~85℃
- Working Humidity range:0%-95%RH
- Size:50*20*6.3mm
