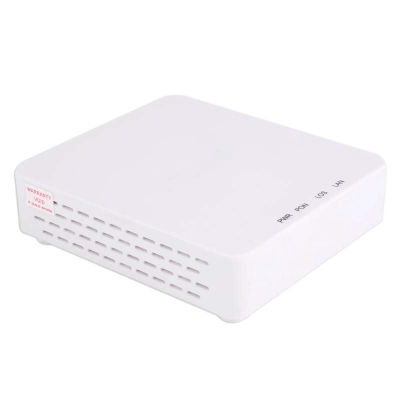

DBC EPON XPON Onu 1GE cheap price onu FTTH - White

Product details of

Specification

Standards

EPON ONU 1GE WITH CORTINA

Port features

1 PON port(1.25G)

1 10/100/1000M port

Rate

1.25Gbps/1.25Gbps

T/R

1310 nm/1490 nm

Interface

SC/PC/UPC SC/APC

Distance

20KM

Products Description

Product introduce

EPON ONU is one of the EPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data and video service based on the EPON network.

EPON is the latest generations of access network technology. IEEE802.3ah is the standard protocol of EPON. The EPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. EPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. EPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. EPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.

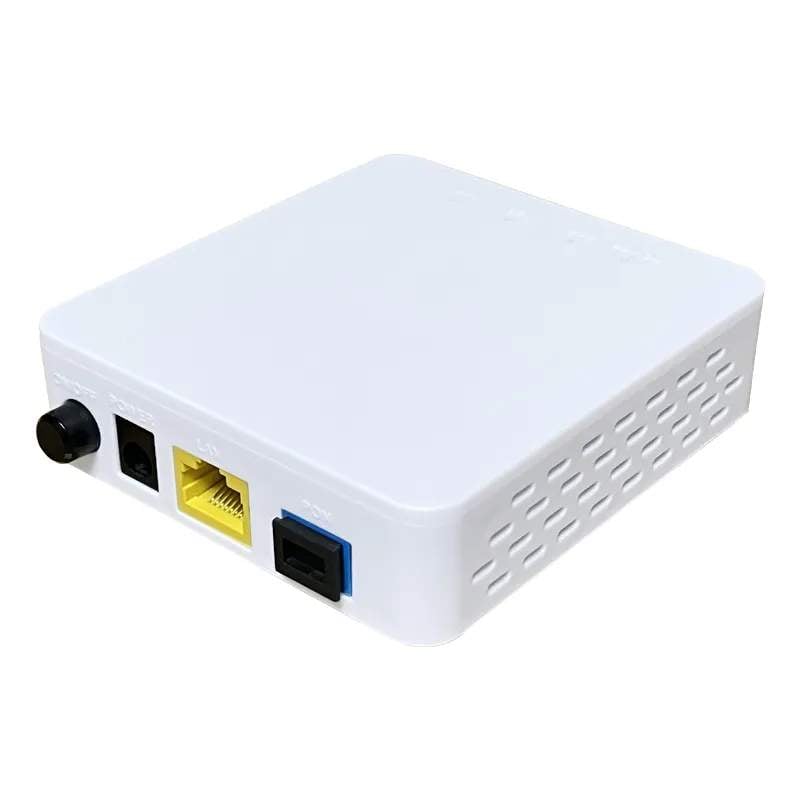

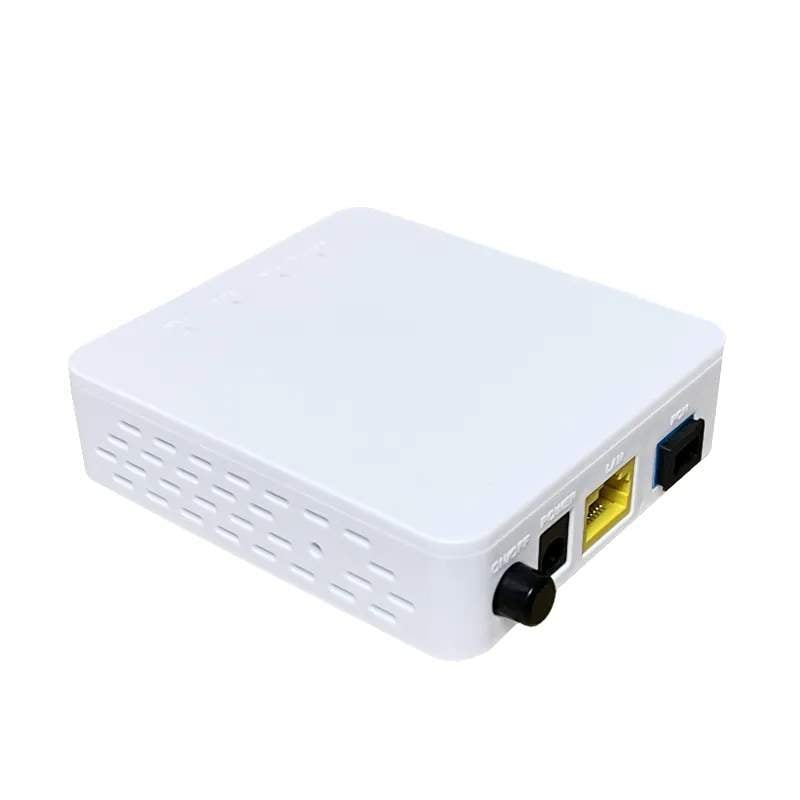

Interface Details

>1 EPON port

(uplink 1.25Gbps, downlink 1.25Gbps)



>1 10/100/1000M port

Physical characteristics

> Power supply: 12VDC

> Power consumption: 6W

Temperature:

> Working temperature:0～55℃

> Storage temperature: -30～60℃

> Relative

humidity: 10～90% (non-condensing)
