Specification
Brand: Dahua
Model: XVR5832S-I3
Color: Black
Main Processor: Industrial-grade processor
Perimeter Performance AI by Recorder:Advanced Model: 2 channels, 10 IVS for each channel
General Model: 8 channels, 10 IVS for each channel
Detection of Face Attributes: Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder: 2 channels (up to 12 face images/s each channel)
Face Database Capacity: Up to 10 face databases with 10,000 face images in total. Name, gender,
birthday, address, certificate type, cerificate No., countries & regions and state can be added
to each face image
SMD Plus by Recorder: 16 channels-Secondary filtering for human and motor vehicle SMD Plus,
reducing false alarms caused by leaves,rain and lighting condition change
Analog Camera Input: 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
IP Camera Input: Up to 32 channels of IPC access, 32 channels converted to IP Channel
Incoming bandwidth: 128 Mbps
Recording bandwidth: 128 Mbps
Outgoing bandwidth: 128 Mbps
Video Bit Rate: 32 kbps–6144 kbps per Channel
Audio Bit Rate: 64 kbps
Video Output (Resolution): VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display: 1/4/8/9/16/25/36
Third-party Camera Access: ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Video Compression: AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression: G.711A; G.711u; PCM
Network Mode: Multi-address mode,Fault Tolerance,Load Balance
HDD Interface: 8 SATA ports,up to 16TB for a single HDD
RS-232: 1 port, for PC Communication & Keyboard
RS-485: 1 port for PTZ control
USB: 4 (1 front USB 2.0 port, 2 rear USB 3.0 ports)
Network Port: 2 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply: 100-240 VAC, 50/60Hz
Power Consumption: <22 W
Dimension: 1.5U, 570.0 mm × 570.0 mm × 226.0 mm
Weight: 9.5 kg
Warranty: 1 Year

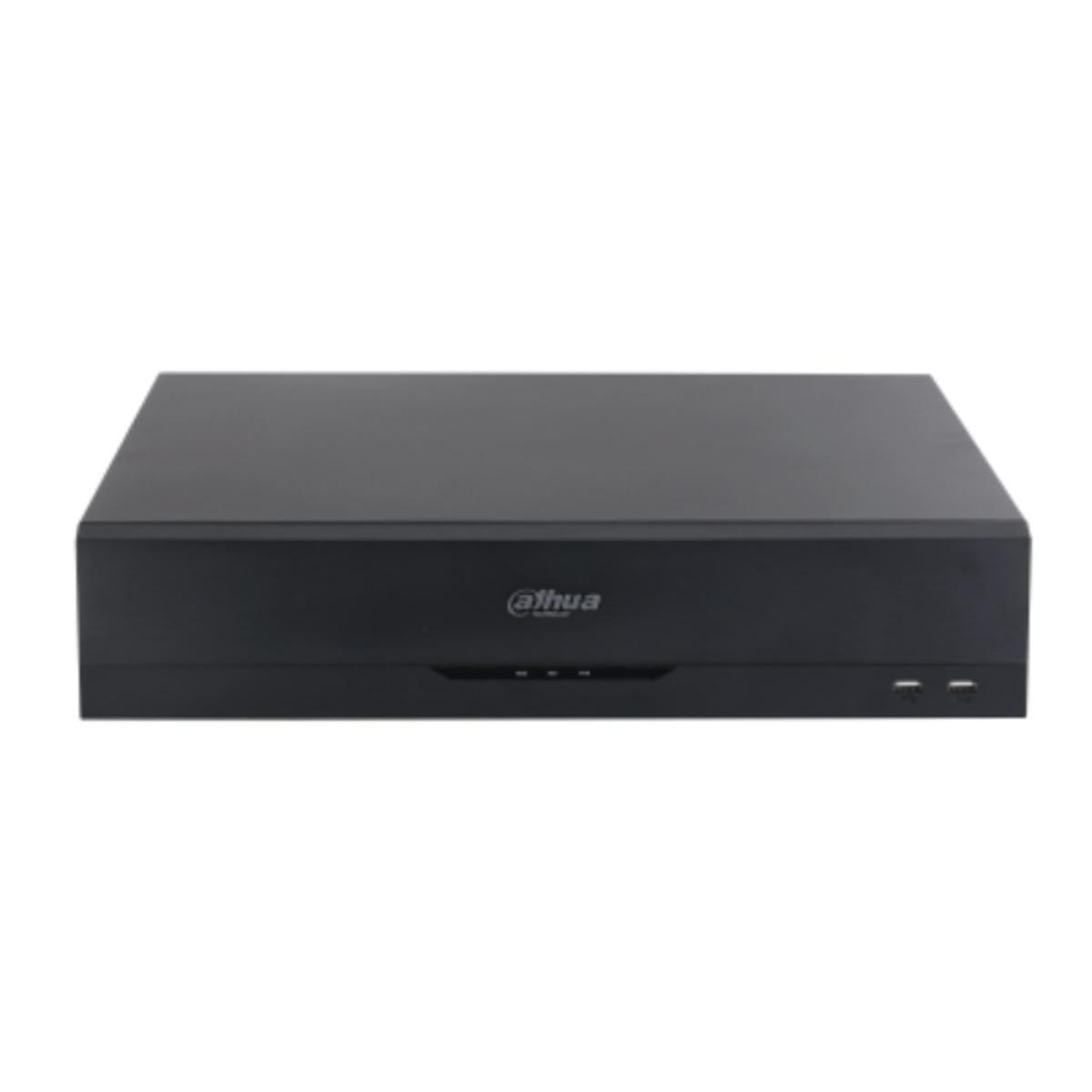

Dahua XVR5832S-I3 32 Channels Penta-brid 5M-N/1080P 2U 8HDDs WizSense DVR

Industrial-grade processor
H.265+/H.265 dual-stream video compression
HDCVI/AHD/TVI/CVBS/IP Camera Supported
Supports 16-channel AI-Coding
Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth.
Up to 8 channels video stream (analog channel) Perimeter Protection.
Up to 16 channels video stream (analog channel) SMD Plus.
Up to 2 channels video stream (analog channel) human face recognition.
8 SATA ports,up to 16TB for each HDD
IoT & POS functionalities
1 Year Official Brand Warranty

Warranty: 5 Years warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
