Specification
Brand: Dahua
Model: XVR5816S-I3
Color: Black
Main Processor: Embedded Processor
Detection Face Attributes: Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder: 2 channels (up to 12 face images/s)
Face Database Capacity: Up to 10 face databases with 10,000 face images
SMD Plus by Recorder: 16 channels: Secondary filtering for human and motor
vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Analog Camera Input: 16 BNC ports, CVI access, supports HDCVI/AHD/TVI/CVBS auto-detect
IP Camera Input: Up to 24 channels of IPC access 8 IP channels by default + 16 channels
are converted to IP channels)
Incoming bandwidth: 128 Mbps
Recording bandwidth: 128 Mbps
Outgoing bandwidth: 128 Mbps
Video Frame Rate: PAL- 1 fps–25 fps, NTSC-1 fps–30 fps
Video Bit Rate: 32 kbps–6144 kbps
Audio Bit Rate: 64 kbps
HDD Interface: 8 SATA ports,up to 16TB, the maximum HDD capacity
RS-232: 1 port, for PC Communication & Keyboard
RS-485: 1 port, for PTZ control
USB: 4 (2 front USB 2.0 port, 2 rear USB 3.0 ports)
Power Supply: 100–240 VAC, 50±2% Hz
Power Consumption: <15 W (without HDD)
Dimension: 570.0 mm × 570.0 mm × 226.0 mm
Weight 9.32 kg
Warranty: 1 Year

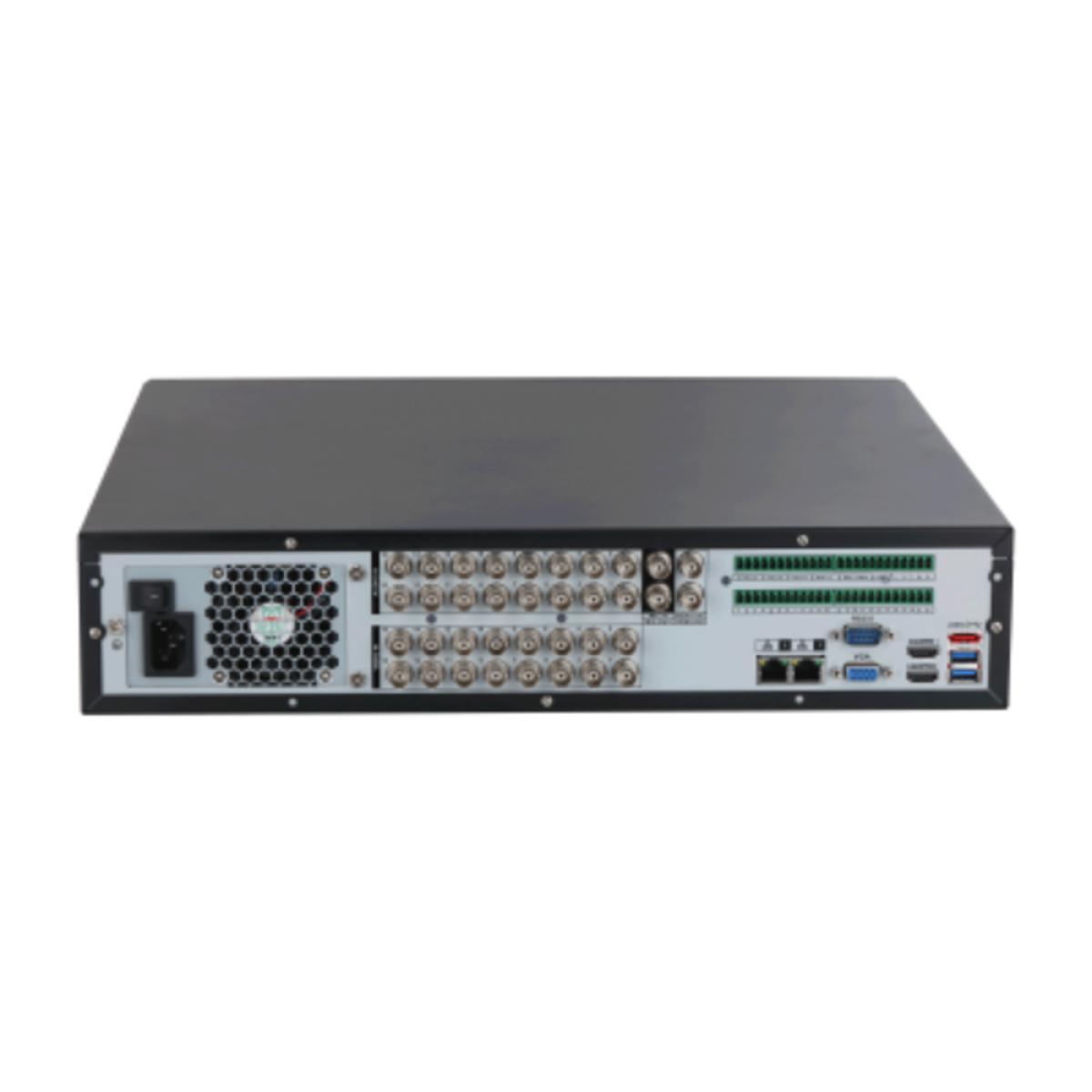

Dahua XVR5816S-I3 16 Channel Penta-brid 5M-N/1080P 2U 8HDDs WizSense DVR

Embedded processor
H.265+/H.265 dual-stream video compression
HDCVI/AHD/TVI/CVBS/IP Camera Supported
Supports 16-channel AI-Coding
Max 24 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth.
Up to 4 channels video stream (analog channel) Perimeter Protection.
Up to 16 channels video stream (analog channel) SMD Plus.
Up to 2 channels video stream (analog channel) human face recognition.
IoT & POS functionalities
8 SATA ports,up to 16TB, the maximum HDD capacity
1 Year Official Brand Warranty

Warranty: 1 Year warranty.
