Specifications
Brand: Dahua
Model: XVR5116HS-S2
Analog Camera Input: 4/8/16 Channel, BNC
HDCVI Camera: 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera: 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera: 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera: PAL/NTSC
IP Camera Input: 4+2/8+4/16+8 Channel, each channel up to 5MP
Audio In/Out: 1/1, RCA
Two-way Talk: Reuse audio in/out, RCA
Compression: H.264+/H.264
Resolution: 4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate: Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Sub steram: D1/CIF/QCIF(1~15fps)
Bit Rate: 1Kbps ~ 6144Kbps Per Channel
Record Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Interface: 1 HDMI ,1 VGA
Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display:
When IP extension mode not enabled:
4CH: 1/4
8CH: 1/4/8/9
16CH: 1/4/8/9/16
When IP extension mode enabled:
4CH: 1/4/6
8CH: 1/4/8/9/16
16CH: 1/4/8/9/16/25
Interface: 4/8CH: 1 RJ-45 Port (100M); 16CH: 1 RJ-45 Port (1000M)
Max. User Access: 128 users
Smart Phone: iPhone, iPad, Android
Internal HDD: 1 SATA Port, up to 8TB capacity
USB: 4/8CH:2 USB 2.0; 16CH:1 USB 2.0 , 1 USB 3.0
RS485: 1 Port, for PTZ Control
Power Supply: DC12V/2A
Power Consumption: <10W
Dimensions: Compact 1U, 260×236×48mm
Weight: 0.75kg
Warranty: 1 Year

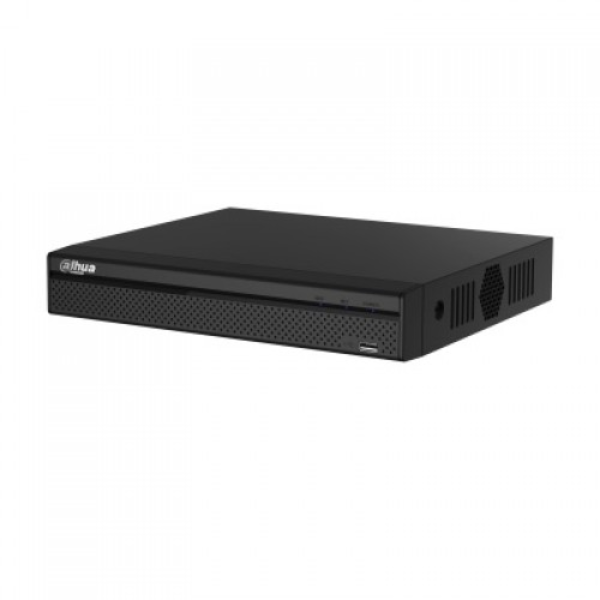

Dahua XVR5116HS-S2 16 Channel Penta-brid 1080P Compact 1U DVR

Embedded processor
H.264+/H.264 video compression
HDCVI/AHD/TVI/CVBS/IP Camera Supported
Max 6/12/24 channels IP camera inputs, each channel up to 5MP;
Max 24/48/96Mbps Incoming Bandwidth
Smart Search and Intelligent Video System
1 Year Official Brand Warranty

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
