Specifications
Brand: Dahua
Model: XVR5108HS-I3
Main Processor: Industrial-grade processor
Perimeter Performance AI by Recorder (Number of Channels):
Advanced Model: 1 channel, 10 IVS for each channel
General Model: 2 channels, 10 IVS for each channel
Analog Camera Input
8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input:
1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
4. CVBS: PAL/NTSC
IP Camera Input: Up to 12 channels of IPC access
4 IP channels by default + 8 channels (analog channels are converted to IP channels)
Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Main stream: All channel 5M-N (1 fps–10 fps);
4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/
D1/CIF (1 fps–25/30 fps)
Sub stream: D1/CIF (1 fps–15 fps)
Dual-stream: Yes
Video Bit Rate: 32 kbps–6144 kbps
Audio Sampling: 8 kHz, 16 bit
Audio Bit Rate: 64 kbps
Video Output: 1 HDMI, 1 VGA, HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P: Mobile Phone Access; iOS; Android
Audio Input: 1-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output: 1-channel RCA
Two-way Talk: Yes (share the same audio input with the first channel)
HDD Interface: 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-485: 1 port, for PTZ control
USB: 2 USB ports (USB 2.0)
Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply: 12 VDC, 2 A
Power Consumption: <7 W
Weight: 1.1 kg (2.43 lb)
Dimensions: 260.0 mm × 237.9 mm × 47.6 mm
Warranty: 1 Year

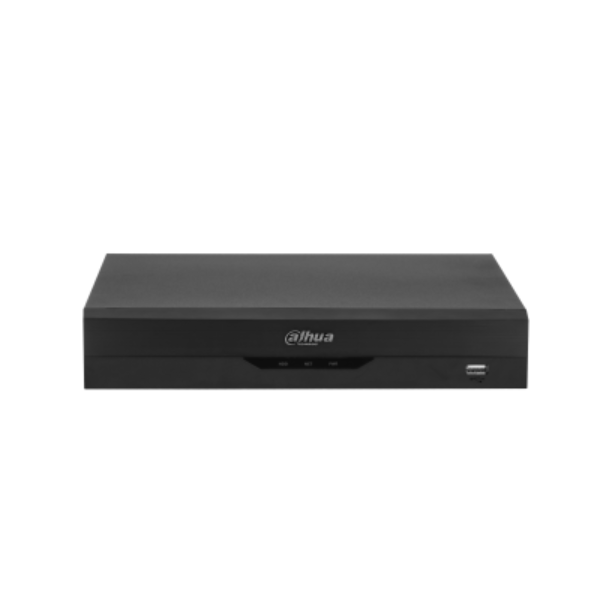

Dahua XVR5108HS-I3 8 Channels Penta-brid 5M-N/1080P Compact 1U 1HDD DVR


H.265+/H.265 dual-stream video compression
HDCVI/AHD/TVI/CVBS/IP Camera supported
Max 12 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps incoming bandwidth
Up to 2 channels video stream (analog channel) Perimeter Protection
Up to 8 channels video stream (analog channel) SMD Plus
Up to 1 channels video stream (analog channel) human face recognition
IoT & POS functionalities
1 Year Official Brand Warranty
