Specifications
Brand: Dahua
Model: XVR5104HS-I3
Main Processor: Embedded processor
Operating System: Embedded linux
Performance: 4 channels
AI Search: Search by target classification (Human, Vehicle)
Analog Camera Input: 4 channels, BNC
HDCVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@
25/30 fps
AHD Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
CVBS Camera Input: PAL/NTSC
IP Camera Input: 4+2 channels, each channel up to 6MP
Audio In/Out: 1/1, RCA
Two-way Talk: Reuse audio in/out, RCA
Recording Compression: AI Coding/H.265+/H.265/H.264+/H.264
Resolution: 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF
Bit Rate: 32 kbps–6144 kbps per channel
Audio Compression: G.711A; G.711U; PCM
Audio Sample Rate: 8 KHz, 16 bit per channel
Audio Bit Rate: 64 kbps per channel
Interface: 1 HDMI; 1 VGA
Resolution: 1920 × 1080; 1280 × 1024; 1280 × 720
Interface: 1 RJ-45 Port (100 MB)
Max. User Access: 128 users
USB: 2 USB ports (USB 2.0)
RS485: 1 port, for PTZ control
Power Supply: DC 12V/1.5A
Power Consumption: (Without HDD) < 4W
Dimensions: 260.0 mm × 237.9 mm × 47.6 mm
Weight: 0.84 kg
Warranty: 1 Year

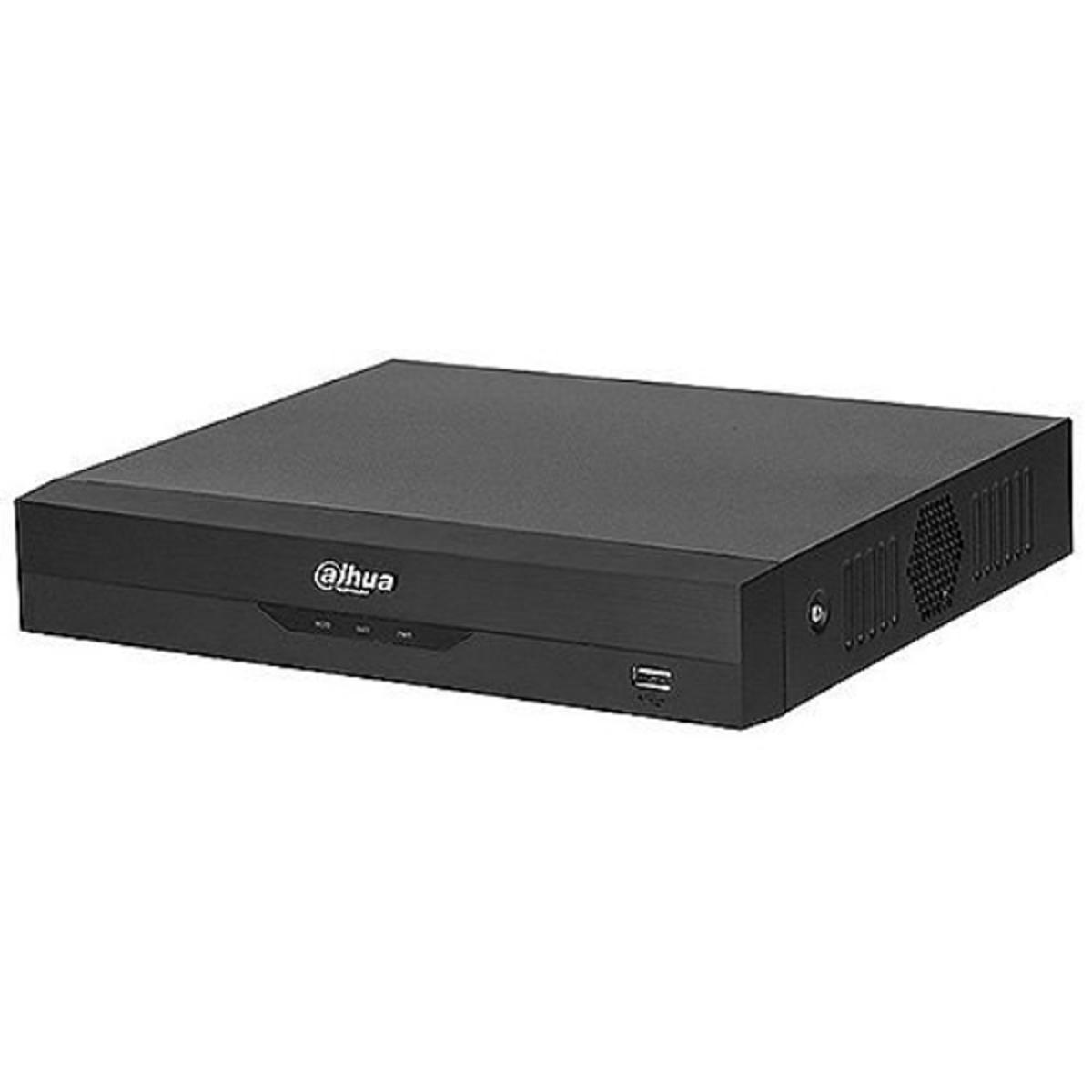

Dahua XVR5104HS-I3 4 Channel Penta-brid 5M-N/1080p Compact 1U 1HDD WizSense DVR

H.265+/H.265 video compression
Supports Full-channel AI-Coding
HDCVI/AHD/TVI/CVBS/IP Supported Camera
Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps Incoming Bandwidth
32 Mbps incoming bandwidth
Up to 1 channel video stream ( analog channel ) Perimeter Protection
Up to 4 channels video stream ( analog channel ) SMD Plus
Up to 1 channel video stream (analog channel ) human face recognition
1 Year Official Brand Warranty

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
