Specification
Brand: Dahua
Model: XVR4232AN-I
Color: Black
Main Processor: Industrial-grade processor
SMD Plus by Recorder: 16 channels-Secondary filtering for human
and motor vehicle SMD Plus, reducing false alarms caused by leaves,
rain and lighting condition change

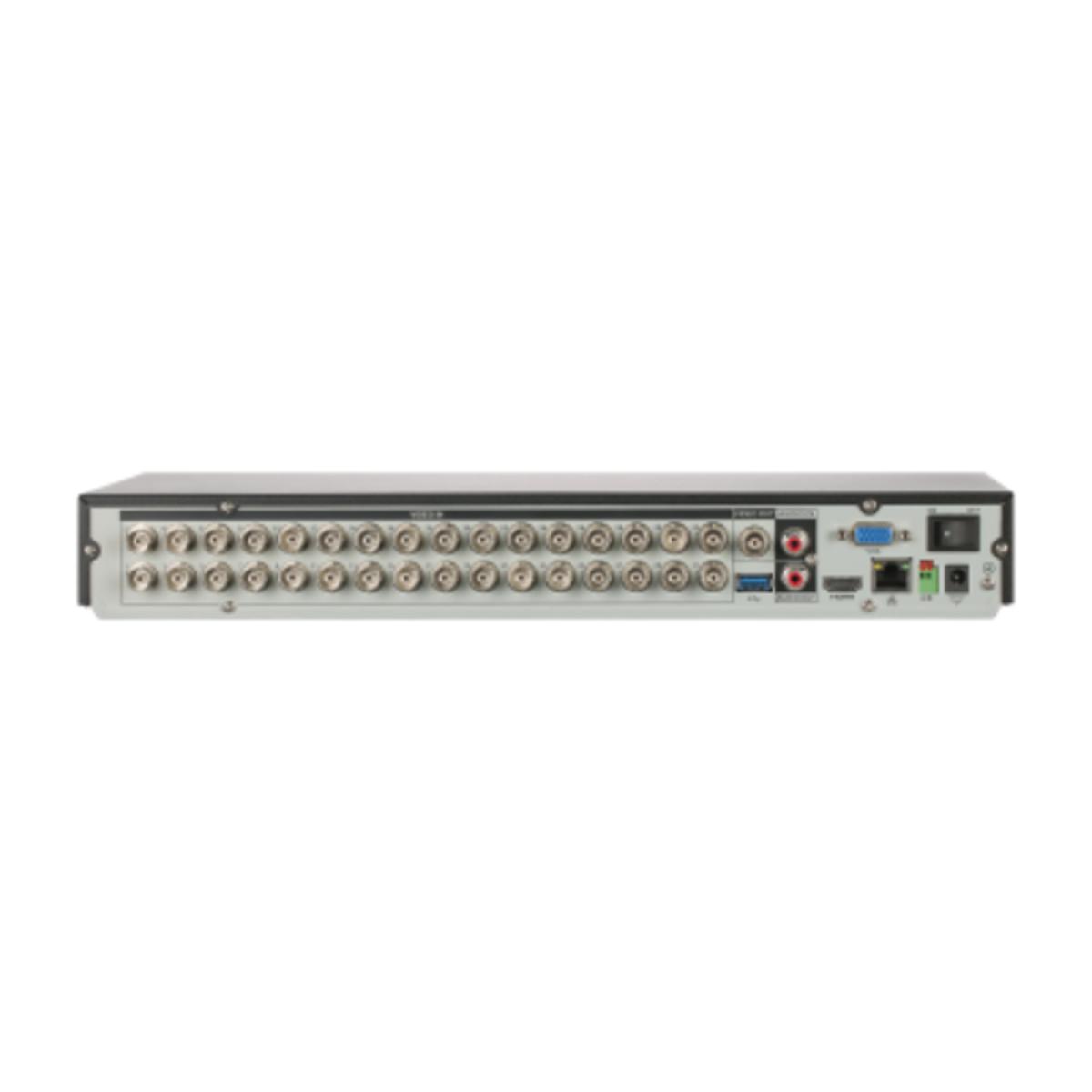

Analog Camera Input: 32 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect
IP Camera Input: Up to 16 channels of IPC access, 16 channels (analog channels are converted to IP channels)
Incoming bandwidth: 128 Mbps
Recording bandwidth: 128 Mbps
Outgoing bandwidth: 128 Mbps
Video Bit Rate: 32 kbps–6144 kbps per Channel
Audio Bit Rate: 64 kbps
Video Output: 1 HDMI, 1 VGA, 1 TV, VGA- 1920 × 1080, 1280 × 1024, 1280 × 720, HDMI-1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display: 1/4/8/9/16/25/36
Third-party Camera Access: Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
Video Compression: AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression: G.711A; G.711u; PCM
HDD Interface: 2 SATA ports,up to 16TB, the maximum HDD capacity
RS-485: 1 port
USB: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply: 12 VDC 4 A
Power Consumption: <12 W (without HDD)
Dimension: 433.0 mm × 141.0 mm × 366.0 mm
Weight 3.09 kg
Warranty: 1 Year
