Specifications
Brand: Dahua
Model: XVR4216AN-I
Main Processor: Industrial-grade processor
Operating System: Embedded Linux
Analog Camera Input: 16 channels, BNC: adaptive access by default; HDCVI,
Dual-stream: Yes
Video Bit Rate: 32 kbps–6144 kbps
Audio Sampling: 8 kHz, 16 bit
Audio Bit Rate: 64 kbps
Video Output: 1 HDMI, 1 VGA; HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display: 1/4/8/9/16
Third-party Camera Access: ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Audio Input: 1-channel RCA; 16-channel BNC (Coaxial Audio)
Audio Output: 1-channel RCA
Two-way Talk: Yes (share the same audio input with the first channel)
HDD Interface: 2 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-485: 1 port, for PTZ control
USB: 2 USB ports (USB 2.0)
HDMI: 1
VGA: 1
Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply: 12 VDC, 4 A
Power Consumption: <10 W
Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity: 0%–90% (RH)
Dimensions: 375.0 mm × 289.4 mm × 53.0 mm
Weight: 1.61 kg
Warranty: 1 Year

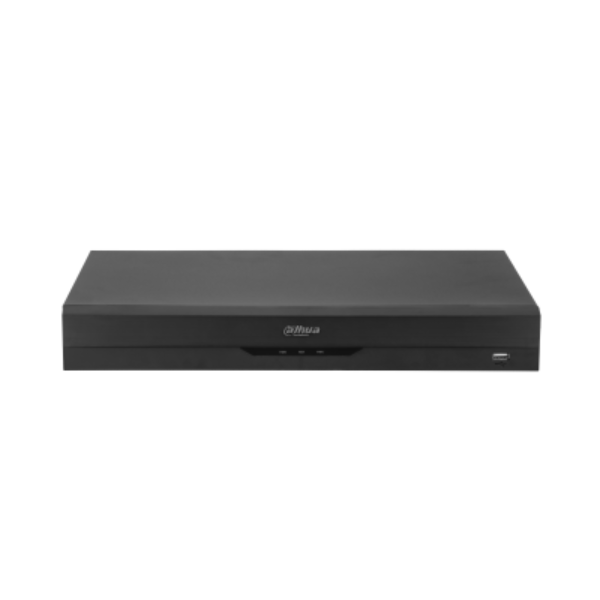

Dahua XVR4216AN-I 16 Channels Penta-brid 720P 1U 2HDDs DVR

H.265+/H.265 video compression
Supports Full-channel AI-Coding
HDCVI/AHD/TVI/CVBS/IP Supported Camera
Max 18 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps Incoming Bandwidth
Long transmission distance over coax cable
Up to 8 channels video stream (analog channel) SMD Plus
Supports 2 SATA HDD, up to 16 TB
1 Year Official Brand Warranty
