Specifications
Brand: Dahua
Model: XVR1B16H-I
Supported Camera: HDCVI/AHD/TVI/CVBS/IP Camera
Storage: 1 SATA Port, Up to 16 TB. Max. HDD Capacity
Main Processor: Embedded processor
Analog Camera Input: 16 channels, BNC
CVI/AHD/TVI: 1080p,720P
CVBS Camera Input: PAL/NTSC
IP Camera Input:Up to 24 channels of IPC access
16 IP channels by default + 8 channels
Video Compression: AI Coding/H.265+/H.265/H.264+/H.264
Audio Compression: G.711A/G.711u/PCM
Recording Backup Method: USB device and network
Multi-screen Display: When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
Third-party Camera Access: ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Network Protocol: HTTP; HTTPS; TCP/IP;IPv4 ; IPv6; UDP; SMTP; NTP; DHCP; DNS; DDNS:
USB: 2 USB ports (USB 2.0)
Power Supply: DC 12 V/2 A
Power Consumption: < 12 W
Dimensions: 333.0 mm × 89 mm × 315 mm
Weight: 1.43 Kg
Warranty: 1 Year

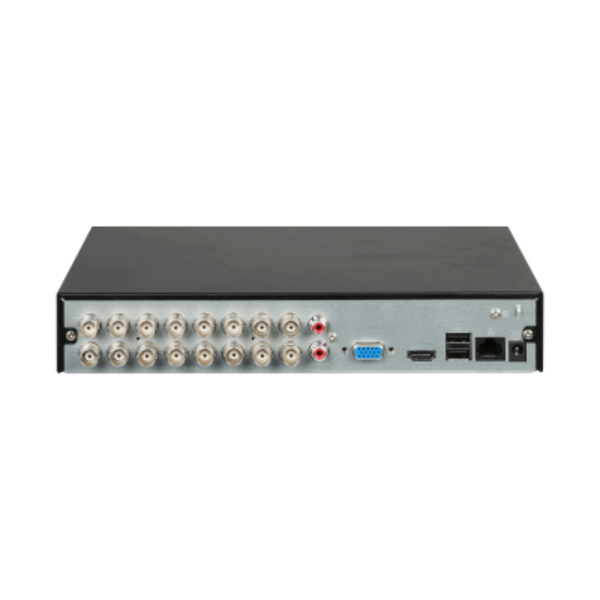

Dahua XVR1B16H-I 16-Channel Penta-brit 5 MP WizSense DVR

HDCVI/AHD/TVI/CVBS/IP Camera supported
H.265+/H.265 dual-stream video compression
Up to 16 channels video stream (analog channel) SMD Plus
Supports Full-channel AI-Coding
Max 24 channels IP camera inputs,
Up to 5MP; Max. 128 Mbps incoming bandwidth
1 SATA port, up to 16 TB Capacity
1 Year Official Brand Warranty

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
