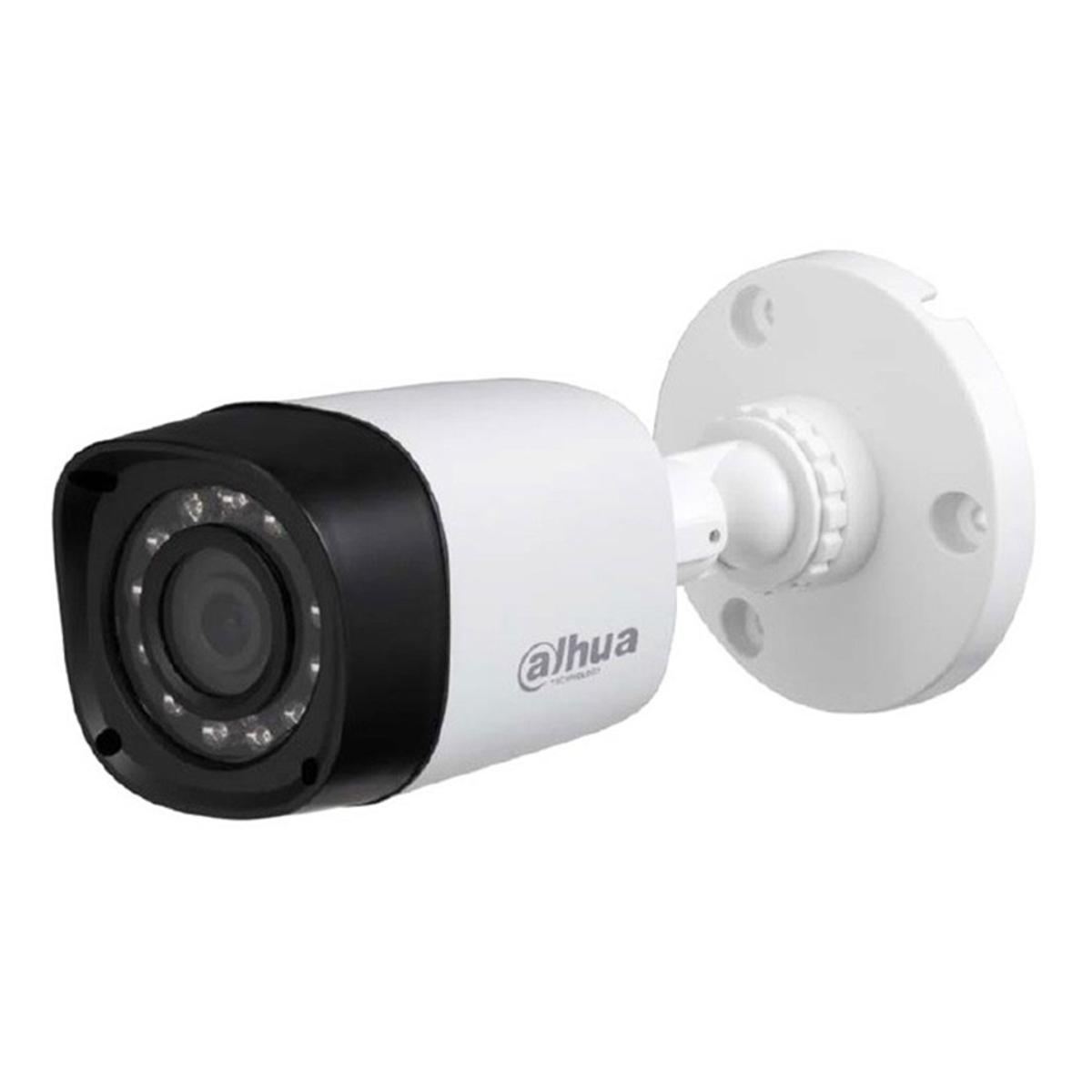

DAHUA HAC-HFW1400RP 4MP HDCVI IR BULLET Camera


Tk 2,800

DAHUA HAC-HFW1400RP 4MP HDCVI IR BULLET Camera

Feature

  • Resolution       : 4 MP/1520 P
  • Key Features   : 1 / 3" 4 MP COMS, ICR
  • Lens                 : 3.6mm (2.8mm, 6mm Optional)
  • Viewing Angle : H:84.80
  • Dahua
  • HD and SD output switchable
  • Max. IR length 20m, Smart IR
  • DC12V



Specification

Brand

Dahua

Model

Dahua DH-HAC-HFW1400RP-360B

Image Sensor

4MP CMOS Image Sensor

Effective Pixels

2560(H) × 1440(V), 4MP

Scanning System

Progressive

Min. Illumination

0.03Lux/F2.0, 30IRE, 0Lux IR on

Shutter Time

PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s

Lens

Fixed lens / Fixed iris, F2.0 – 3.6mm , Angle of view:H: 76.4° (97°/48.6°) V: 41.6° (52°/27.9°)

Lens Mount

Board-in

Adjustment Range

Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°

Day & Night

Auto (ICR) / Manual

Video Frame Rate

25/30fps@4MP, 25/30fps@1080P

HD Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

S/N Ratio

More than 65 dB

Auto White Balance

Auto / Manual

BLC

BLC / HLC / DWDR

AGC

Support

Language

Multi-language

Noise Reduction

2D

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Power Supply

12V DC ±30%

Power Consumption

Max 3.7W (12V DC, IR on)

IR Range

Up to 20m

Dimension

154.3 × 69.8 × 69.8 mm

Weight

150 g






DAHUA HAC-HFW1400RP 4MP HDCVI IR BULLET Camera

Feature

  • Resolution       : 4 MP/1520 P
  • Key Features   : 1 / 3" 4 MP COMS, ICR
  • Lens                 : 3.6mm (2.8mm, 6mm Optional)
  • Viewing Angle : H:84.80
  • Dahua
  • HD and SD output switchable
  • Max. IR length 20m, Smart IR
  • DC12V

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
