Specification
Brand: Dahua
Model: DH-IPC-HFW1230S1-A
Image Sensor: 1/2.8" CMOS
Max. Resolution: 1920 (H) × 1080 (V)
ROM: 16 MB
RAM: 64 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination: 0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (Illuminator on)
S/N Ratio: > 56 dB
Illumination Distance: 30 m (98.43 ft) (IR)
Illuminator On/Off Control: Auto; manual
Illuminator Number: 1(IR LED)
Pan/Tilt/Rotation Range: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 2.8 mm; 3.6 mm
Max. Aperture: 2.8 mm: F2.0; 3.6 mm: F2.0
Field of View: 2.8 mm: Horizontal: H: 102°; V: 54°; D: 120°, 3.6 mm: Horizontal: H: 88°; V: 47°; D: 104°
Iris Control: Fixed
Close Focus Distance: 2.8 mm: 0.5 m (1.64 ft); 3.6 mm: 0.8 m (2.62 ft)
Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported
by the sub stream)
Smart Codec: Smart H.265+; Smart H.264+
Stream Capability 2 streams
Resolution: 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
(352 × 288/352 × 240)
Bit Rate Control: CBR/VBR
Video Bit Rate: H.264 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Day/Night: Auto (ICR)/Color/B/W
Built-in MIC: Yes
Audio Compression: G.711A; G.711Mu; G.726
Power Supply: 12 VDC/PoE (802.3af)
Power Consumption: Basic: 1.2 W (12 VDC); 2 W (PoE); Max. (ICR + H.265 + IR intensity): 3.2 W (12 VDC); 4.1 W(PoE)
Casing: Metal + plastic
Dimensions: 162.6 mm × 70 mm× 70 mm
Weight: 0.22kg
Warranty: 1 Year

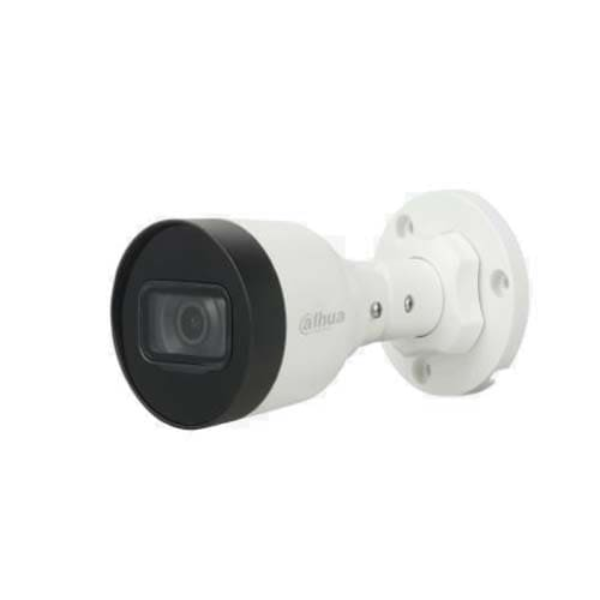

Dahua DH-IPC-HFW1230S1-A 2 MP Entry IR Fixed-focal Bullet Network Camera

2-MP 1/2.8" CMOS Image Sensor
2 MP (1920 × 1080)@25/30 fps.
H.265 codec, High Compression Rate, Ultra-Lowbit Rate
Built-in Audio, IR LED and the max. Illumination Distance is 30 m
ROI, SMART H.264+/H.265+, Flexible Coding
Rotation mode, DWDR, 3D NR,HLC, BLC, digital watermarking,
12 VDC/PoE power
1 Year Official Brand Warranty

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
