Specifications
Brand: Dahua
Model: DH-IPC-HFW1230MP-A-I2
Image Sensor: 1/2.8″ CMOS
Max. Resolution: 1920 (H) × 1080 (V)
ROM: 16 MB
RAM: 64 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination: 0.01 Lux @F2.0
S/N Ratio: > 56 dB
Illumination Distance: 3.6 mm: 30 m (98.4 ft); 6 mm: 50 m (164.0 ft); 8 mm: 60 m (196.9 ft)
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 3.6 mm; 6 mm; 8 mm; 3.6 mm: F2.0
Max. Aperture: 6 mm: F2.0; 8 mm: F2.0
Iris Control: Fixed
Video Compression: H.265; H.264; H.264B; MJPEG (only supported by the
sub stream)
Smart Codec: Smart H.265+/Smart H.264+
Video Frame Rate: Main Stream: 1920 × 1080 (1 fps–25/30 fps); Sub stream: 704 × 576 (1 fps–25 fps),
704 × 480 (1 fps–30 fps)
Stream Capability: 2 streams
Resolution: 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control: CBR/VBR
Video Bit Rate: H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6400 kbps
Day/Night: Auto (ICR)/Color/B/W
WDR: DWDR
Gain Control: Auto/Manual
Noise Reduction: 3D NR
Built-in MIC: Yes
Audio Compression: G.711A; G.711Mu; G.726; PCM
Network: RJ-45 (10/100 Base-T)
Power Supply: 12V DC/PoE (802.3af)
Basic power consumption: 1.5W (12V DC); 2.3W (PoE)
Max. power consumption: 5.1W (12V DC); 6.4W (PoE)
Casing: Metal + plastic
Dimensions: 194 mm × 96 mm × 89 mm
Weight: 0.64 kg
Warranty: 1 Year

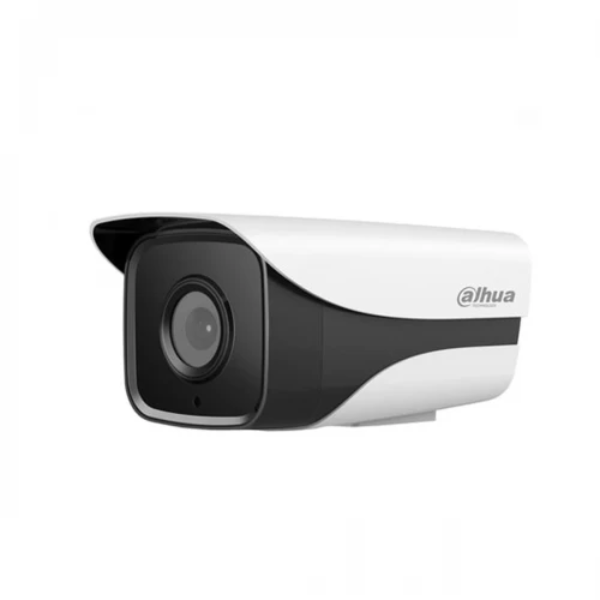

Dahua DH-IPC-HFW1230MP-A-I2 2MP IR Bullet Network Camera

2MP 1/2.8" CMOS Image Sensor, Low Illuminance, High Image Definition
Outputs max. 2MP (1920 × 1080) @25/30 fps
H.265 Codec, High Compression Rate, Ultra-low Bit Rate
Built-in Efficient IR Illuminator, and the max. illumination distance is 60 m
ROI, SMART H.264+/H.265+, Flexible Coding
Rotation Mode, DWDR, 3D NR, HLC, BLC, Digital Watermarking
Abnormality detection
1 Year Official Brand Warranty

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
