Specifications
Brand: Dahua
Model: DH-IPC-HDW2431TP-AS
Image Sensor: 1/3” 4Megapixel progressive CMOS
Max. Resolution: 2688 (H) × 1520 (V)
ROM: 128 MB
RAM: 128 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
S/N Ratio: 56dB
Min. Illumination: 0.08 Lux @ F1.6
Illumination Distance: 30 m (98.4 ft)
Illuminator On/Off Control: Auto/Manual
Illuminator Number: 2
Lens Type: Fixed-focal
Mount Type: M12
Focal Length: 2.8 mm, 3.6 mm
Max. Aperture: F1.6
Iris Type: Fixed
Video Compression: H.265; H.264; H.264B; MJPEG
Smart Codec: Smart H.265+/ Smart H.264+
Stream Capability: 2 streams
Bit Rate Control: CBR/VBR
Video Bit Rate: H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps
Day/Night: Color/B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
White Balance: Auto/Natural/Street Lamp/Outdoor/Manual/regional custom
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zone, Rectangle)
Region of Interest: Off / On (4 Zone)
Built-in MIC: Yes
Audio Compression: G.711A; G.711Mu; G.726
Ethernet: RJ-45 (10/100Base-T)
Power Supply: 12V DC/PoE
Casing: Metal+Plastic
Dimensions: 100.9 mm × Φ109.9 mm
Weight: 0.39 kg
Warranty: 1 Year

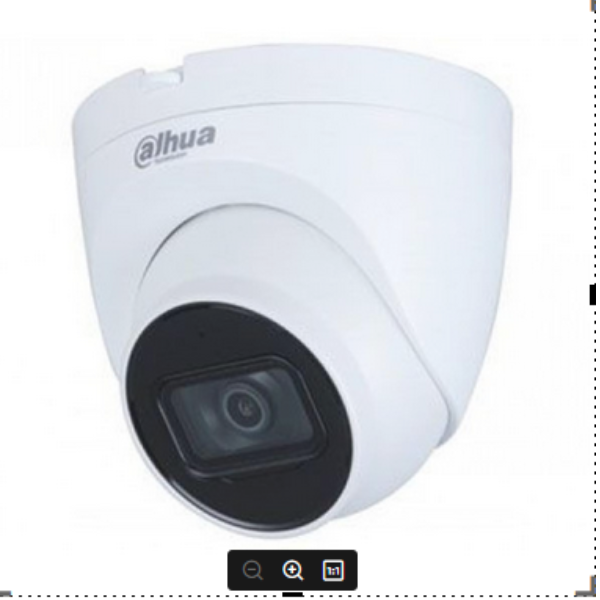

Dahua DH-IPC-HDW2431TP-AS 4MP IR-30M IR Dome Network Camera

• 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
• Outputs 4MP (2560 × 1440)@25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED, max IR distance: 30 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
• Max. 256 GB SD card and built-in Mic, 12V DC/POE power supply, IP67 protection
• 1 Year Warranty

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
