Specifications
Brand: Dahua
Model: DH-IPC-HDW1431T1
Image Sensor: 1/3” 2Megapixel progressive CMOS
Max. Resolution: 2688 (H) ×1520 (V)
ROM: 128 MB
RAM: 128 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
S/N Ratio: > 56 dB
Min. Illumination: 0.03 Lux @ F2.0
Illumination Distance: 30 m (98.4 ft)
Illuminator On/Off Control: Auto/Manual
Illuminator Number: 1(IR LED)
Lens Type: Fixed-focal
Mount Type: M12
Focal Length: 2.8 mm, 3.6 mm
Iris Type: Fixed
Close Focus Distance: 2.8 mm: 0.8 m (2.6 ft); 3.6 mm: 1.4 m (4.6 ft)
Video Compression: H.265; H.264; H.264B; MJPEG
Smart Codec: Smart H.265+/ Smart H.264+
Video Frame Rate: Main Stream: 2688 × 1520 (1 fps–20 fps), 2560 × 1440 (1 fps–25/30 fps); Sub Stream: 704 × 576 (1 fps–20/25 fps), 704 × 480 (1 fps–20/30 fps)
Stream Capability: 2 streams
Bit Rate Control: CBR; VBR
Video Bit Rate: H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Day/Night: Auto(ICR)/Color/B/W
WDR: 120 dB
White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control: Manual/Auto
Noise Reduction: 3D NR
Motion Detection: OFF/ON
Network: RJ-45 (10/100 Base-T)
Power Supply: 12V DC/POE (802.3af)
Power Consumption: < 5.1W
Casing: Inner core:metal+ plastic; cover:plastic
Dimensions: 85.5 mm × Φ109 mm (3.4" × Φ4.3")
Weight: 0.25 kg
Warranty: 1 Year

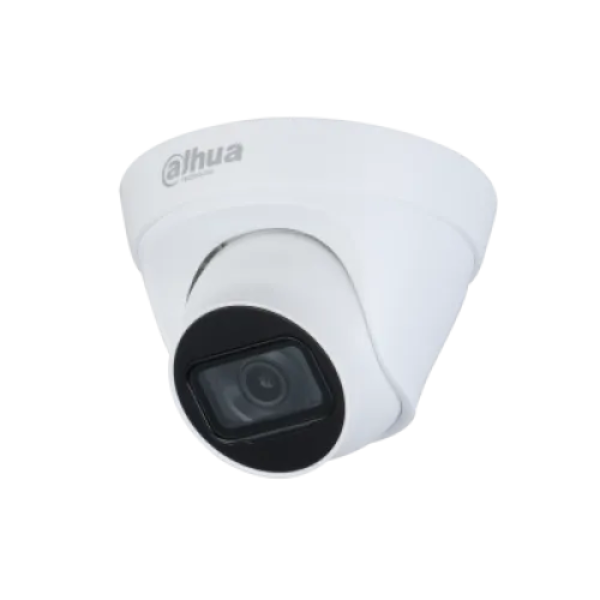

Dahua DH-IPC-HDW1431T1 2MP IR Bullet Network Camera IR 30M

2MP, 1/3” CMOS Image Sensor, Low Illuminance, High Image Definition
Outputs 2MP (2560 × 1440) @25/30 fps, and Supports Max. 2MP (2688 × 1520) @20 fps
H.265 codec, High Compression Rate, Ultra-Low Bit Rate
Built-in IR LED, Max. IR Distance: 30 m, ROI, SMART H.264/H.265, Flexible Coding,
Image Rotation, WDR, 3D DNR, HLC, BLC, Digital Watermarking
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection
12V DC/PoE power support, IP67, protection
1 Year Official Brand Warranty
