Specifications
Brand: Dahua
Model: DH-IPC-HDW1230T1
Image Sensor: 1/2.7" 2 Megapixel progressive CMOS
Effective Pixels: 1920 (H) × 1080 (V)
ROM: 16 MB
RAM: 64 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
Min. Illumination: 0.01 Lux @F2.0
IR Distance: 30 m (98.4 ft)
IR On/Off Control: Auto/Manual
IR LEDs Number: 1
Pan/Tilt/Rotation Range: Horizontal: 0°–355°, Vertical: 0°–78°, Rotation: 0°–360°
Lens Type: Fixed-focal
Mount Type: M12
Focal Length: 2.8 mm; 3.6 mm
Max. Aperture: F2.0, F2.0
Field of View:
2.8 mm: Horizontal: 105°; Vertical: 57°; Diagonal: 125°
3.6 mm: Horizontal: 87°; Vertical: 47°; Diagonal: 104°
Iris Type: Fixed aperture
Video Compression: H.265; H.264; H.264H; H.264B; MJPEG
Video Frame Rate:
Main Stream: 1920 × 1080 (1 fps–25/30 fps)
Sub stream: 704 × 576 (1 fps–25 fps); 704 × 480 (1 fps–30 fps)
Video Bit Rate: H.264: 32 Kbps–6144 Kbps; H.265: 12 Kbps–6400 Kbps
Day/Night: Auto(ICR)/Color/B/W
Network: RJ-45 (10/100 Base-T)
Power Supply: 12V DC/PoE (802.3af)
Power Consumption: <4.3 W
Dimensions: 85.5 mm × Φ109 mm
Weight 0.24 kg
Warranty: 1 Year

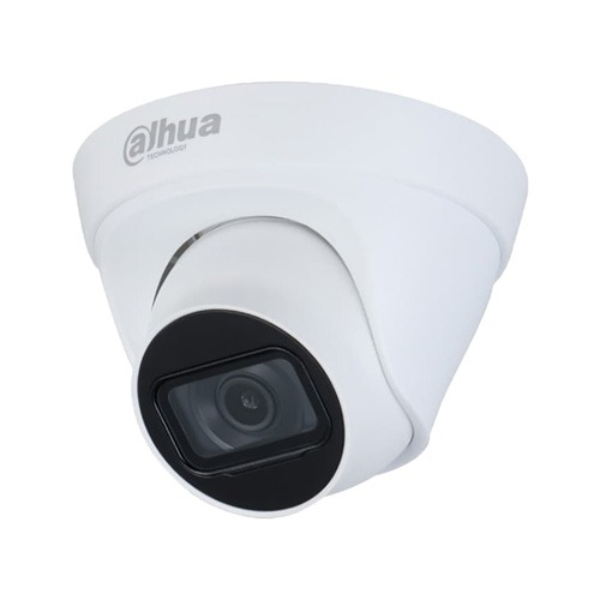

Dahua DH-IPC-HDW1230T1 2MP Entry IR Fixed-Focal Dome Netwok Camera

2MP, 1/2.7” CMOS Image Sensor, Low Illuminance, High Image Definition
Outputs Max. 2MP (1920 × 1080) @25/30 fps
H.265 codec, High Compression Rate, Ultra-Low Bit Rate
Built-in IR LED, Max. IR Distance: 30 m
ROI, SMART H.264/H.265, Flexible Coding, Applicable to Various
Rotation mode, DWDR, 3D DNR, HLC, BLC, Digital Watermarking,
12V DC/PoE Power Support, IP67 Protection
1 Year Official Brand Warranty

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
