Specifications
Brand: Dahua
Model: DH-HAC-HFW1509TLMP-A-LED
Image Sensor: 5MP CMOS
Max. Resolution: 2880 (H) × 1620 (V)
Pixel: 5MP
Scanning System: Progressive
Lens Type: Fixed lens
Mount Type: M12
Focal Length: 2.8 mm; 3.6 mm
Max. Aperture: F1.0
Field of View: 2.8 mm: H: 112°; V: 57°; D: 132°; 3.6 mm: H: 88; V: 46°; D: 104°
Iris Type: Fixed iris
Close Focus Distance: 2.8 mm: 1.6 m (5.25 ft);3.6 mm: 2.3 m (7.5 ft)
Focal Length: 2.8 mm; 3.6 mm
Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
BLC: BLC/HLC/WDR/HLC-Pro
WDR: 120 dB
White Balance: Auto; Area WB
Gain Control: Auto; manual
Noise Reduction: 3D NR
Smart Light: Yes
Mirror: Off/On
Privacy Masking: Off/On (8 areas, rectangle)
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input: One channel built-in mic (-A)
Casing: Metal inner core + plastic cover + plastic pedestal
Camera Dimensions: 198.4 mm × 80.2 mm × 76.2 mm
Weight: 0.33 Kg
Warranty: 1 Year

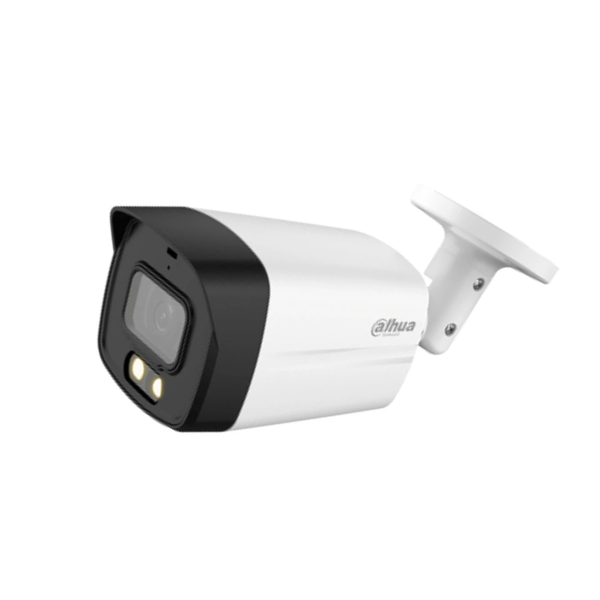

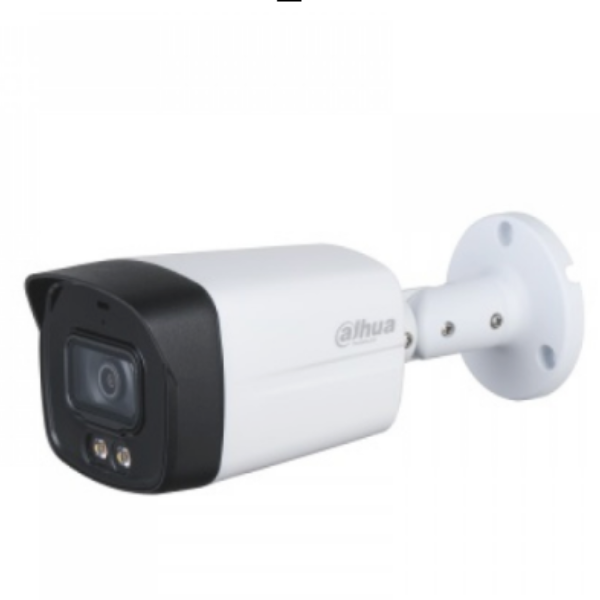

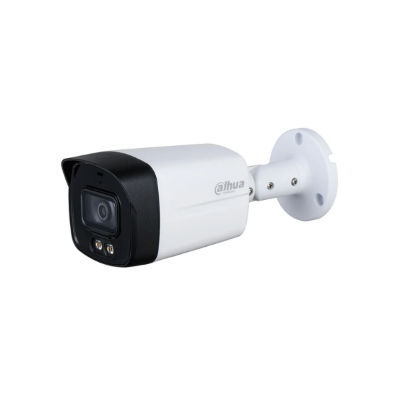

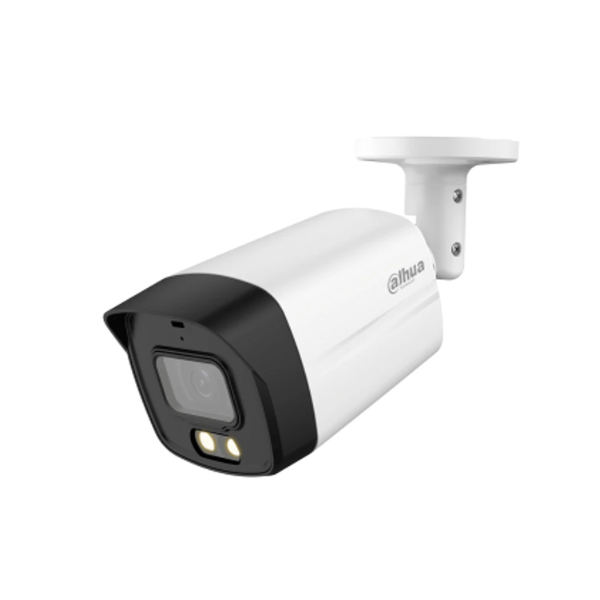

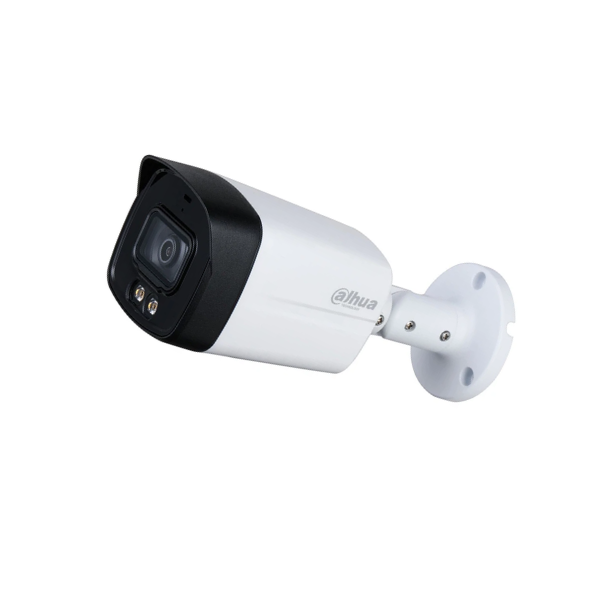

Dahua DH-HAC-HFW1509TLMP-A-LED 5MP Full-color HDCVI Eyeball Camera

Max. 20fps@5MP
3.6 mm fixed lens
Built-in Audio
40 m LED distance
CVI/CVBS/AHD/TVI switchable
Full-color starlight
IP67, 12V±30% DC
1 Year Official Brand Warranty

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
