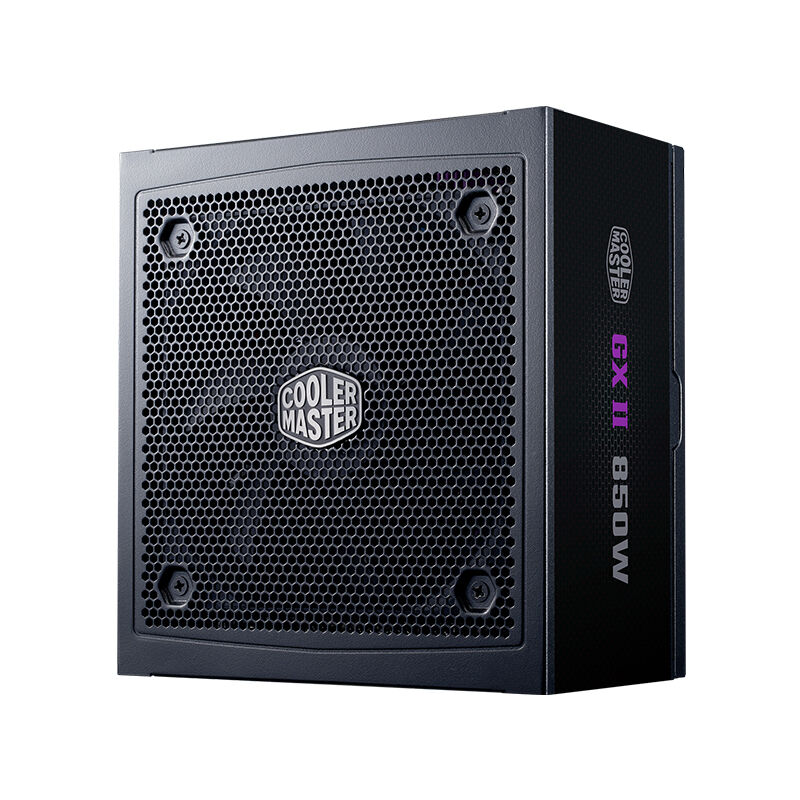

Brand: Cooler Master
Model: MPX-8503-AFAG-2BEU
ATX 3.0 support & a durable 12VHPWR cable
80 Plus Gold certified efficiency
Silent fan performance with a zero-RPM mode
Separated thermal technologies
Fully modular cabling
Efficiency: ≥90% @ Typical Load
FAN BEARING: HDB
FDD CABLE 4-PIN CONNECTORS: 1
HOLD UP TIME: ≥16ms at 80% Load
INPUT CURRENT: 10-5A
INPUT FREQUENCY: 50-60Hz
INPUT VOLTAGE: 100-240V
MB 20+4 PIN CONNECTORS: 1
MTBF: >100,000 Hours
OPERATING TEMPERATURE: 0-40°C
PCI-E 6+2 PIN CONNECTORS: 4
PERIPHERAL 4-PIN CONNECTORS: 2
PFC: Active PFC
POWER GOOD SIGNAL: 100 - 150 ms
PROTECTIONS: OPP, OVP, OTP, OCP, SCP, UVP, Surge and Inrush Protection
REGULATORY: cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.)
SATA CONNECTORS: 6
Series: GX Series
Wattage Above: 750W
Certification: 80 PLUS Gold
Fan Size: 120mm
Modular Type: Fully Modular
Dimensions: 160 x 150 x 86 mm
Warranty: 10 Year
Warranty: 10 Year warranty.
