Specifications

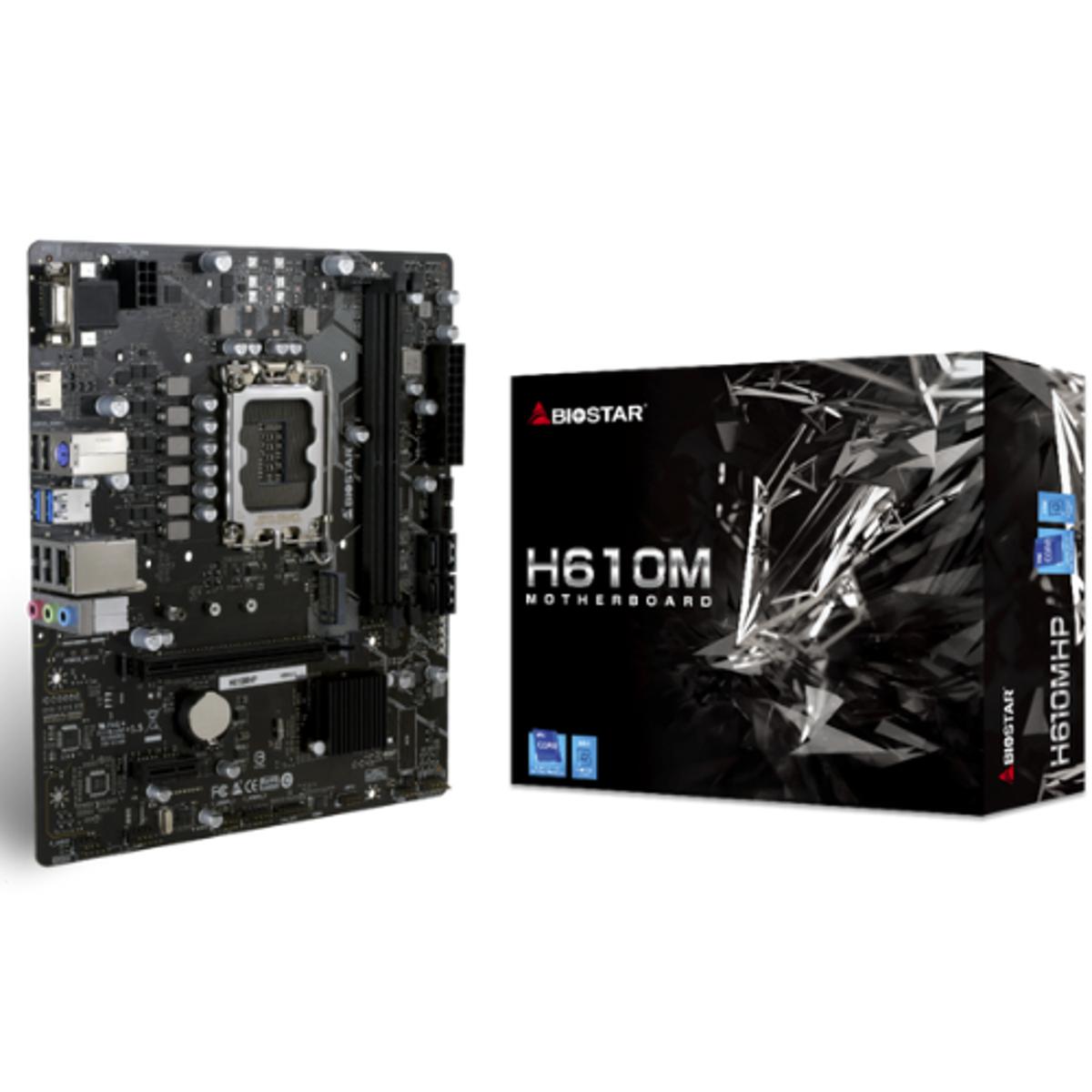

Brand: Biostar

Model: H610MHP

Chipset: Intel H610

CPU Support: Support for 12th/ 13th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package

Memory: Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200; 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory; Each DIMM supports non-ECC 4/8/16/32GB DDR4 module; Support Intel Extreme Memory Profile (XMP) memory modules

Integrated Video: Supports DX12; Supports HDCP

Storage: Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports; 4 x SATA III Connector (6Gb/s); 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_ SATA); Supports M.2 Type 2240 /2260 /2280 SSD module; Supports PCI-E 3.0 x4 (32Gb/s) & SATA SSD

LAN: Intel I219V; 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

Audio Codec: ALC897; 7.1 Channels, High Definition Audio

USB: 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers); 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)

Expansion Slot: 1x PCIe 3.0 x1 Slot; 1x PCIe 4.0 x16 Slot

Rear I/O:

- 1 x PS/2 Keyboard/Mouse Port

- 1 x HDMI

- 1 x VGA Port

- 2 x USB 3.2 (Gen1) ports

- 4 x USB 2.0 ports

- 1 x LAN port

- 3 x Audio Jack

Internal I/O

- 4 x SATA III Connectors (6Gb/s)

- 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)

- 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

- 1 x 8-Pin Power Connector

- 1 x 24-Pin Power Connector

- 1 x CPU Fan Connector

- 1 x System Fan Connector

- 1 x Front Panel Header

- 1 x Front Audio Header

- 1 x Internal Stereo Speaker Header

- 1 x Clear CMOS Header

- 1 x COM Port Header

- 1 x TPM Header

OS Support: Supports Windows 10 (64bit) / 11(64bit)

Dimension: 20.8cm x 23.6cm

Warranty: 3 Years
