• Test Procedure

Preparing the Lancing Device

1) Hold the depth adjustable cap in one hand and hold the hub in the other hand. Bend the cap towards the down side. When a gap appears between the cap and hub, pull them off in opposite directions.

2) Pull off the depth adjustable cap.

3) Insert a new disposable lancet firmly into lancet carrier.

4) Twist off and set aside the protective cover of the disposable lancet.

5) Replace the depth adjustable cap.

6) Choose a depth of penetration by rotating the top portion of the depth adjustable cap until the setting depth matches the window. Settings are based on skin type ” “ for soft or thin skin; ”“ for average skin; ” “ for thick or calloused skin.

7) Hold the hub in one hand and pull on the plunger in the other hand. The device will be cocked. Release the plunger, it will automatically move back to its original position near the hub.

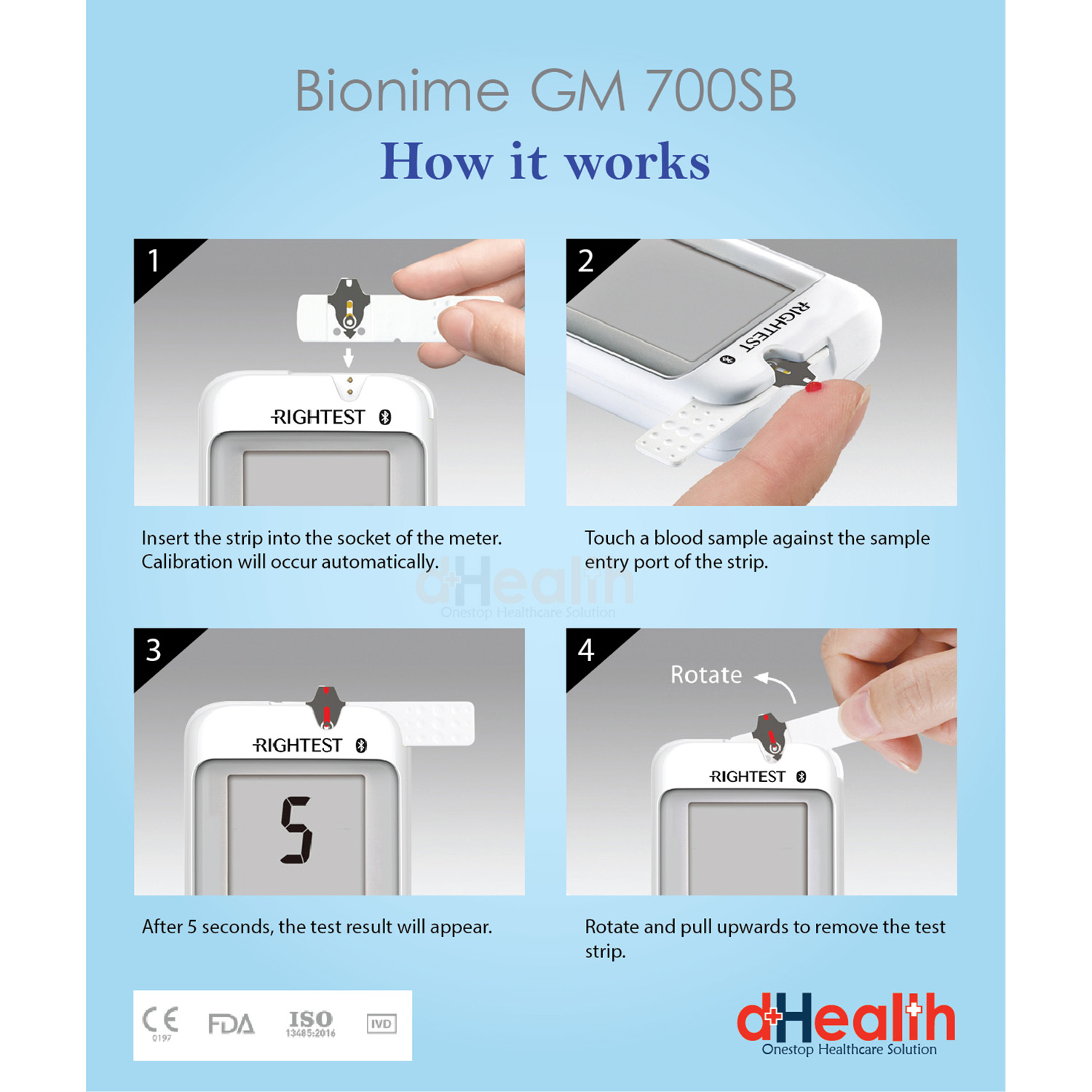

Performing a Test

1) Wash your hands with warm soapy water and dry thoroughly

2) Take one test strip from the vial. Re-cap the vial cap immediately.

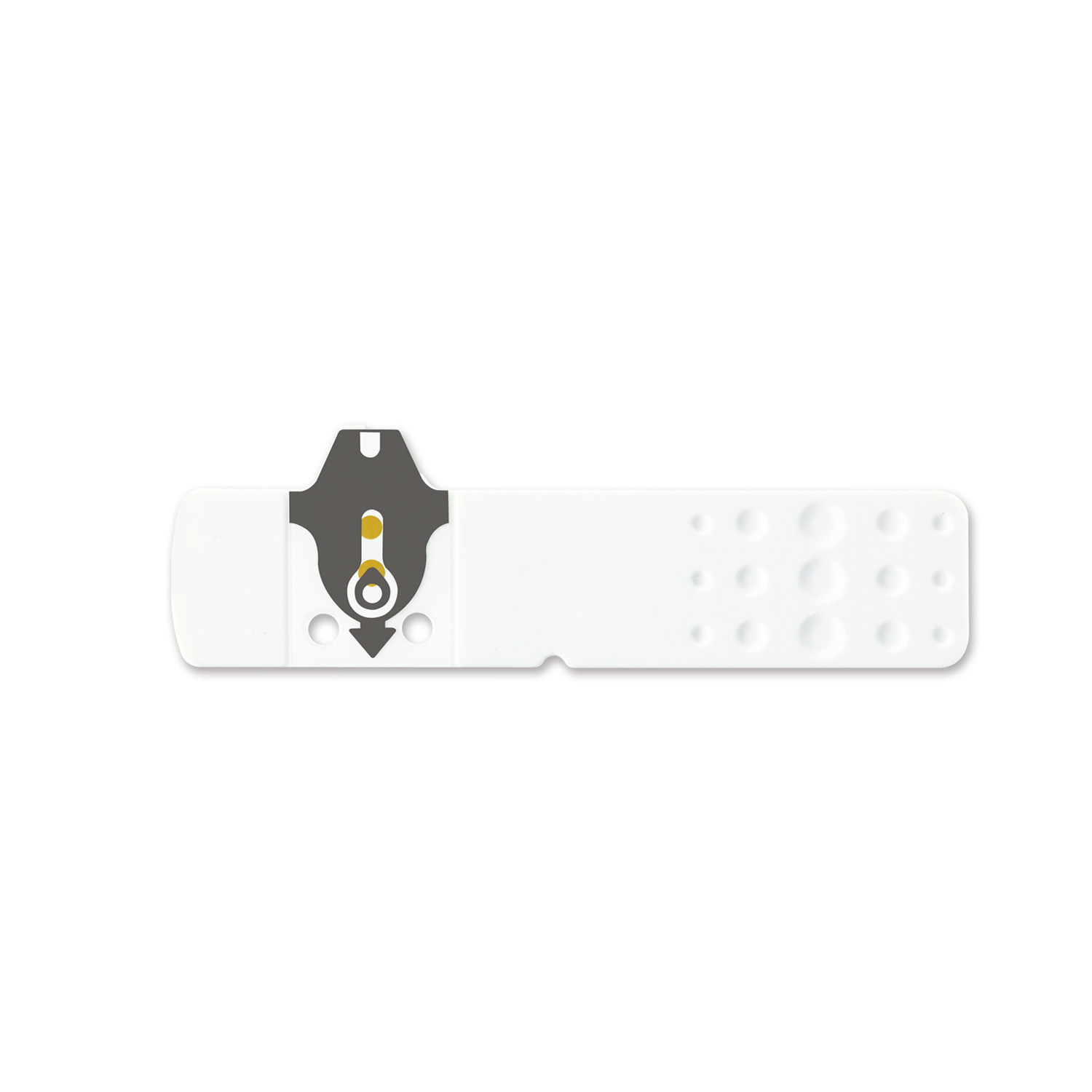

3) Insert the test strip into the test strip port of the meter with the indication symbol facing up.

4) While the blood drop symbol is flashing, you are ready to apply the blood sample within 2 minutes.

5) Place the lancing device against the pad of your fingertip and press the release button.

Sample Size Example : Please take a minimum of 0.75 μL to do the test on glucose monitoring system. Blood sample size above 3.0 μL might contaminate the meter.

6) Touch and hold the drop to the edge of sample entry until you hear a " beep " (if volume is turned on) and the View Window is totally filled with blood. If the View Window is not totally filled with blood, the meter will show Er4. Please discard the test strip and repeat the test with a new test strip.

7) You will see the countdown mode on the screen. After 5 seconds, the test result appears.

8) Remove the test strip from the meter. Please follow the local regulation and discardthe used test strip properly.

9) To remove the lancet, pull off the depth adjustable cap of lancing device. Without touching the used disposable lancet, stick the lancet tip into the protective cover. Hold the release button of lancing device in one hand and pull on the plunger in the other hand will safely eject the used disposable lancet into an appropriate puncture-proof or biohazard container.

Read the instructions carefully before using this device
