Brand: Asus

Model: TUF GAMING A520M-PLUS II

CPU: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Chipset: A520

Memory: 4 x DIMM, Max. 128GB, DDR4

4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*

Graphics: 1 x DisplayPort 1.2

-1 x HDMITM 2.1(4K@60Hz)

-1 x D-Sub

Expansion Slots: AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

-1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots

PCI: 4.0

Storage: AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset 4 x SATA 6Gb/s ports Support RAID 0, 1, 10

Ethernet: 1 x Realtek 1Gb Ethernet TUF LANGuard

Memory Slots: 4

Memory Type: DDR4

USB: 4 x USB 3.2 Gen 1 ports (4 x Type-A)

-2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 6 ports

-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

-2 x USB 2.0 headers support additional 3 USB 2.0 ports

Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*

- Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

Back Panel I/O Ports: 4 x USB 3.2 Gen 1 ports (4 x Type-A)

-2 x USB 2.0 ports (2 x Type-A) 1 x BIOS FlashBack™ button

-1 x DisplayPort

-1 x HDMI port

-1 x D-Sub

-1 x Realtek 1Gb Ethernet port

-3 x Audio jacks

-1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors: Fan and cooling related

-1 x 4-pin CPU Fan header

-2 x 4-pin Chassis Fan headers

Power related:

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

-1 x M.2 slot (Key M)

-4 x SATA 6Gb/s ports

USB:

-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

-2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous:

-2 x AURA Addressable Gen 2 header

-2 x AURA RGB headers

-1 x Clear CMOS header

-1 x COM Port header

-1 x Front Panel Audio header (AAFP)

-1 x S/PDIF Out header

-1 x Speaker header

-1 x SPI TPM header (14-1pin)

-1 x 10-1 pin System Panel header

Special Features: ASUS TUF PROTECTION

- DIGI+ VRM

- ESD Guards

- TUF LANGuard

- Overvoltage Protection

- SafeSlot Core+

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

AURA Sync

- AURA RGB headers

- Addressable Gen 2 RGB headers

Software Features ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert 2+

- EZ update

- PC Cleaner

- System Information

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Manageability: WOL by PME, PXE

Form Factor: microATX 24.4cm x 24.4cm

Warranty: 03-Years Official Warranty

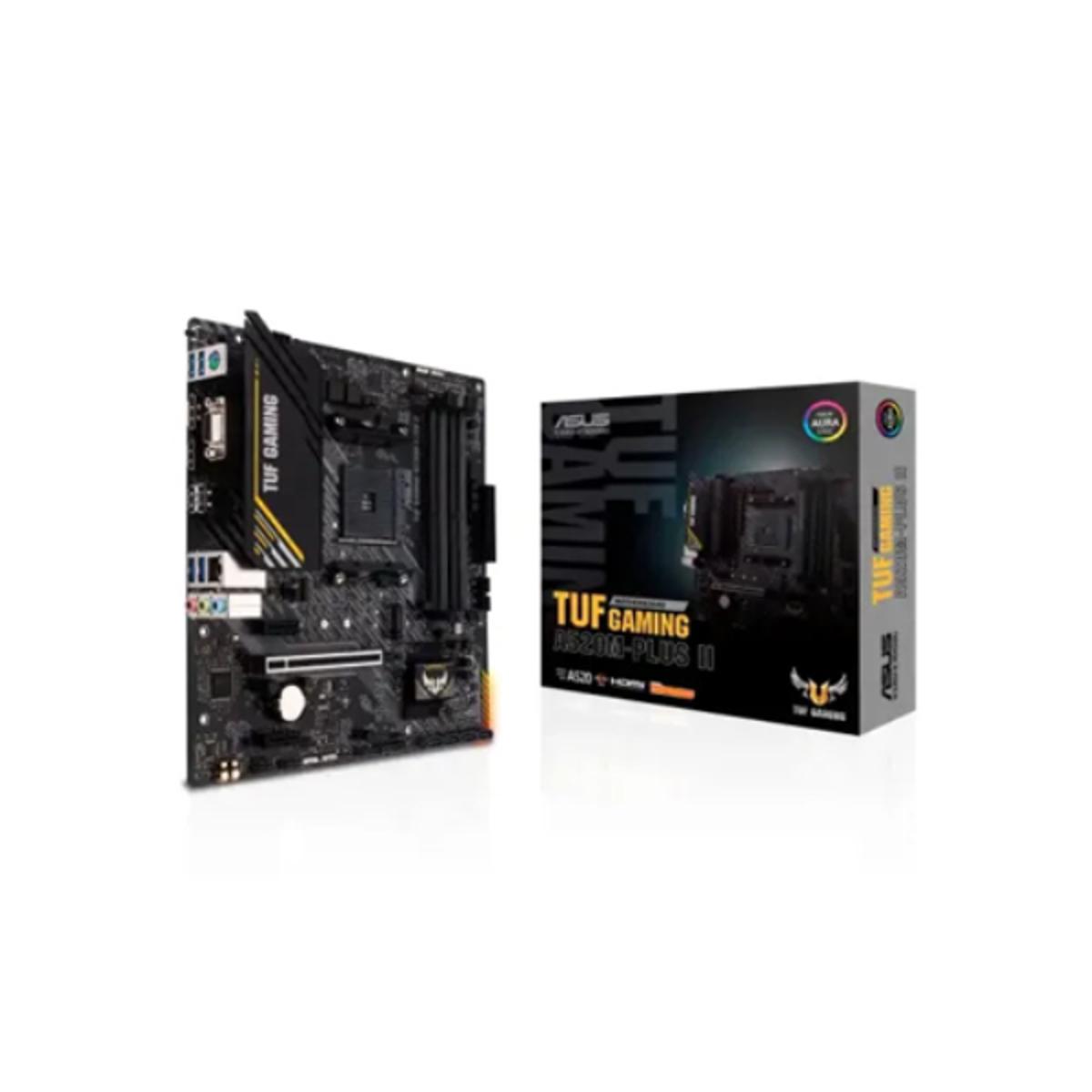

ASUS TUF GAMING A520M-PLUS II micro ATX Motherboard

AMD A520 Chipset for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

AM4 Socket

1X M.2 slot with PCIe 3.0 x4

6x Front ports And 6x Rear USB ports

4 x DIMM, Max. 128GB, DDR4 Memory

Warranty: 3 Years warranty.
