Specification:

Brand: Asus

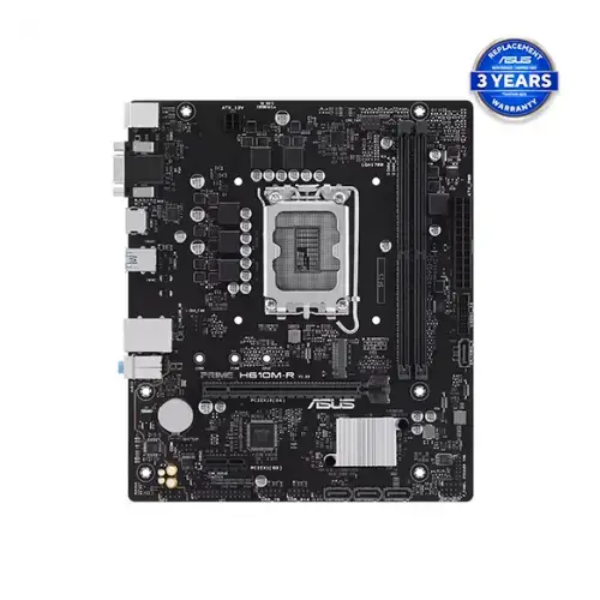

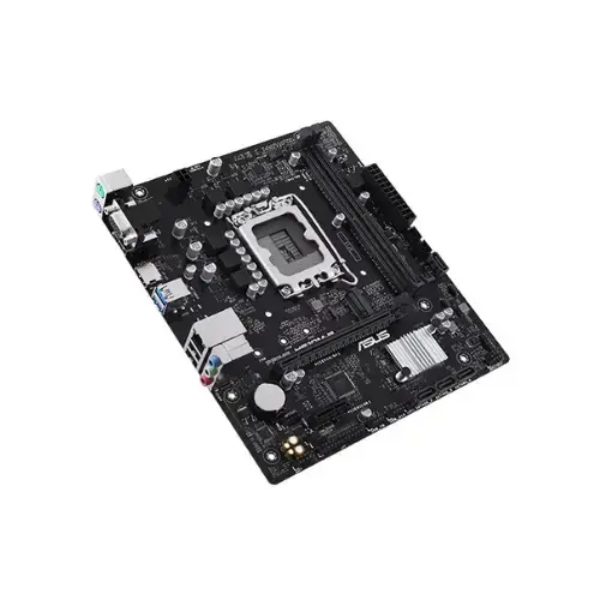

Model: Prime H610M-R

Product Type: Desktop Motherboard

Form Factor: Micro-ATX

Body Color: Black

Chipset Brand: Intel

Chipset: Intel H610

Sockets Supported: LGA1700

CPU Supported: 14th Gen, 13th Gen & 12th Gen Processors

Memory Type: DDR5

Memory Speed (MHz): 5600/5400/5200/5000/4800 Non-ECC,

Un-buffered Memory

Memory Slot: 2

Memory Max: Max.96GB

HDD Interface: SATA

SSD Interface: M.2

SSD Slot: 1

Graphics Chipset: Integrated With Processor

Expansion Slots: 1 x PCIe 4.0 x16 slot

1 x PCIe 3.0 x1 slots

Audio Chip: Realtek 7.1 Surround Sound High Definition Audio CODEC

Ethernet LAN:

1 x Realtek 1Gb Ethernet

USB:

Rear USB (Total 4 ports)

2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support an additional 4 USB 2.0 ports

Audio Jack: 3 x Audio jacks

BIOS Type: 128 Mb Flash ROM

BIOS Model: UEFI AMI BIOS

Power Consumption: 60W

Others:

WOL by PME, PXE Manageability

Dimensions: 226 x 195 mm

Warranty: 3 Years

Country Of Origin: Taiwan

Made in: China
