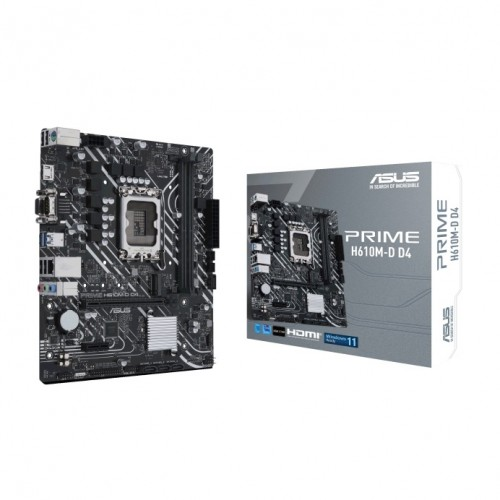

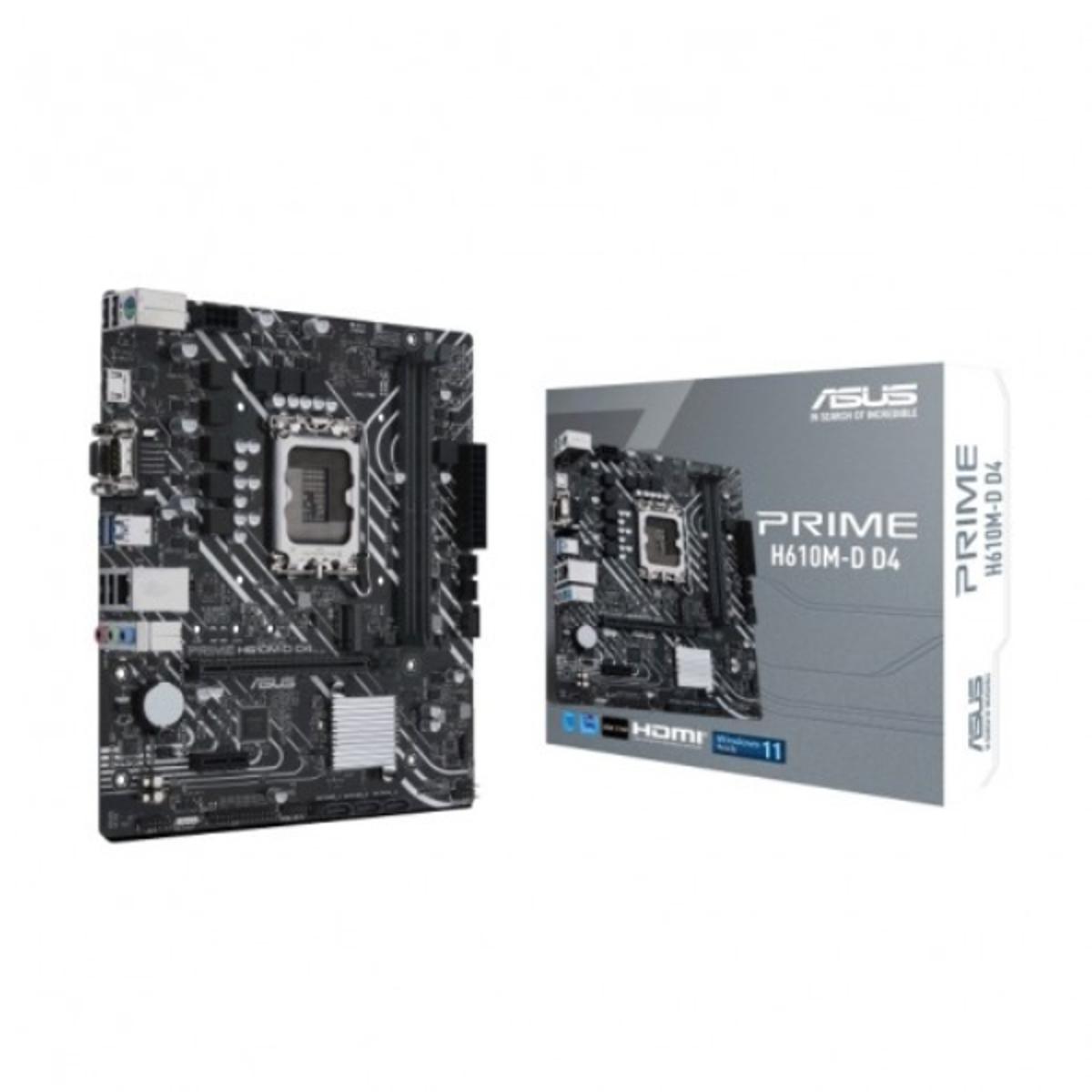

Asus PRIME H610M-D D4 Intel 12th Gen MicroATX Motherboard

Name: Asus PRIME H610M-D D4 Intel 12th Gen MicroATX Motherboard
SKU: JACO712135
Price: 15670.00 BDT
Availability: InStock

Category: Computers, Components & Accessories

SKU: JACO712135

Seller: Janani Computers

App Coupon to Get Extra Discount

Tk 15,670

0 review(s)

Asus PRIME H610M-D D4 Intel 12th Gen MicroATX Motherboard

LGA1700 CPU Socket
64 GB Max Memory
Supports 12th Gen Intel Core Series Processors
3-years Official Brand Warranty

Call For Order : 09613-800800

Specifications
Brand: ASUS
Series: PRIME H610M-D
Model: H610M-D
Chipset: Intel H610
CPU: Intel Core Socket LGA1700 12th Gen , Pentium Gold and Celeron processors
Memory Channels: Dual Channel
Max Memory: 64GB
Memory slots: 2 x DIMM
Supported Memory: 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133
Bios: 128 Mb Flash ROM, UEFI AMI BIOS
HDMI: 1 x HDMI
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback
D-Sub Port: 1 x D-Sub port
Expansion Slots:-
Intel 12th Gen Processors
1 x PCIe 4.0 x 16 slot
Intel B660 Chipset
1 x PCIe 3.0 x1 slot
Storage:
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Back Panel I/O Ports:-
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
USB:-
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Cables: 2 SATA 6Gb/s cables
Form Factor: microATX 24.4cm x 21.1cm
Warranty: 3 Years Brand Warranty

Asus PRIME H610M-D D4 Intel 12th Gen MicroATX Motherboard

LGA1700 CPU Socket
64 GB Max Memory
Supports 12th Gen Intel Core Series Processors
3-years Official Brand Warranty

Warranty: 3 Years warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
