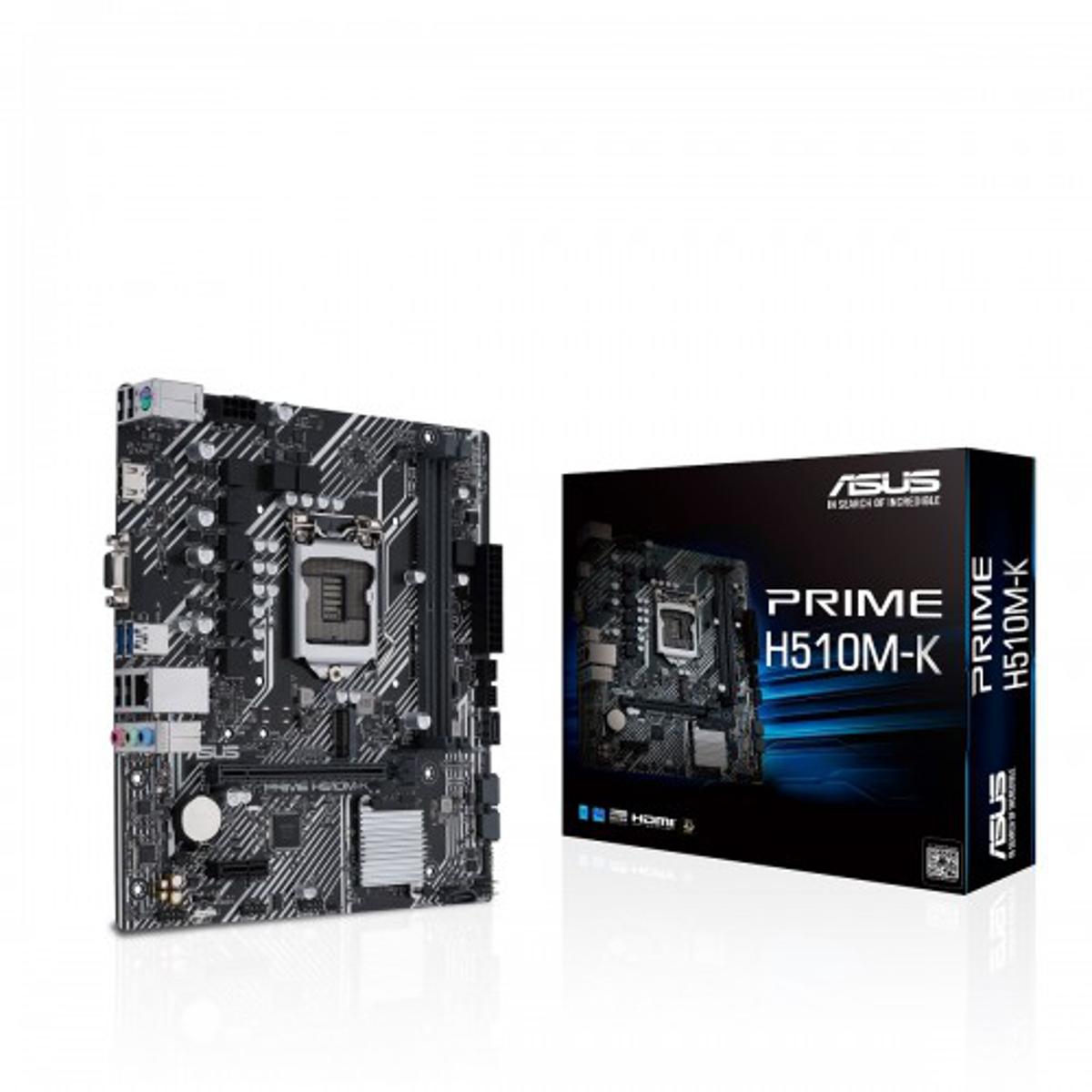

ASUS PRIME H510M-K Micro ATX 10th & 11th Gen Motherboard

Name: ASUS PRIME H510M-K Micro ATX 10th & 11th Gen Motherboard
SKU: JACO712134
Price: 14560.00 BDT
Availability: InStock

Category: Computers, Components & Accessories

SKU: JACO712134

Seller: Janani Computers

App Coupon to Get Extra Discount

Tk 14,560

0 review(s)

ASUS PRIME H510M-K Micro ATX 10th & 11th Gen Motherboard

Model: PRIME H510M-D
Intel LGA 1200 socket: 11th and 10th Gen Processors
PCIe 4.0, 32Gbps M.2, 1Gb Ethernet & USB 3.2 Gen 1
5X Protection III, LPT header & RGB header
PCH heatsink and Fan Xpert

Call For Order : 09613-800800

Specifications:

MOTHERBOARD
Supported CPUIntel Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron Processors* Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
ChipsetIntel H510 Chipset
MemoryDDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics1 x D-Sub 1 x HDMI 1.4 / 2.0
SlotsIntel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 -Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 1 x PCIe 3.0 x1 slot
Supported StorageSupports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H510 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
LAN1 x Intel® I219-V 1Gb Ethernet ASUS LANGuard
AudioRealtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback"
USB PortRear USB:Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB:Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Internal I/O Ports2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI™ port 1 x Intel I219-V 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
External I/O Ports2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Intel I219-V 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
DIMENSIONS10.79 x 10.31 x 2.05 inches
Form FactormATX Form Factor 22.6cm x 20.3cm
BIOS128 Mb Flash ROM, UEFI AMI BIOS
HDMIHDMI™ 2.0 with max. resolution of4K@60Hz, others will only support HDMI™ 1.4 with max.
OthersASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header
Warranty3 Years

ASUS PRIME H510M-K Micro ATX 10th & 11th Gen Motherboard

Model: PRIME H510M-D
Intel LGA 1200 socket: 11th and 10th Gen Processors
PCIe 4.0, 32Gbps M.2, 1Gb Ethernet & USB 3.2 Gen 1
5X Protection III, LPT header & RGB header
PCH heatsink and Fan Xpert

Warranty: 3 Years warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
