Specification-

CPU:

Chipset:

Memory:Dual Channel MemoryDDR4 5000(OC)

Onboard Graphics:

Audio:

Audio Feature :

-Premium Japanese audio capacitors

- Audio Shielding

- Dedicated audio PCB layers

LAN:

Wireless Data Network:M.2 slot only (Key E)

Expansion Slots-

Intel 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

- Intel 11th Gen processors support PCIe 4.0 x16

- Intel 10th Gen processors support PCIe 3.0 x16

Intel B560 Chipset

2 x PCIe 3.0 x1 slots

Storage Interface-

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

USB Ports

Rear USB:Total 6 ports

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 6 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers supports additional 4 USB 2.0 ports

Internal I/O Connectors:

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Speaker header

1 x 10-1 pin System Panel header

Back Panel Connectors:

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x D-Sub port

1 x HDMITM port

3 x Audio jacks

1 x Realtek 1Gb Ethernet port

1 x PS/2 Keyboard/Mouse combo port

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS

ASUS Special Features:

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

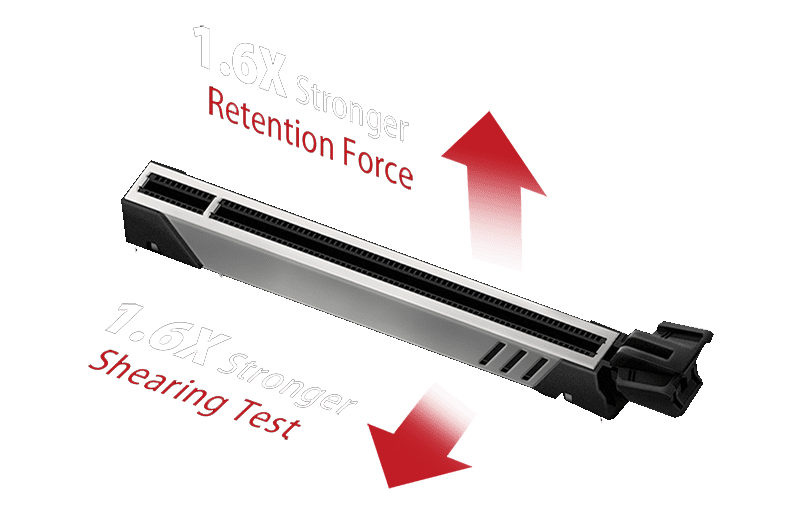

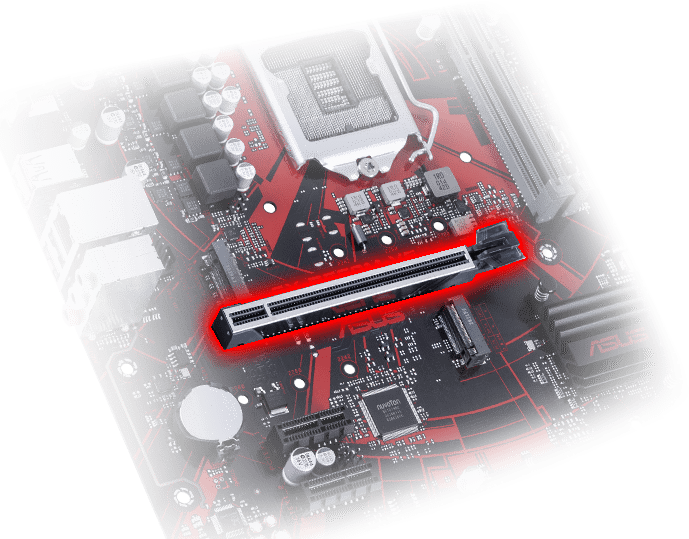

- SafeSlot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

Non-stop Challenger

- ASUS iCafe labs certified

Non-stop Durability

- Luminous anti-moisture coating

- USBGuard

Form Factor:

Origin Of Country:

Made in:

Warranty:

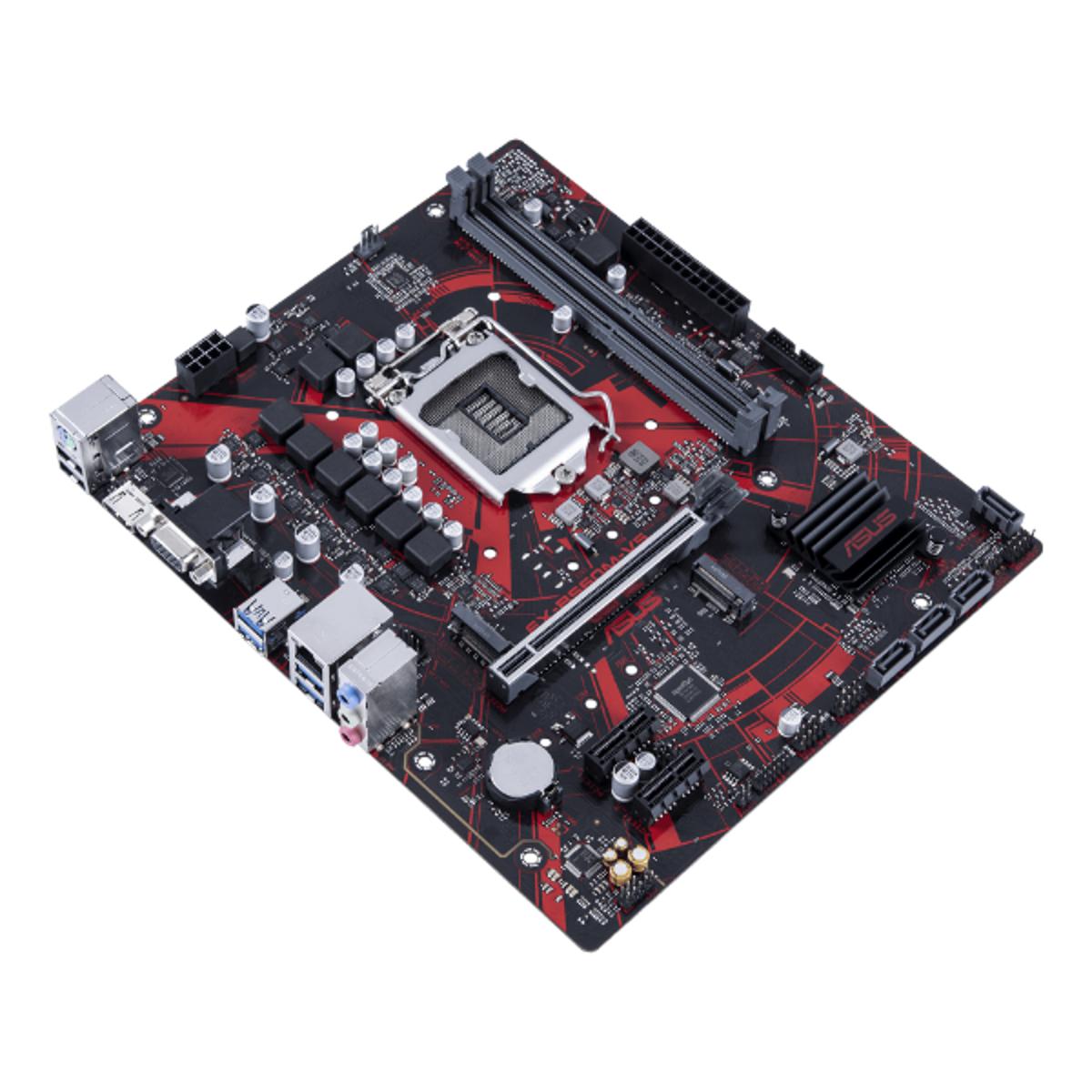

ASUS EX-B560M-V5 Intel 11th & 10th Generation mATX Motherboard

• Processor: Intel 11th & 10th Generation processors
• Chipset: B560
• Realtek 1Gb Ethernet Ethernet
• DDR4 5000 (OC)
• Warranty: 3 Years

Warranty: 3 Years warranty.
