Specification-

CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors

Chipset: Intel B460

Memory: 2 x DIMM, Max. 64GB, DDR4 2933

Onboard Graphics:

Multi-VGA output support : HDMI/D-Sub ports

- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz

- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

Audio:

Audio Feature :

-Premium Japanese audio capacitors

- Audio Shielding

- Dedicated audio PCB layers

LAN:Realtek RTL8111H,TUF LANGuard

Expansion Slots-

Intel 10th Gen Processors

1 x PCIe 3.0/2.0 x16

Intel B460 Chipset

2 x PCIe 3.0 x1

Storage Interface-

Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports

Intel B460 Chipset :

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

4 x SATA 6Gb/s port(s),

USB Ports

Rear USB Port ( Total 6 )

4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)

2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6 )

2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)

4 x USB 2.0 port(s)(4 x Type-A)

Internal I/O Connectors:

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x AAFP connector

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)

4 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel connector(s)

1 x COM Debug header

1 x Clear CMOS jumper(s)

1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

Back Panel Connectors:

1 x PS/2 keyboard/mouse combo port(s)

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

4 x USB 3.2 Gen 1 (blue) Type-A

2 x USB 2.0

3 x Audio jack(s)

BIOS:

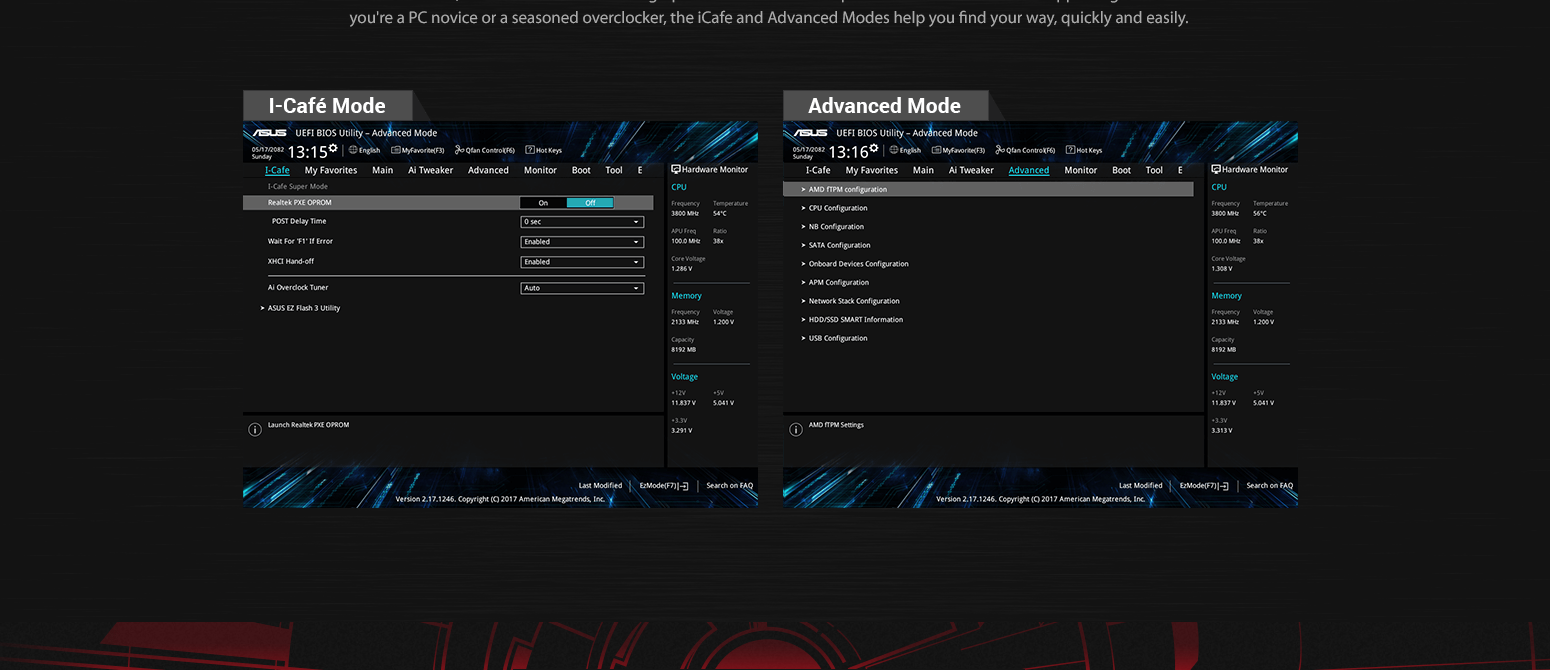

128 Mb Flash ROM, UEFI AMI BIOS

Form Factor:8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm ),mATX Form Factor

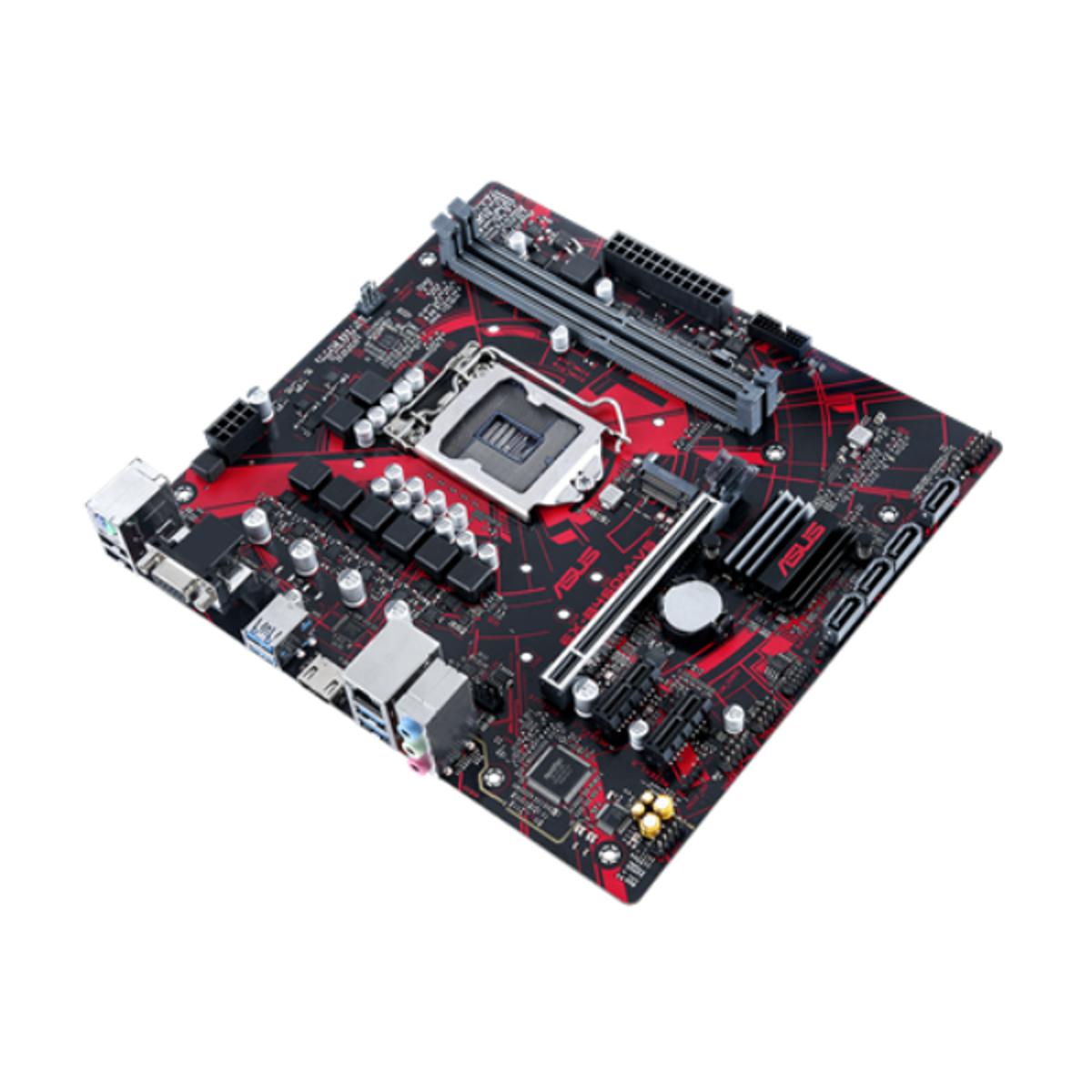

ASUS EX-B460M-V5 Intel 10th Generation mATX Motherboard

• • Processor: Intel Socket 1200 for 10th Gen Intel Core
• • Chipset: Intel B460
• • LAN: Realtek RTL8111H
• • RAM: 2 x DIMM, Max. 64GB, DDR4 2933

Warranty: 3 Years warranty.
