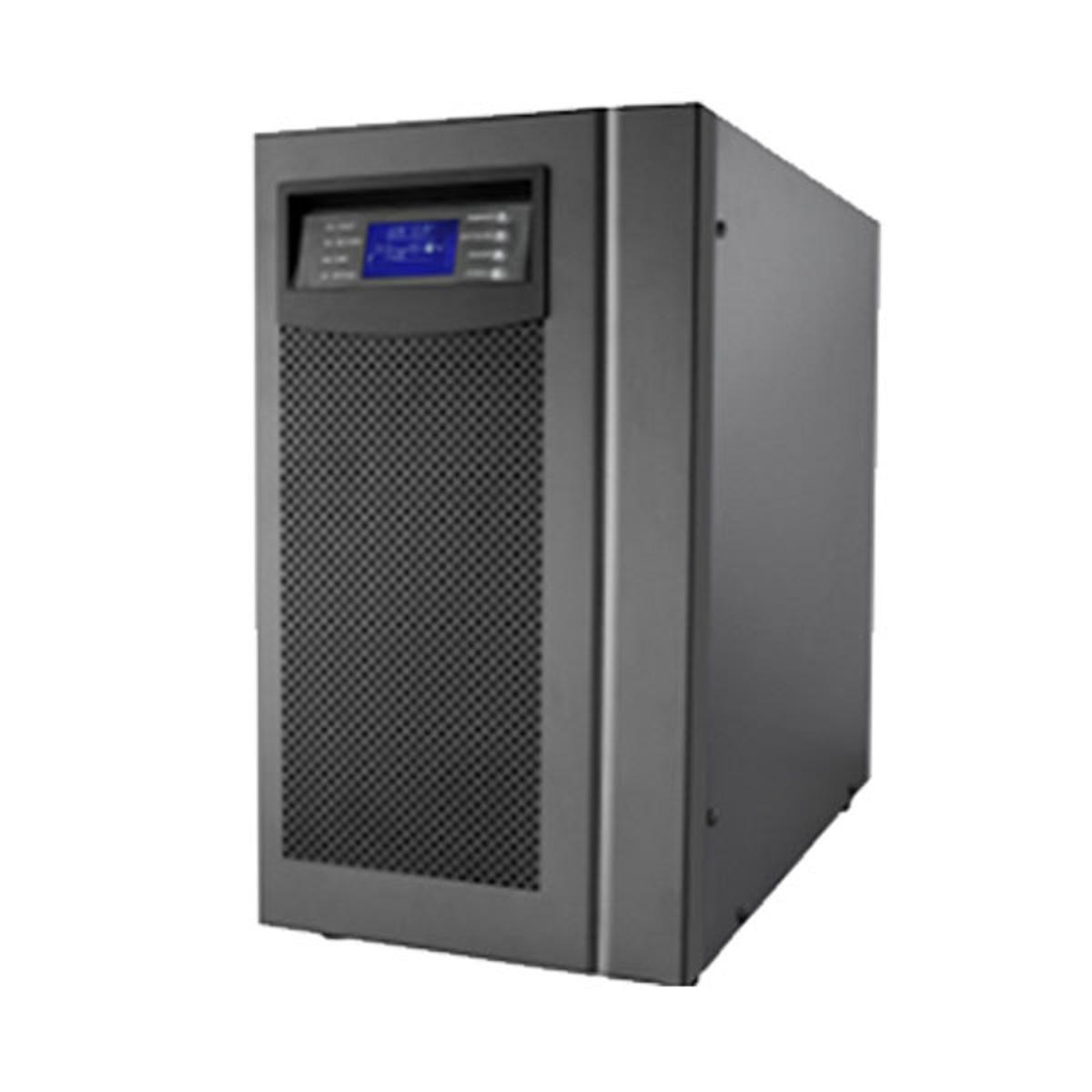

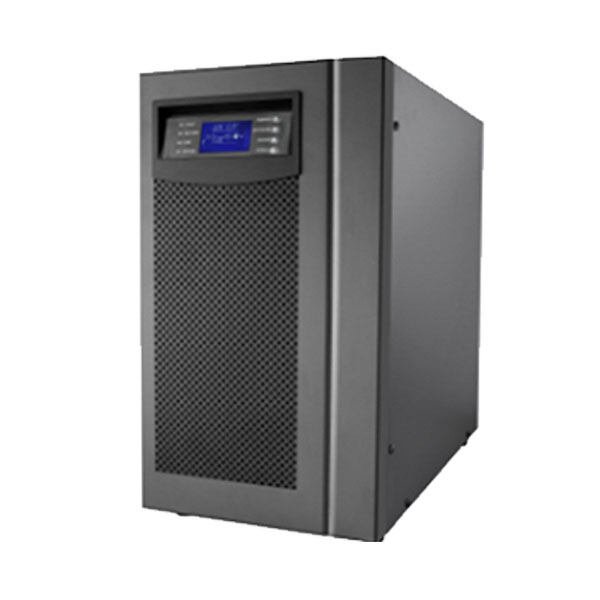

apollo 2B6K-L 6000VA Single Phase Online UPS

•  Apollo: 2B6K-L
• Rated Power: 6KVA/4.2kW
• Nominal Voltage: 220VAC
• Voltage Range: 176～276VAC
• Frequency Range: 46～54Hz(default),user adjustable within 40～60Hz
• Power Factor: 0.97
• Voltage: 220VAC±1%
• Frequency: 46-54Hz±0.2Hz(Line mode) 50Hz±0.2Hz(battery mode)
• Waveform: sine wave
• Distortion: ≤2% under linear load
• Power Factor: 0.7
• Overload capability: 108%~150%for30secends.,±150%for300ms
• Current Crest Ratio: 3:1
• Type: Sealed, Maintenance free, Lead-Acid
• Recharge Time: 8hrs to90%of capacity after full load discharge
• Automatic Transfer: on overload and UPS failure
• Before UPS power-on: Default “NO”, user adjustable to “YES”
• Transfer time: 0ms;less than 4 ms from inverter to bypass and vice versa
• status: load level/Battery level, Battery, Utility power, Inverter, Bypass, Overload, Fault
• Audible Alarm: Bypass, ON battery mode, Battery low, Overload, Fault
• Acoustic Noise
• At 1 meter distance: 55 dBA
• DB-9Port: RS-232 Serial Interface
• Intelligent Slot: Options;Webpowet,As400 Card or WinPower CMC
• Operating Temperature: 0-40℃
• Operating Humidity: 20～90% non-condensing
• Weight: 90/35
• Dimensions: 260*570*717

Warranty: 1 Year warranty.
