Description

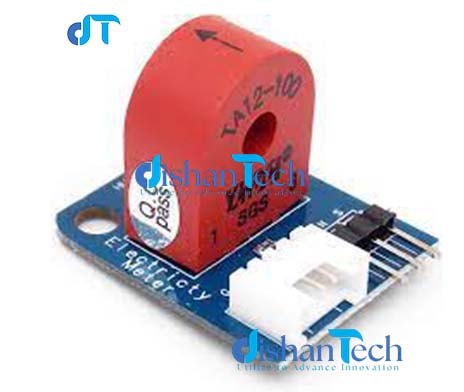

This electricity sensor is based on TA12-100 current transformer, which can transform AC signals of large current into small amplitude signals. The maximum current that can be detected can reach 5A, and the present current signal can be read via analog I / O port.

It has Onboard sampling resistor and precision microcurrent transformer do accurate sampling for the signal and appropriate compensation, and other functions. The module can measure within 5A current communication, corresponding to output analog quantity can be adjusted.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Features :

1. Onboard precision microcurrent transformer.
2. Onboard sampling resistor.
3. The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA.
4. Type: Sensor Brick
5. Interface:3PIN
6. Power Supply:5V
7. Board Size:30 × 24 × 1.6mm
8. Weight:25.00g

Please allow 5% measuring deviation due to manual measurement.

Package Includes :

1 x AC 0~5A Analog Current Meter Module Ammeter Sensor Board
