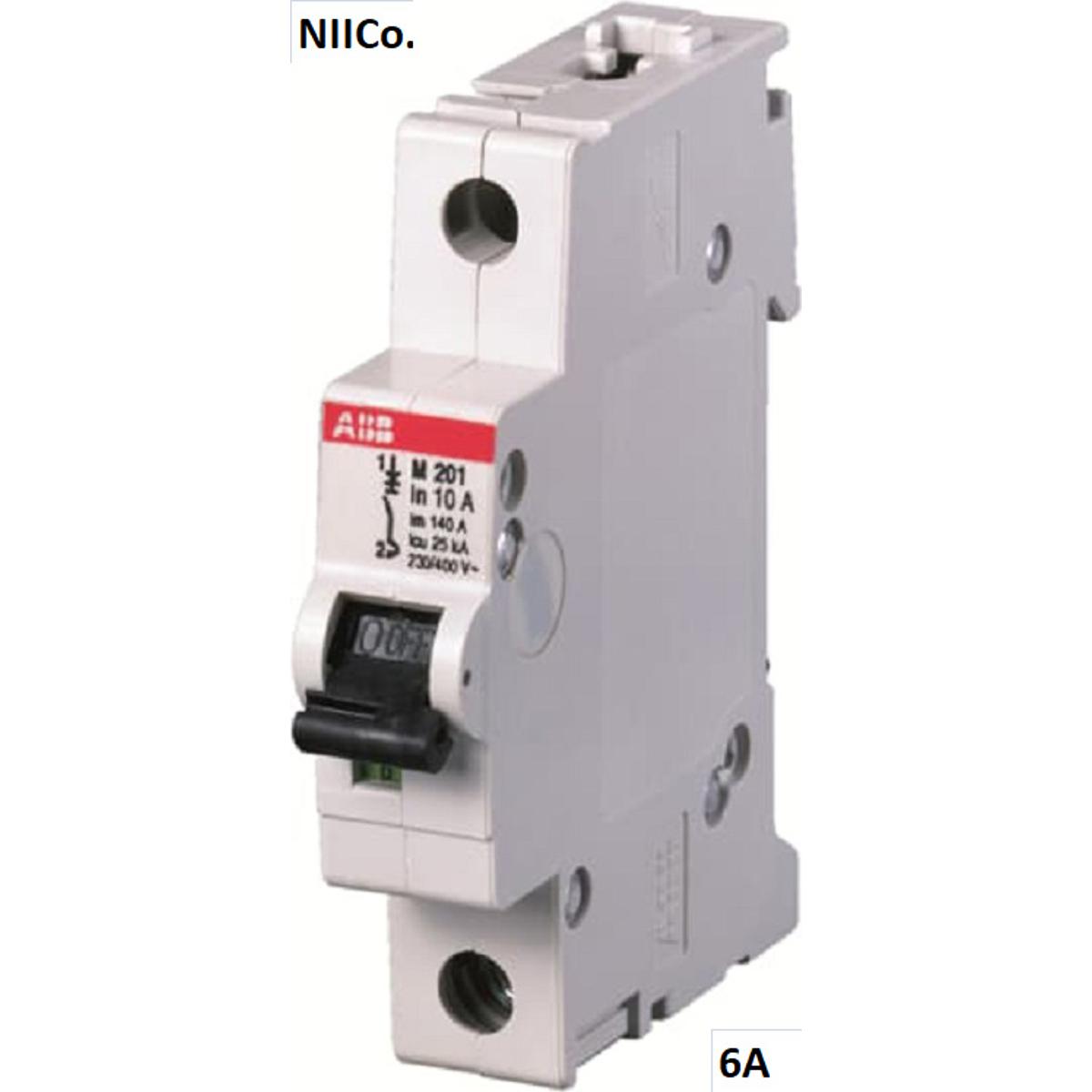

Product Description of ABB Circuit Breaker Heavy Duty - MCB-Single Pole 06A :

• Extended Product Type:M201-6A
• Product ID:2CDA281799R0361
• EAN:4016779614498
• Catalog Description:Miniature Circuit Breaker - M200 - 1P - 6ampere
• Long Description:
  M201- 6,3A Miniature Circuit Breaker OM 6,3A,1P

• Technical

  • Standards:IEC/EN 60947-2
  • Number of Poles:1
  • Number of Protected Poles:1
  • Rated Current (In):6A
  • Rated Operational Voltage:acc. to IEC 60947-2 230 V AC
  • Rated Insulation Voltage (Ui):acc. to IEC/EN 60664-1 440 V
  • Rated Frequency (f):50 Hz60 Hz
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):(230 V AC) 25 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics):(230 V AC) 12.5 kA
  • Overvoltage Category:III

Warranty: 5 Year Warranty
